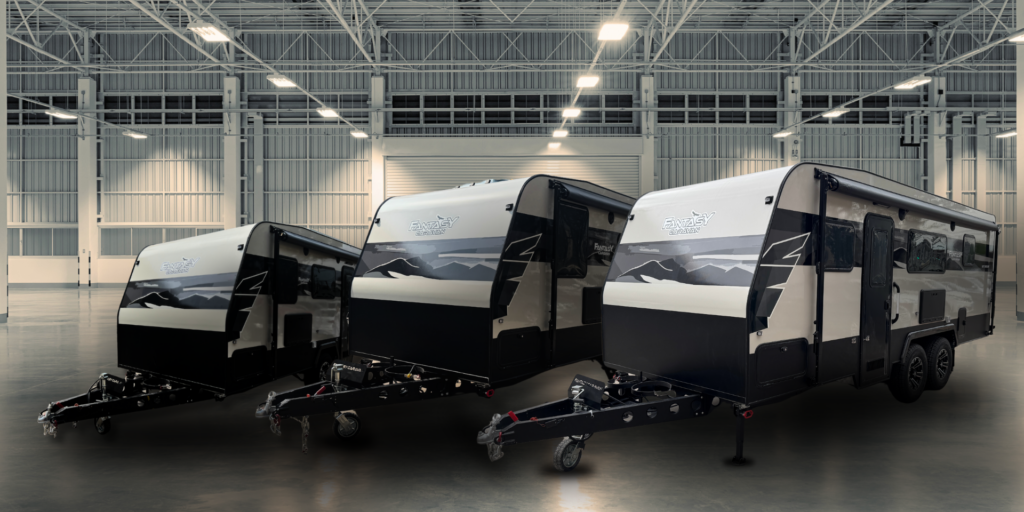

15–22FT SEMI OFF-ROAD CARAVANS
Skyline Series
A smarter way to tour Australia.
Enough caravan to actually live in. Enough capability for the last stretch of gravel. Without paying for the extremes you will never use.
WHY WE BUILD IT THIS WAY
Most caravans ask you to pick a side.
At one end, the price looks good — until you start adding back everything that was left out. At the other, you pay for expedition gear you might use twice. Skyline sits in the middle on purpose — a semi off-road caravan, not an on-road-only van and not an expedition build. Sitting in the middle is not the same as compromising.


01
Liveable by design
Space and comfort that make the day flow.

02
Ready for the road
Capability for the journey beyond the highway.

03
Stay longer, think less
Power and control that keep life moving.

04
Easier to own
Small decisions that reduce daily friction.

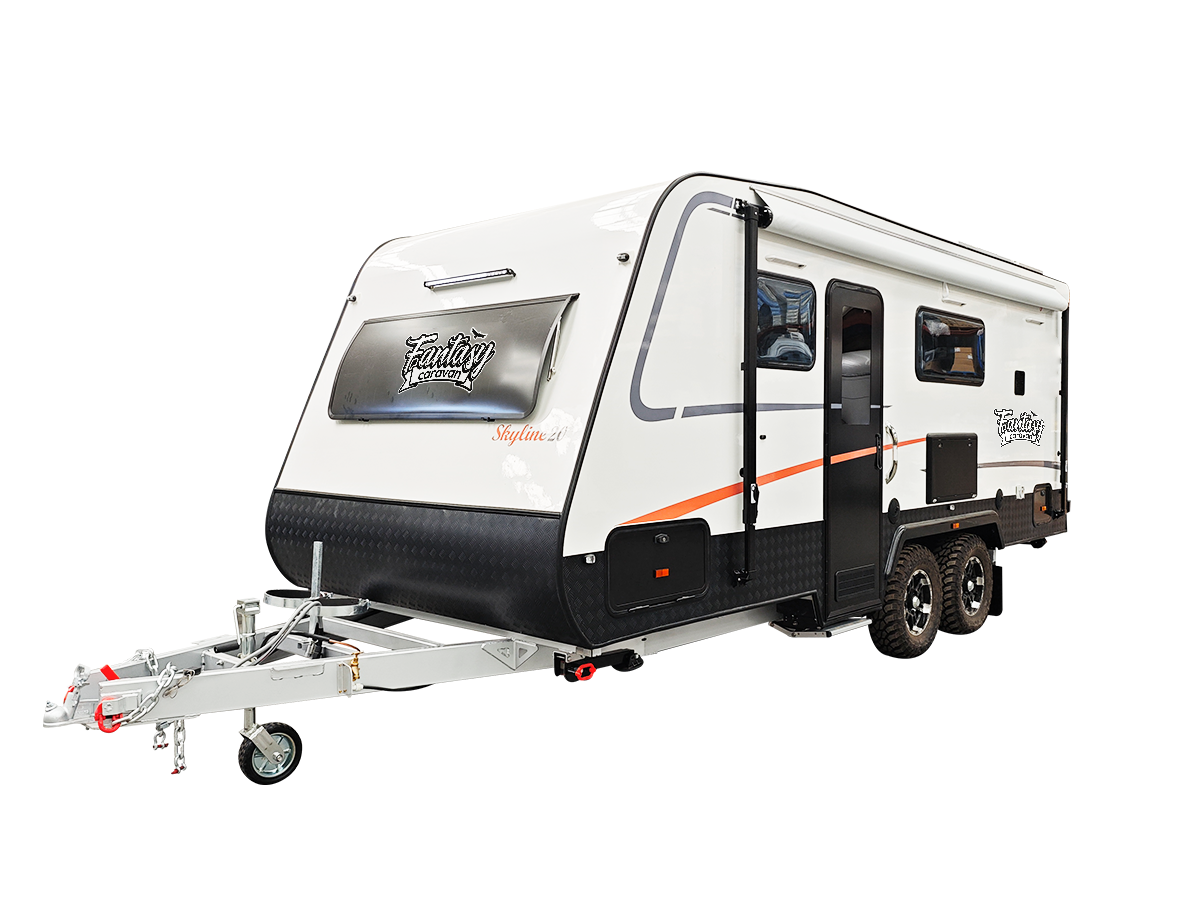

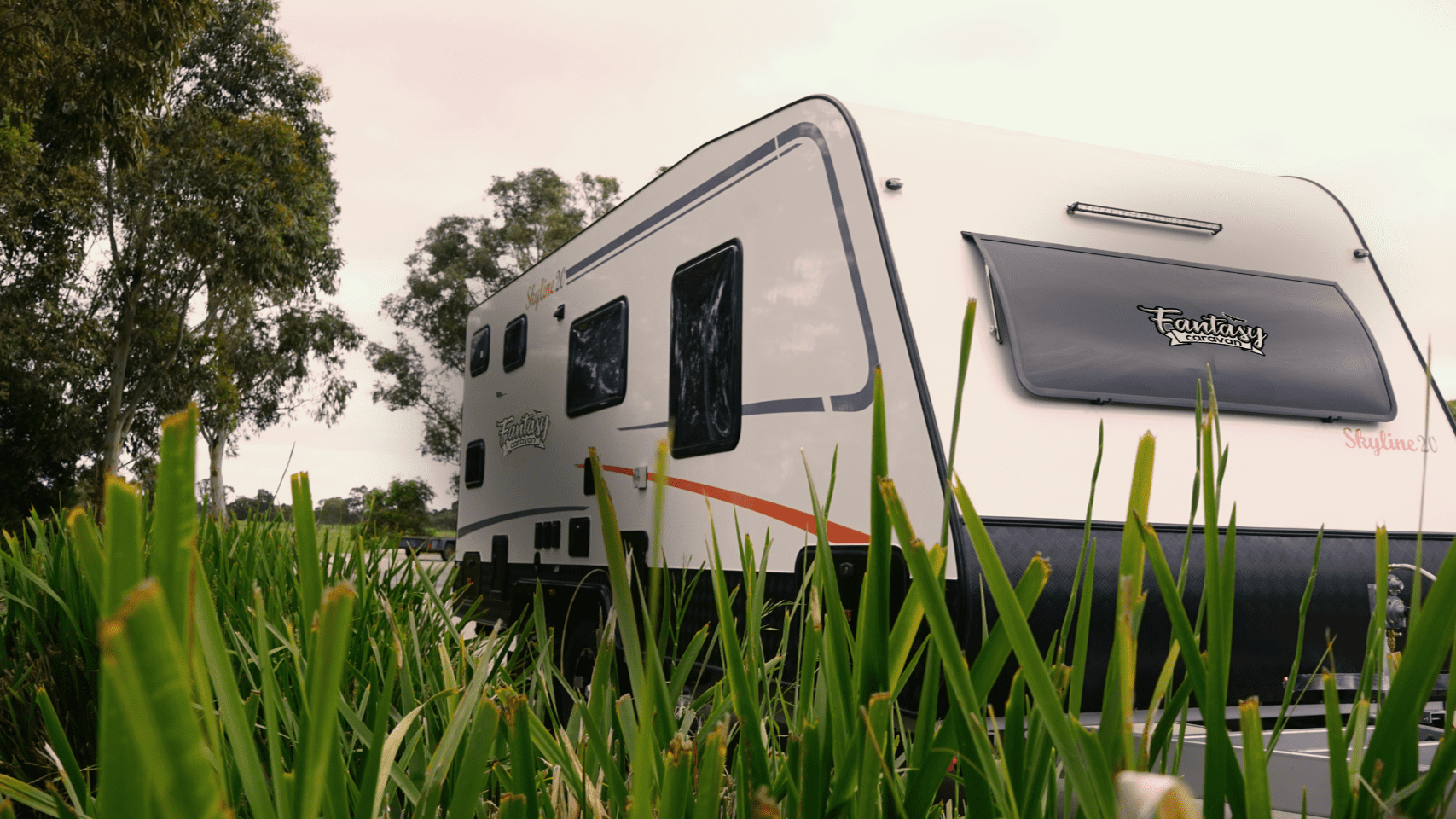

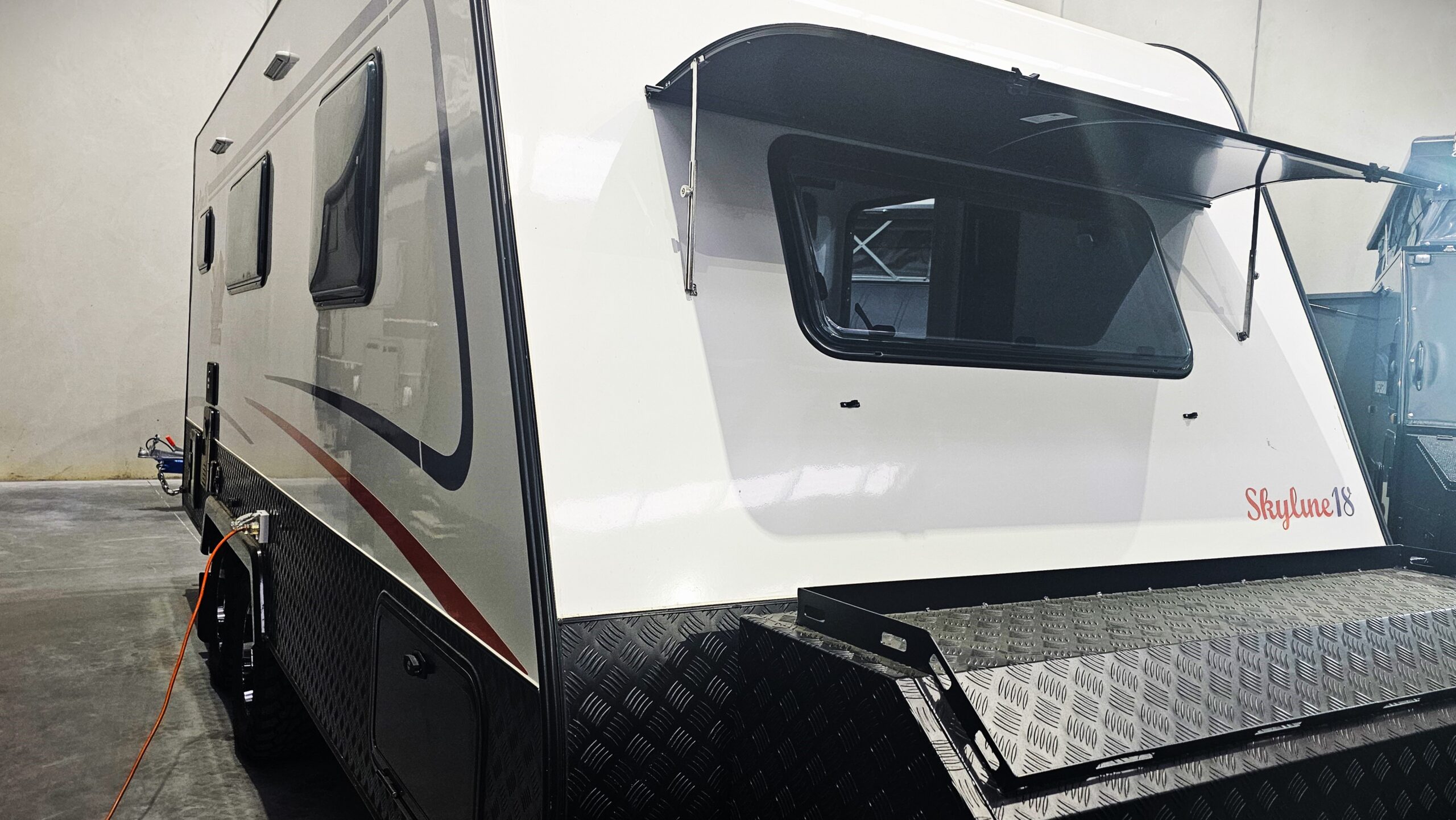

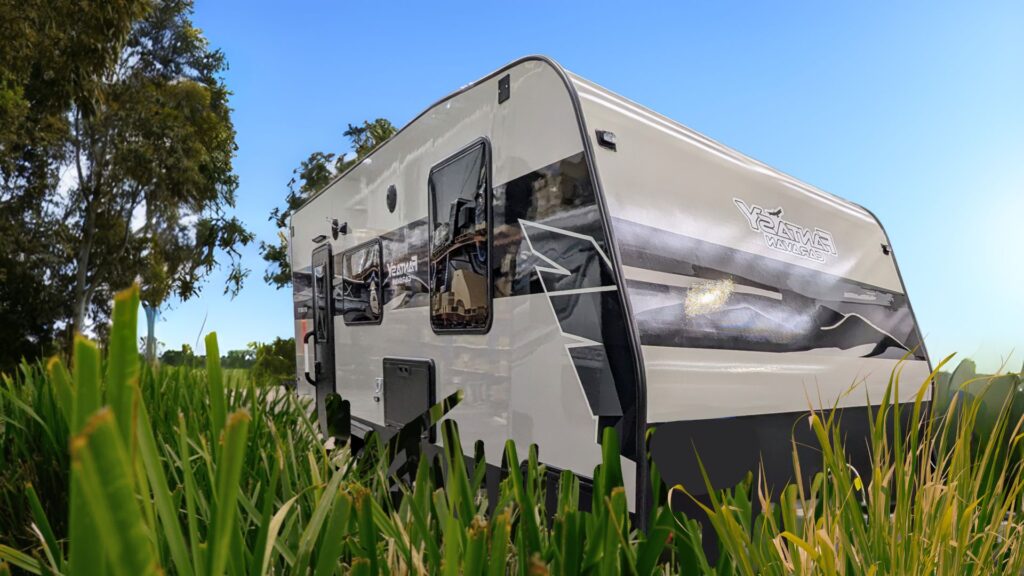

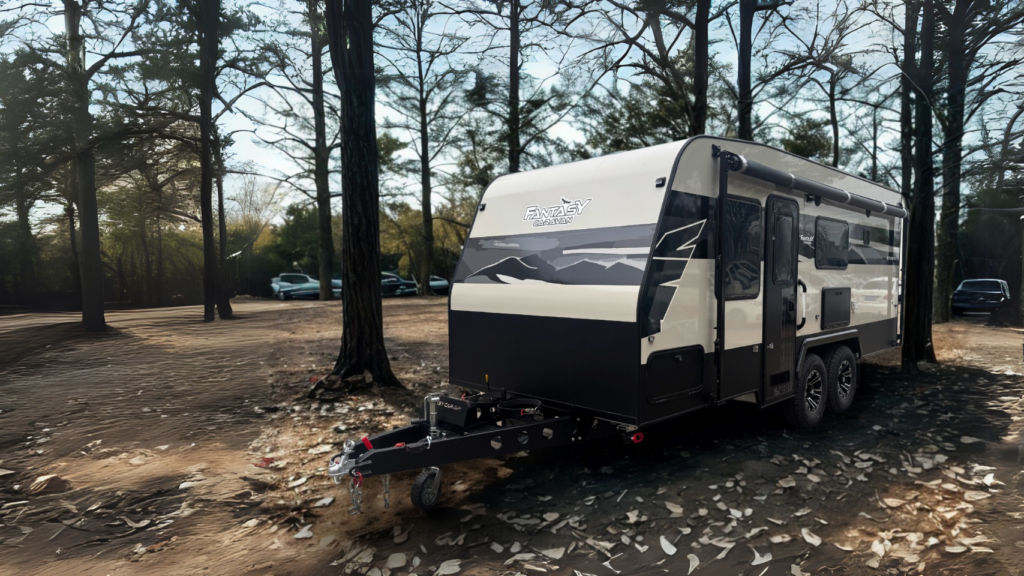

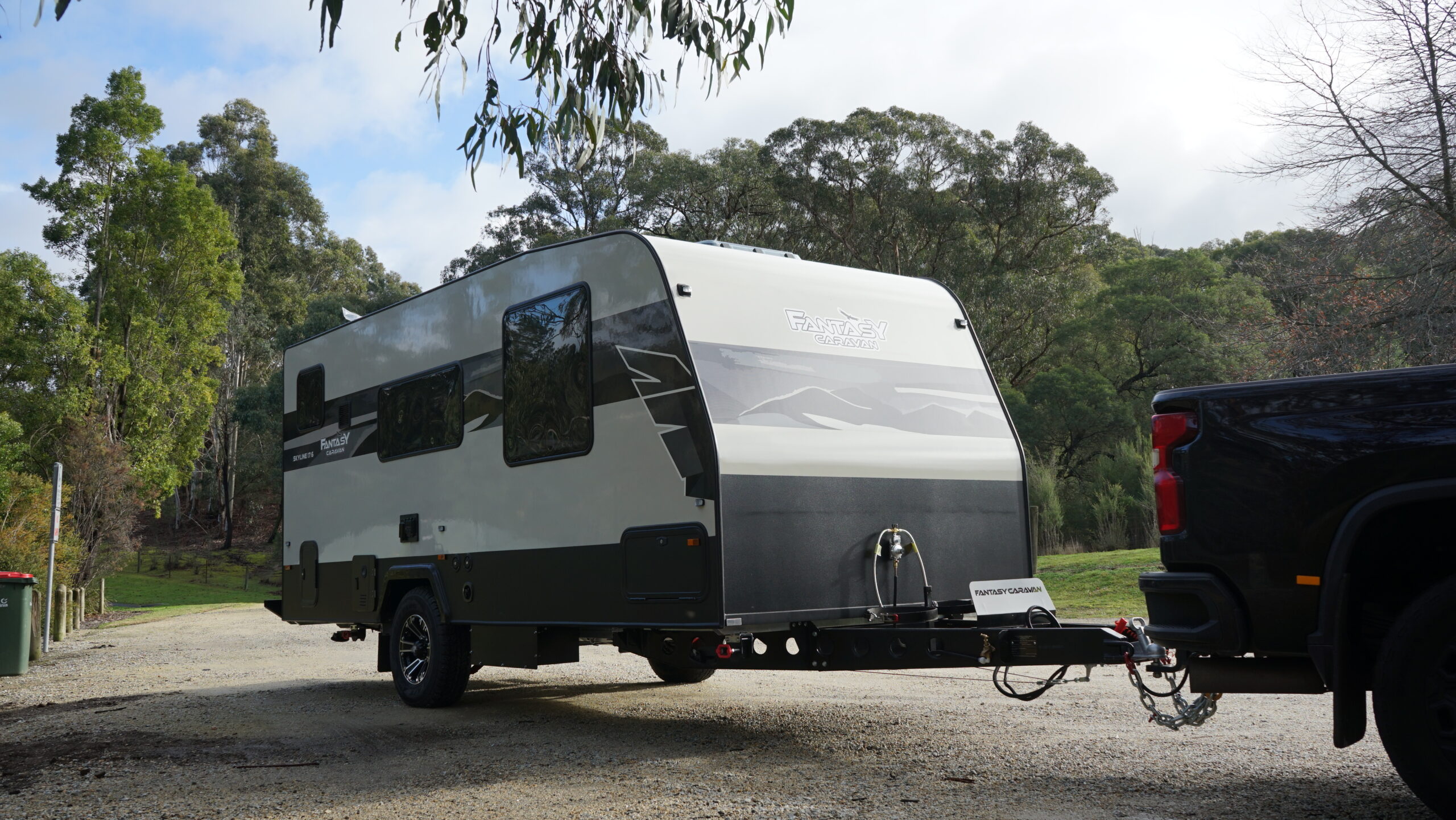

EXTERIOR
You will judge it before you open the door.
A calmer tow, a more capable last stretch, and a caravan that feels ready when you arrive.

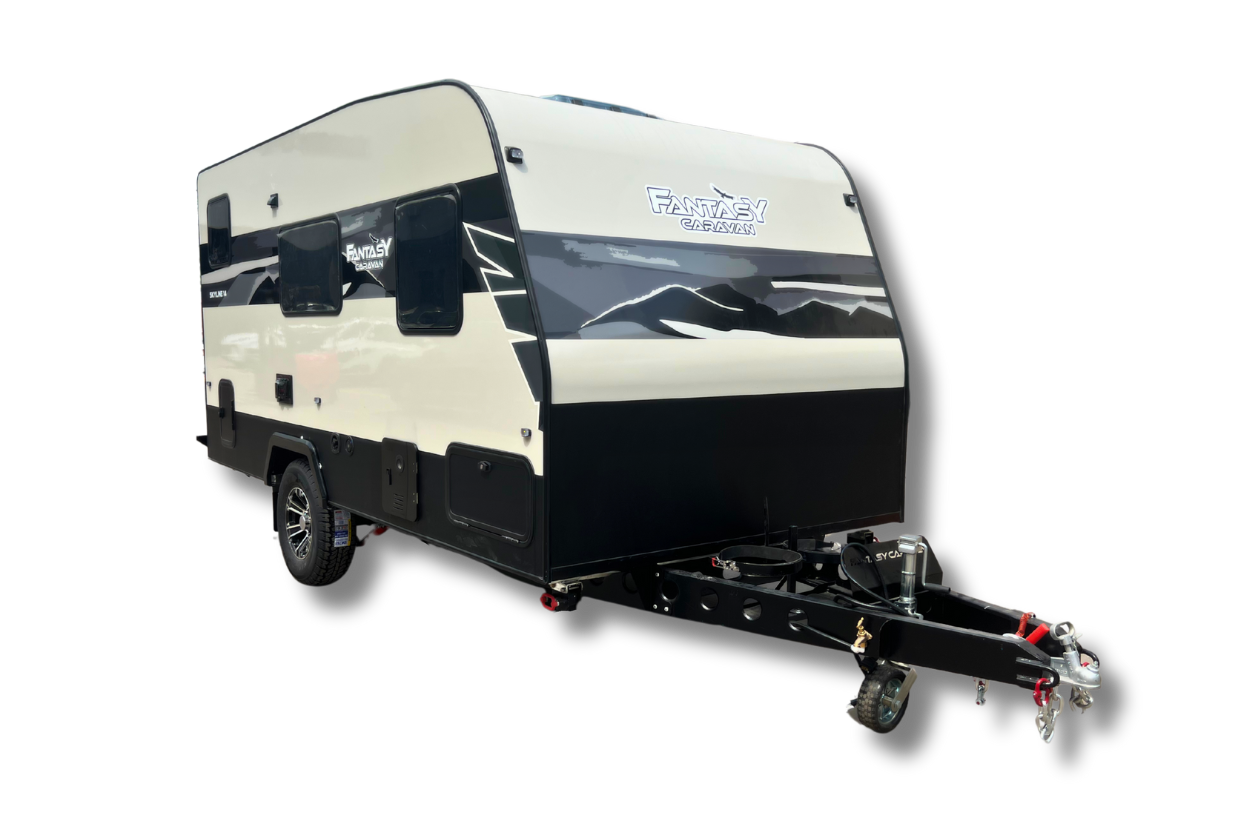

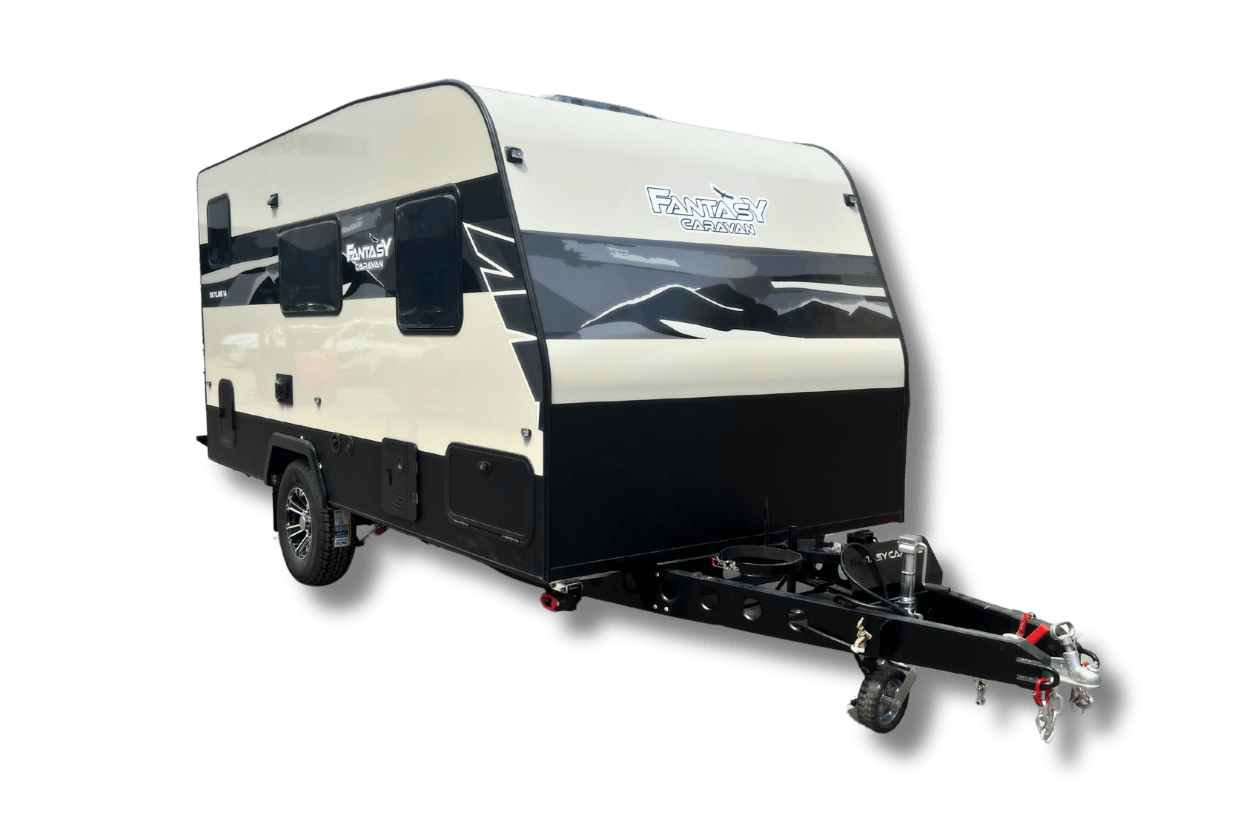

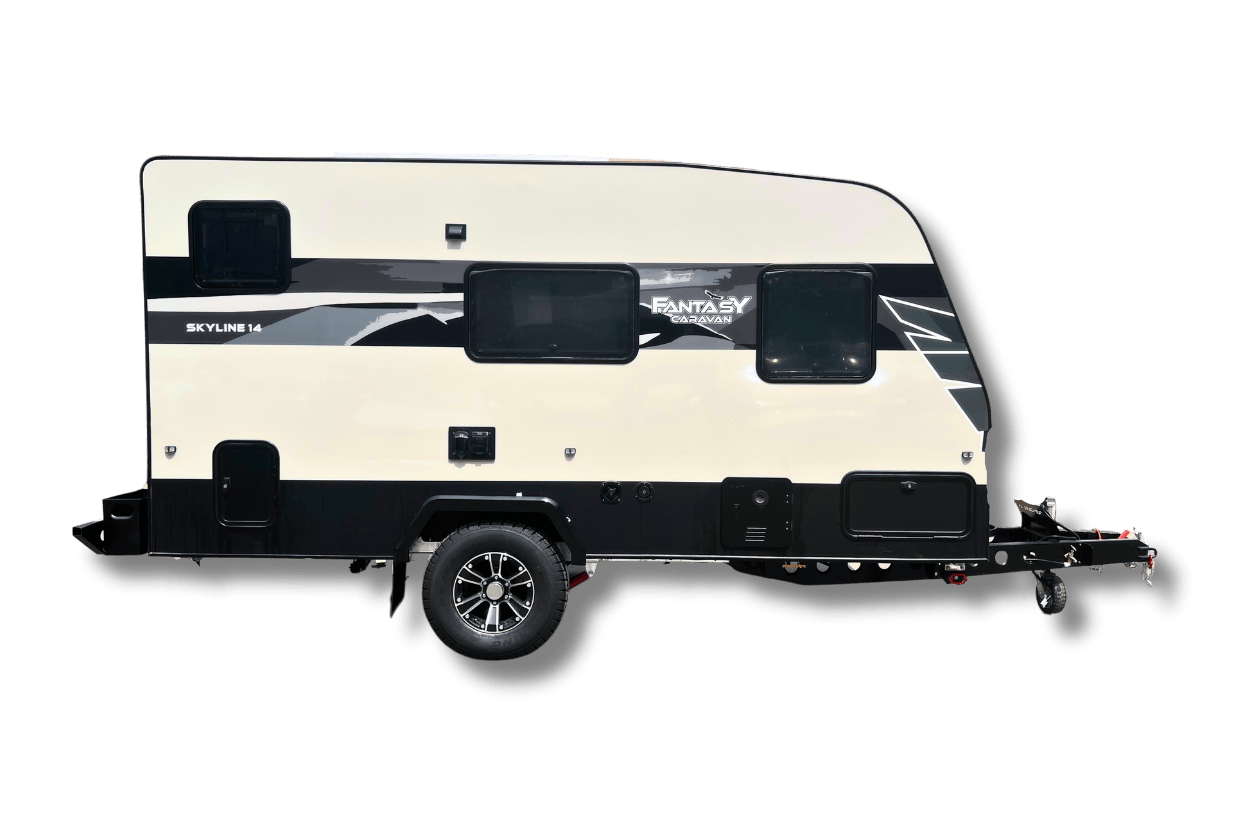

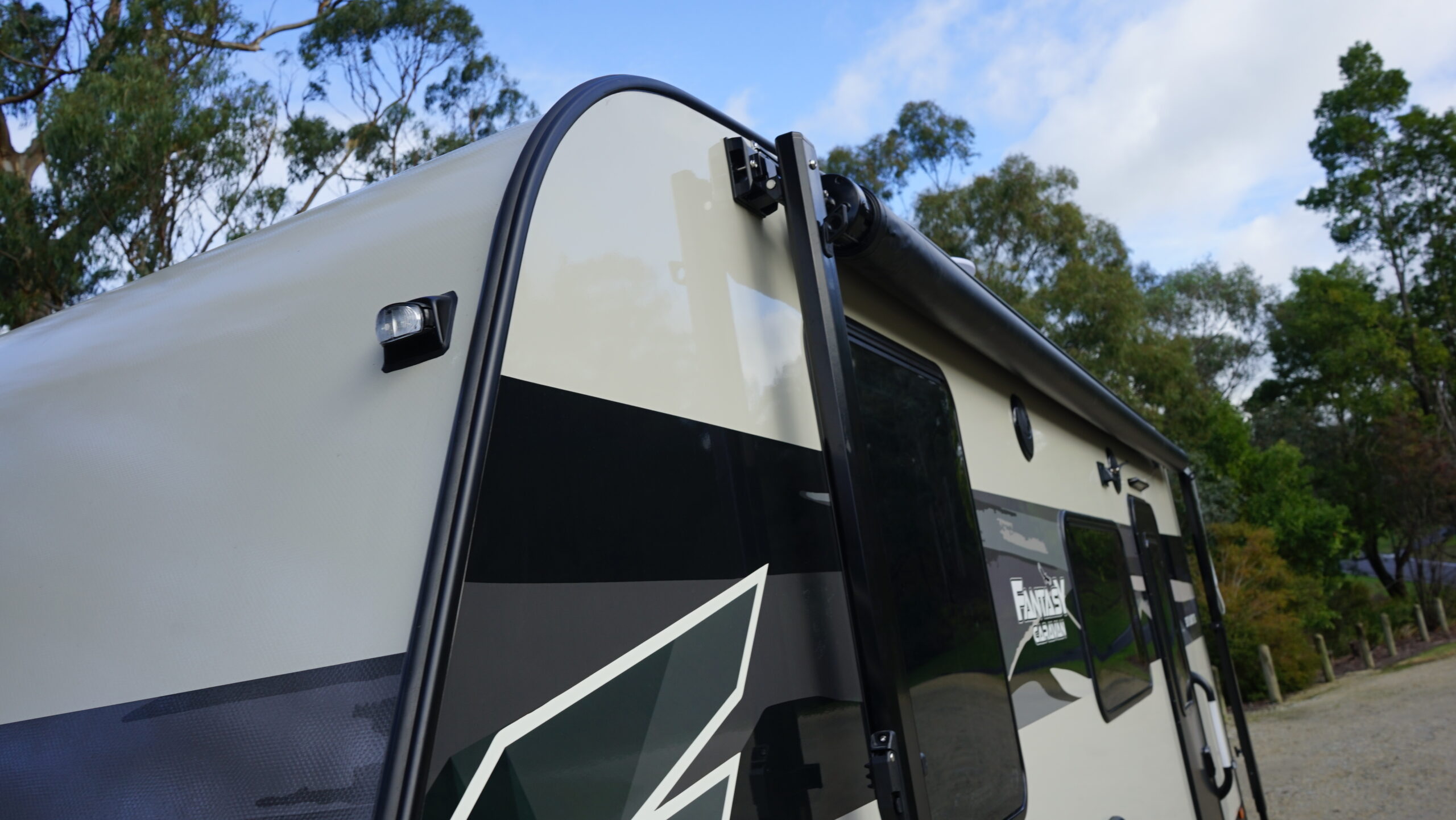

One piece, front to back
Look along the front. There is no seam. The front and rear walls are pressed as single composite panels, leaving fewer exposed joins and helping reduce the long-term risk of water ingress.

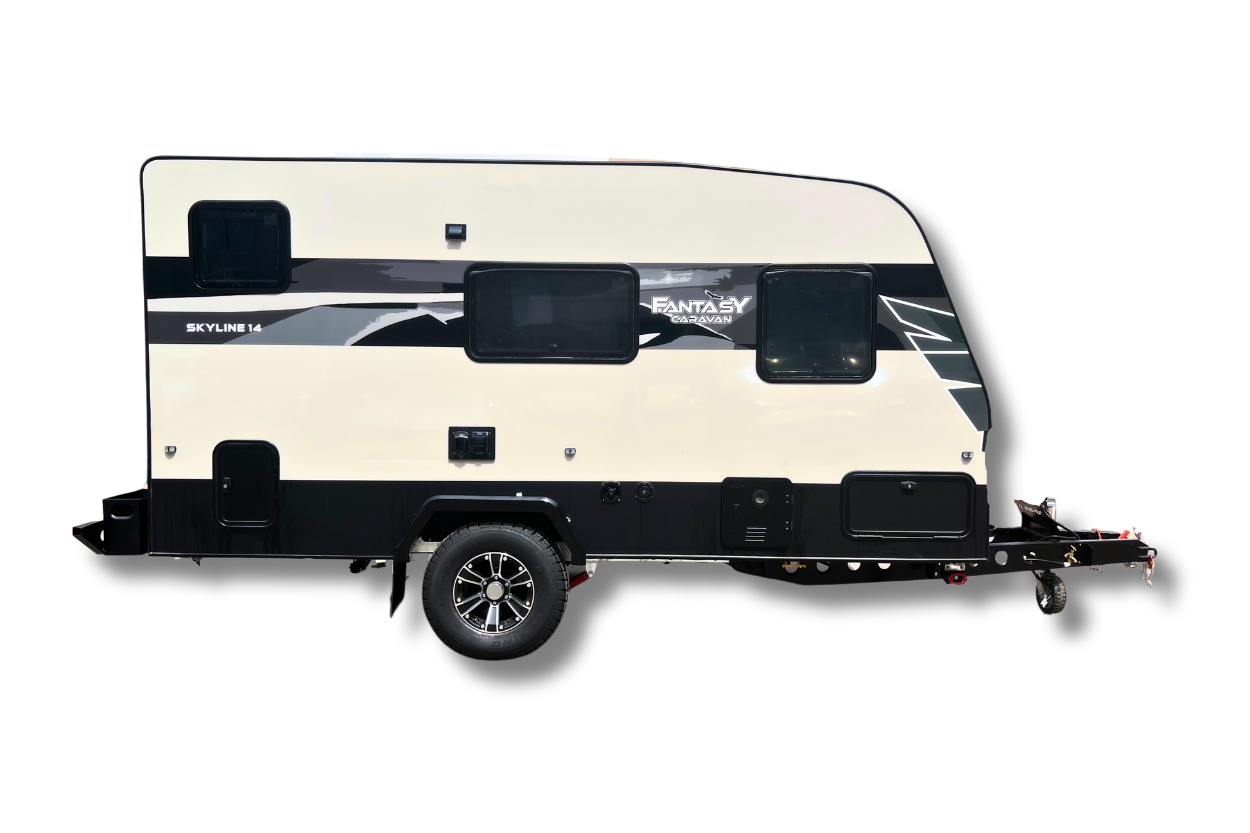

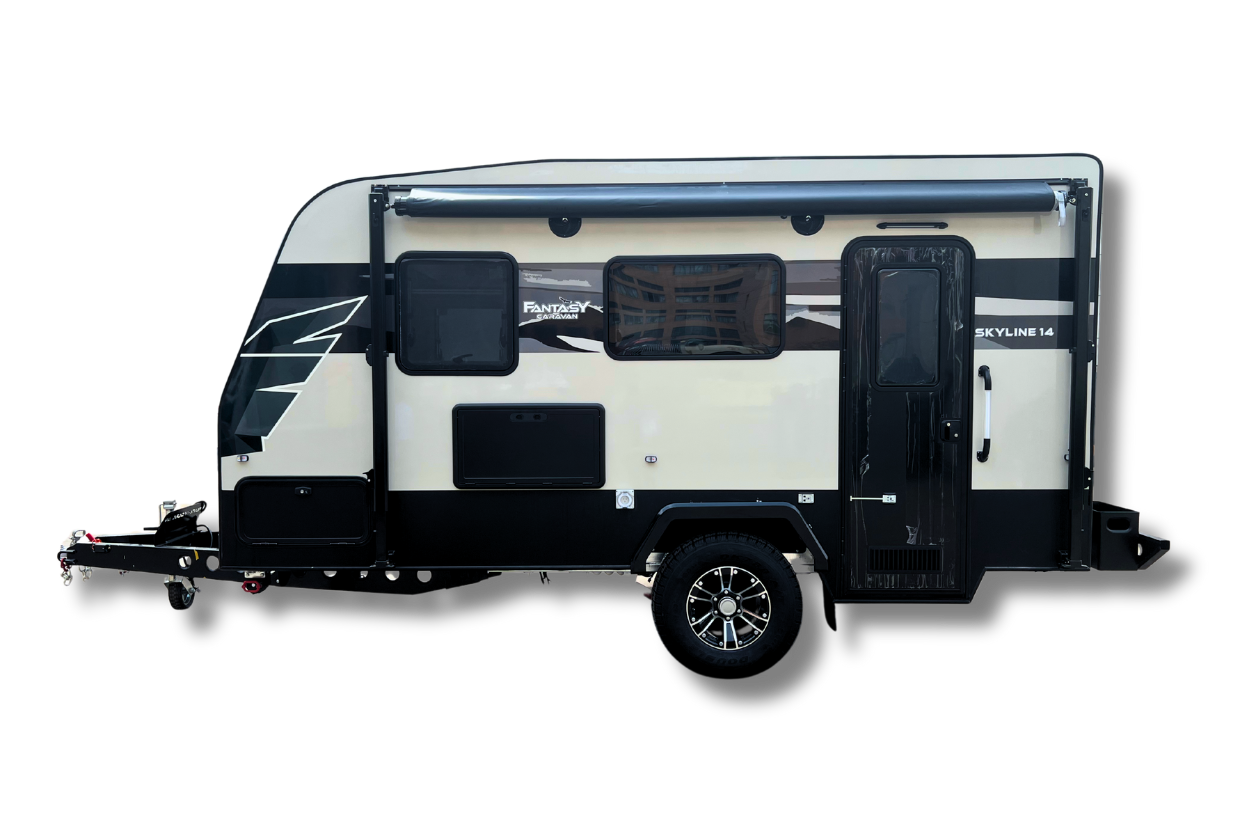

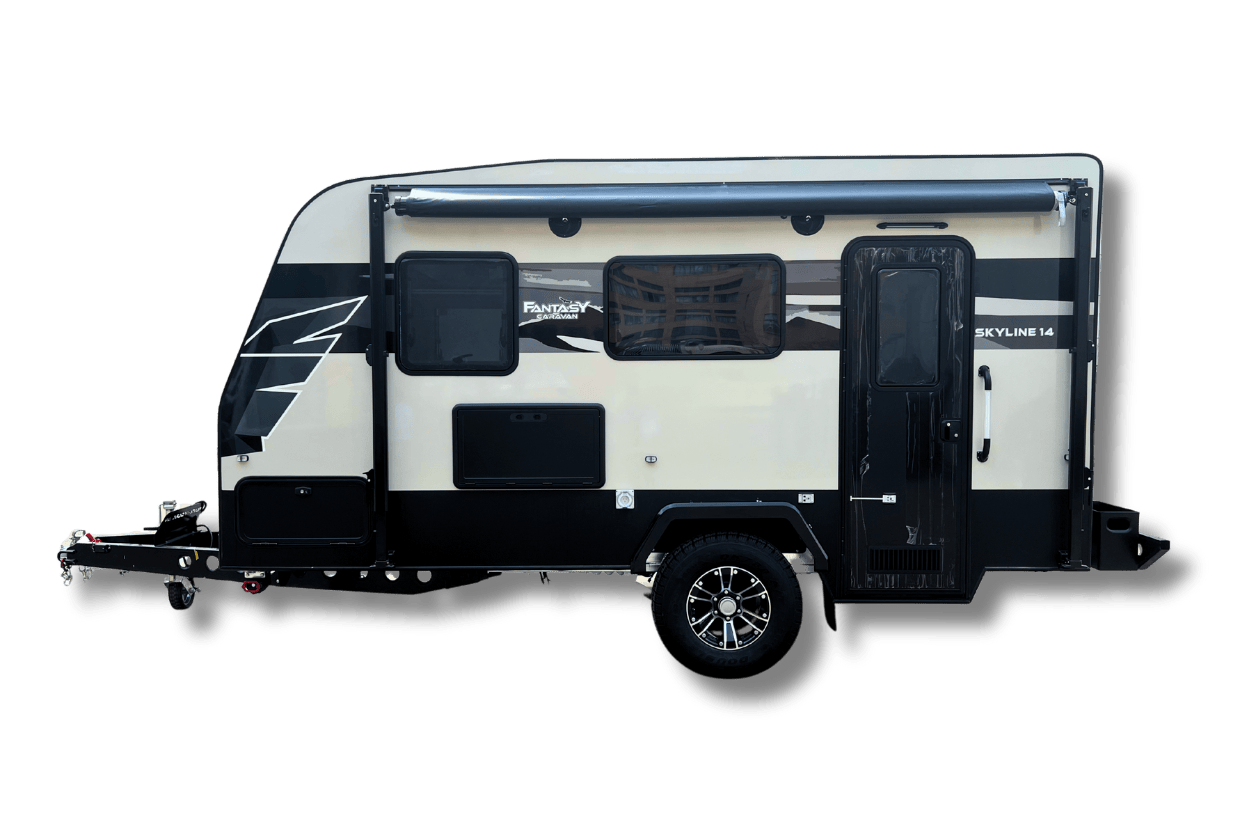

Space where the road narrows
The clean side profile is easier to place when the access road tightens up — between branches, through a narrow gate or onto a compact site. Its smoother shape is also designed to reduce wind resistance when towing at highway speed.

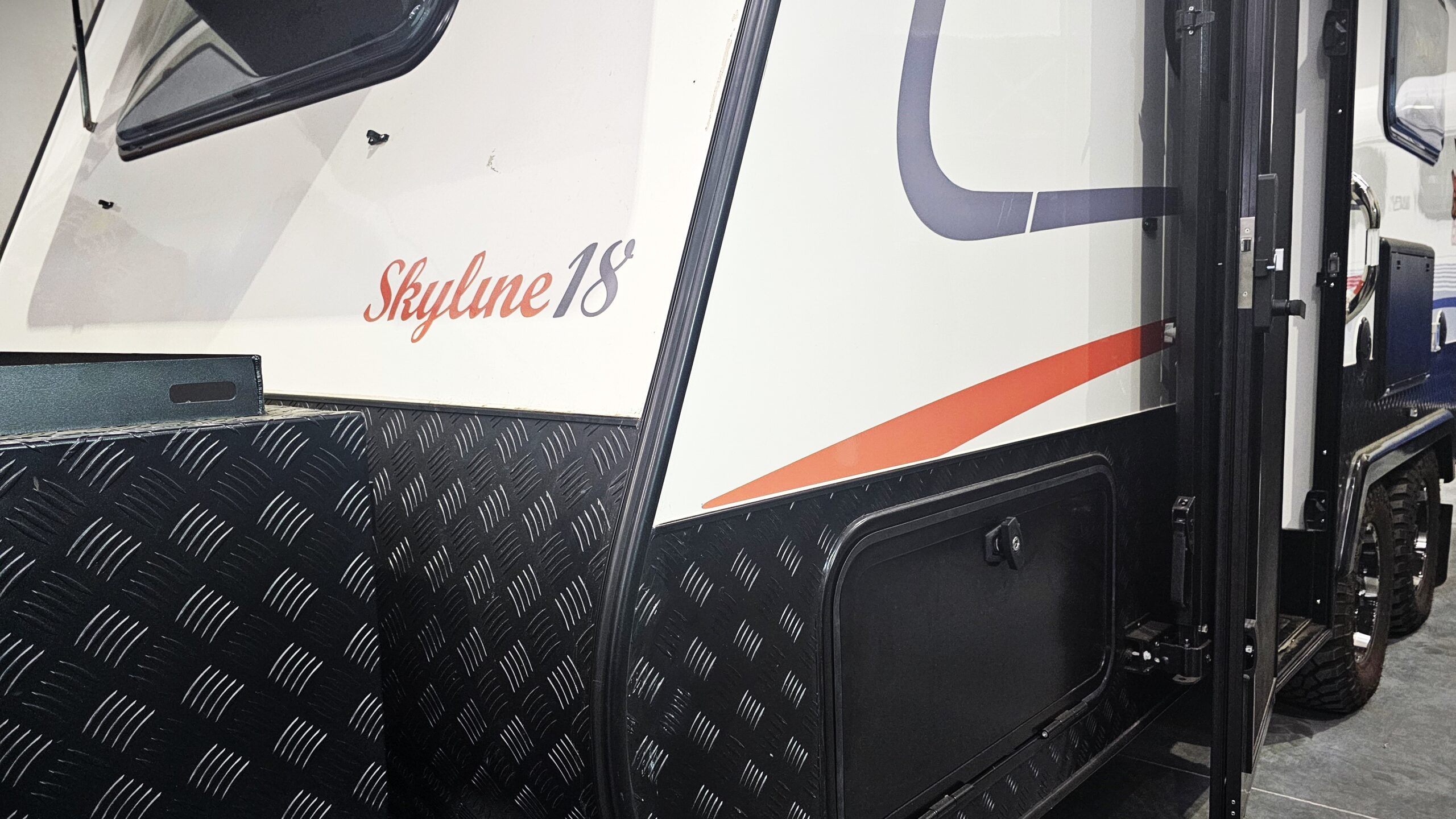

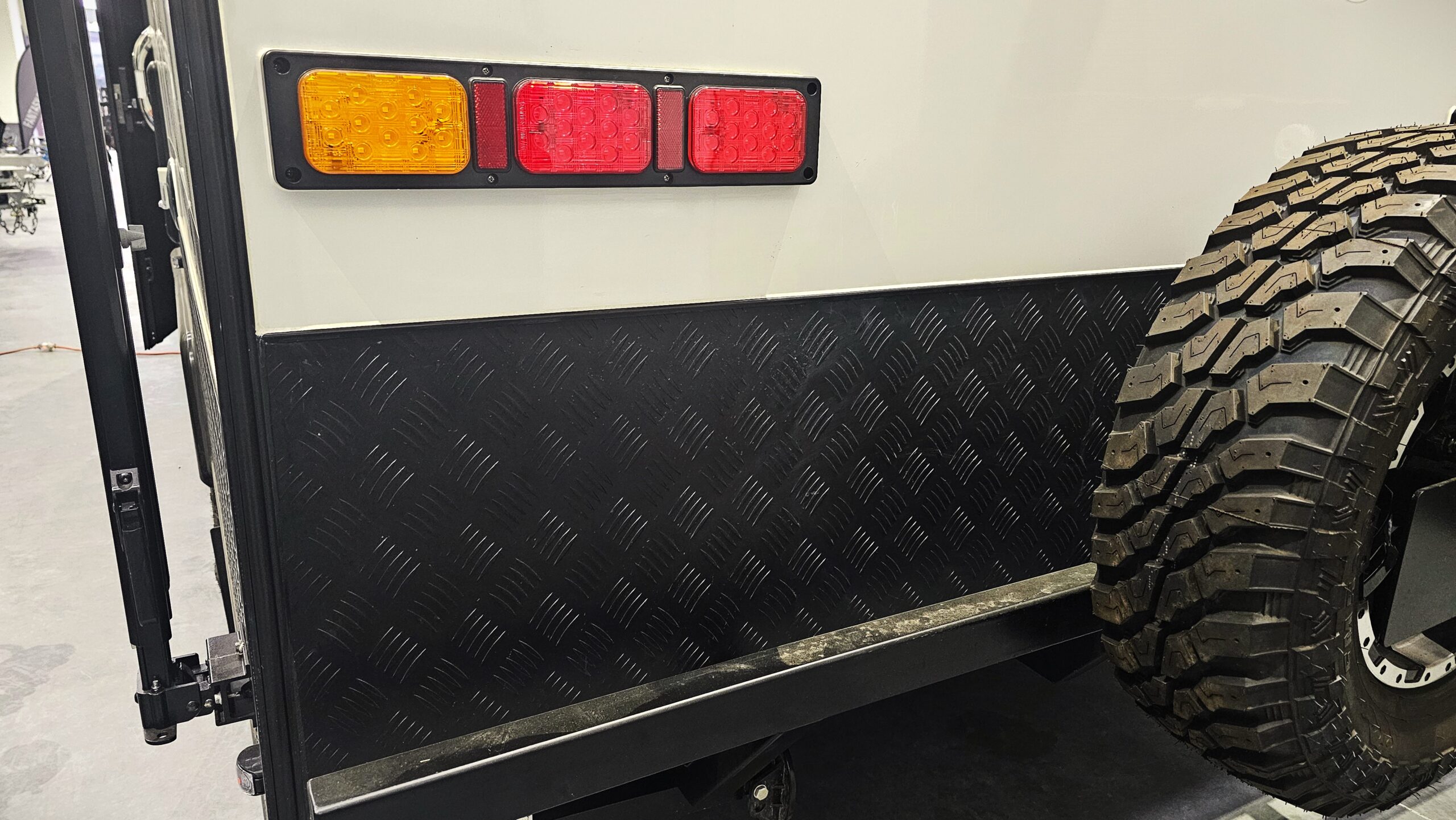

Protection where the road comes closest
The lower body carries a durable protective finish for the everyday scuffs that come with tighter access roads and campsite use, while keeping the Skyline’s exterior clean and considered.

Strength, shaped with intent
The chassis rail carries a deliberate cut-out pattern. It was resolved in the engineering long before it was drawn, so the load-bearing structure underneath gives up nothing to get there.

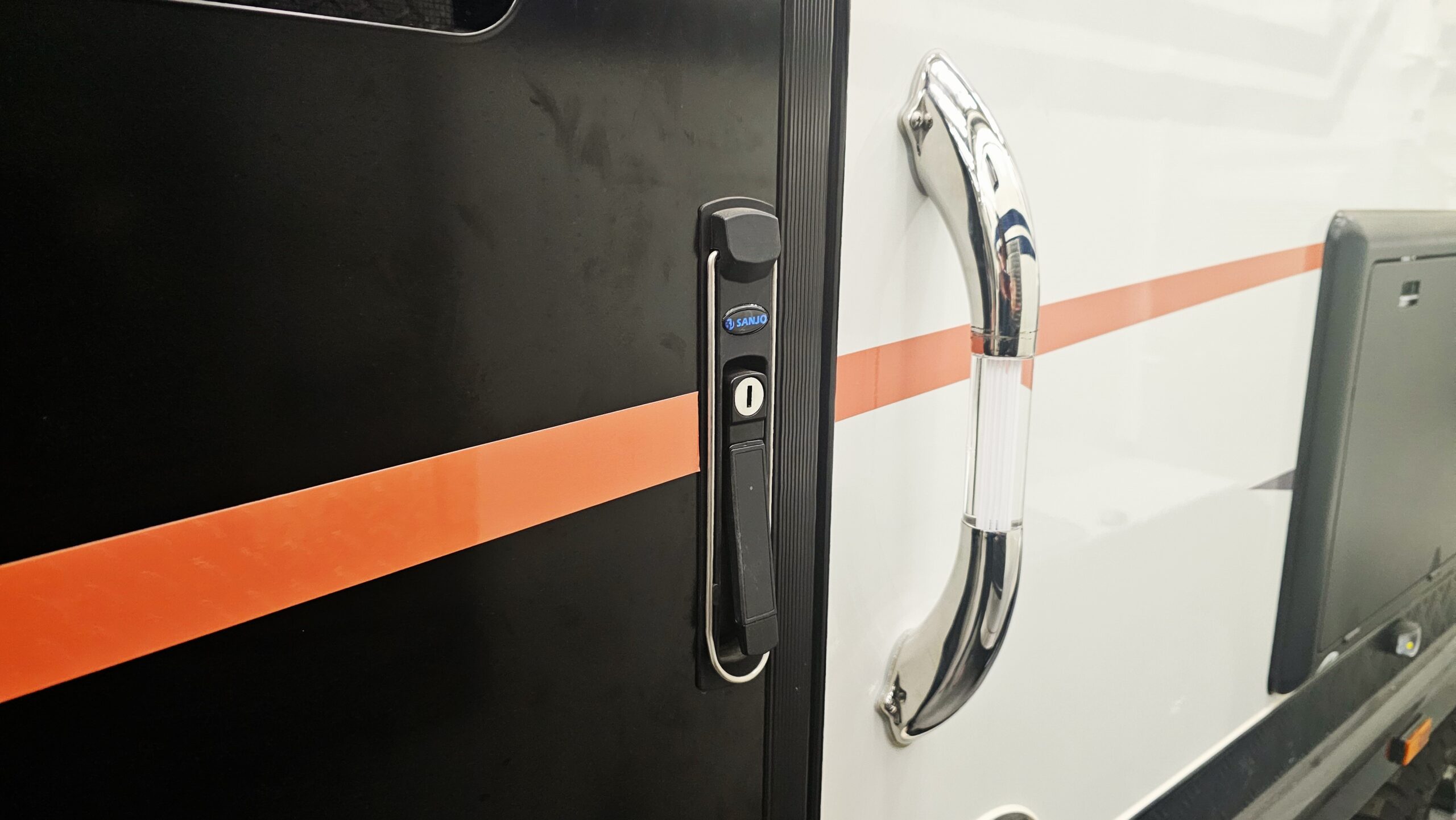

A proper place to arrive
The entry door, grab handle and step make a clear arrival zone on the side of the van. It is the part you use first at every stop, so it should feel considered rather than added on.

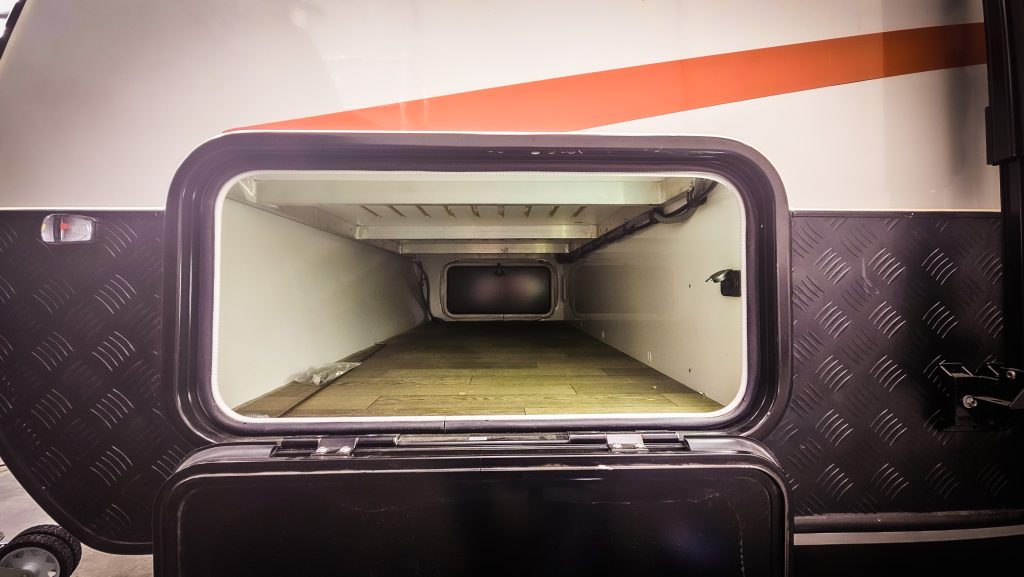

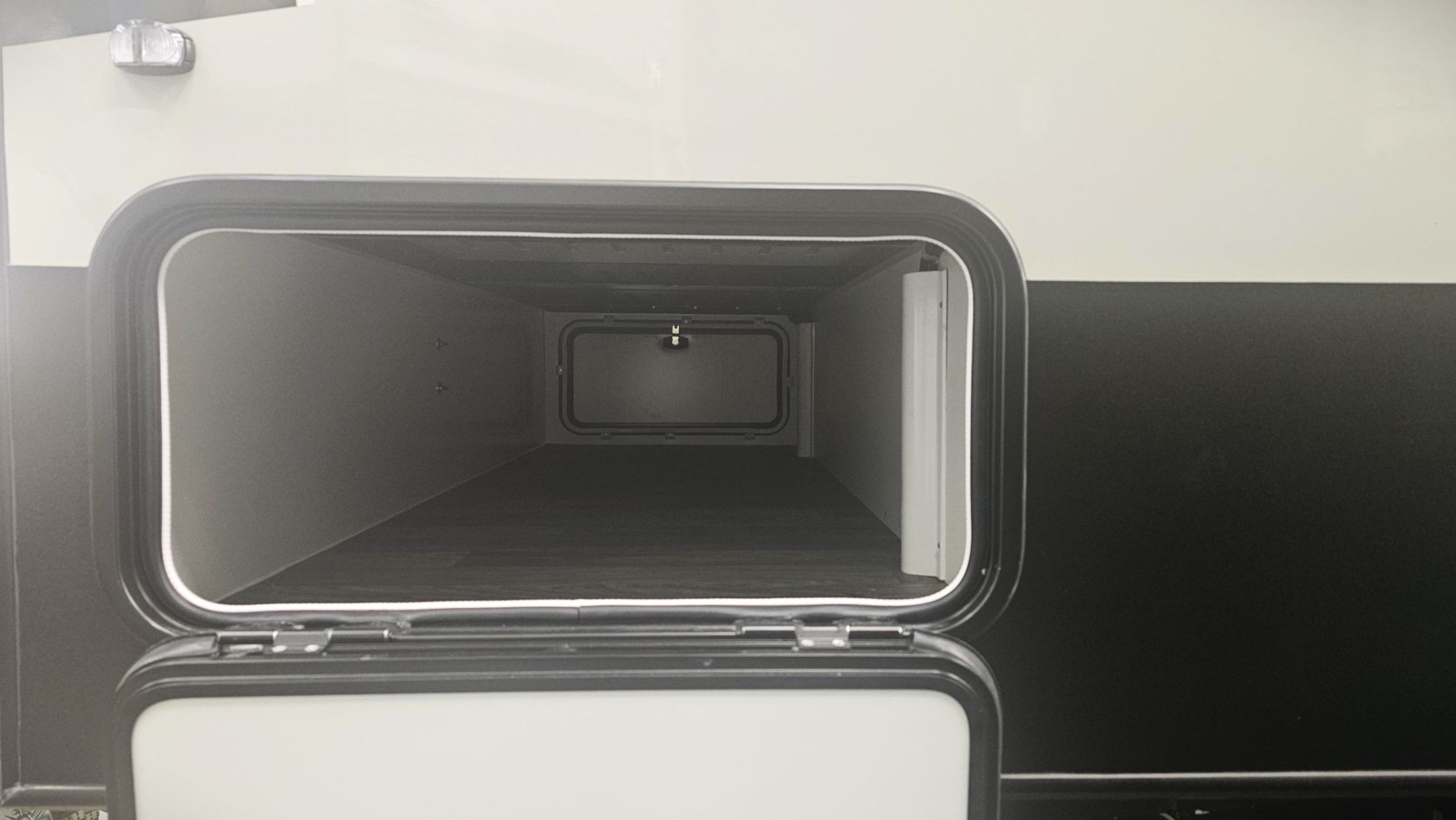

A place for the long gear
A generously sized tunnel boot gives longer gear a space of its own, keeping bulky items out of the living area. On selected layouts, this zone can be specified instead as an optional exterior kitchen.
INTERIOR

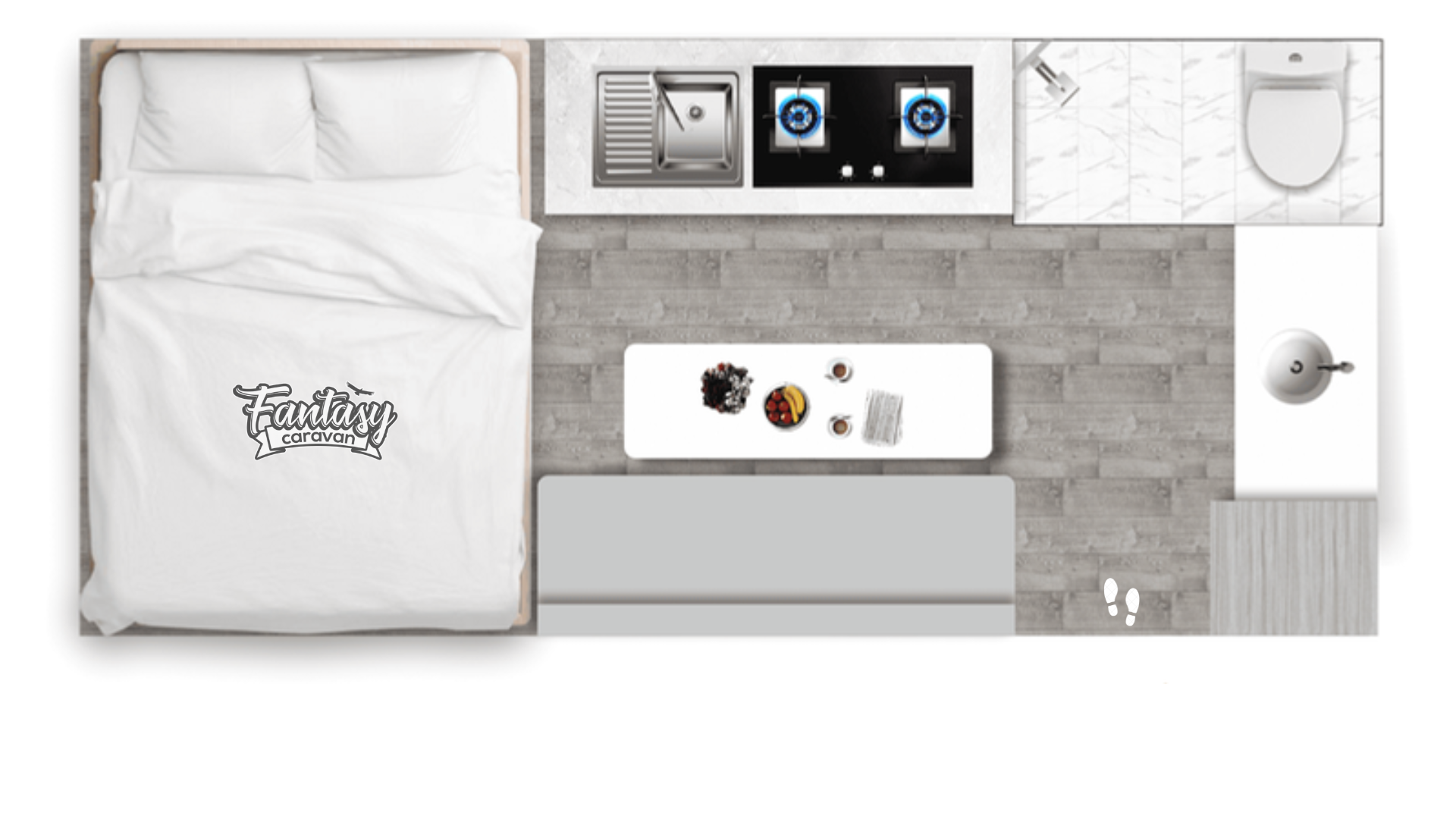

Designed around the day, not the drawing.
A layout that makes the everyday rhythm of travel feel natural.

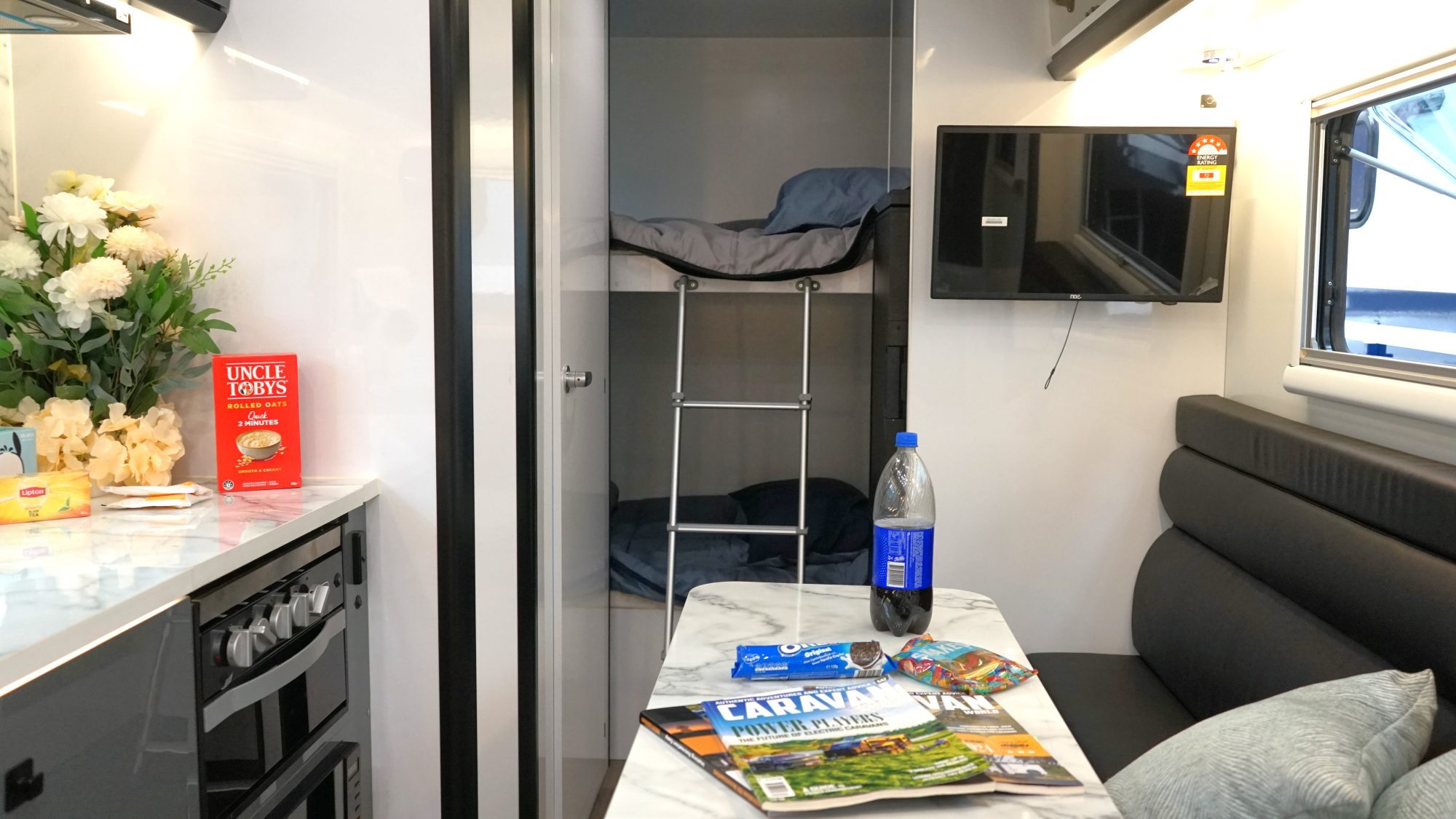

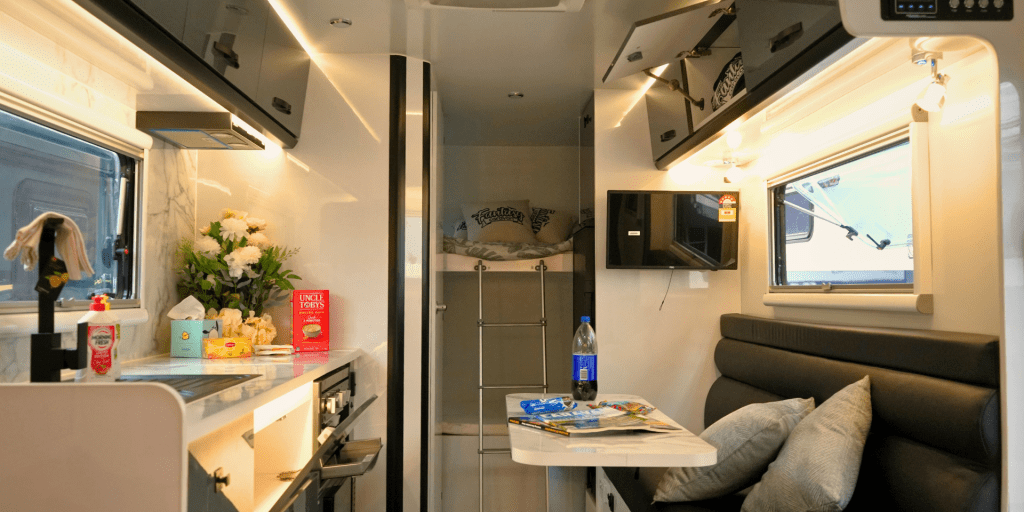

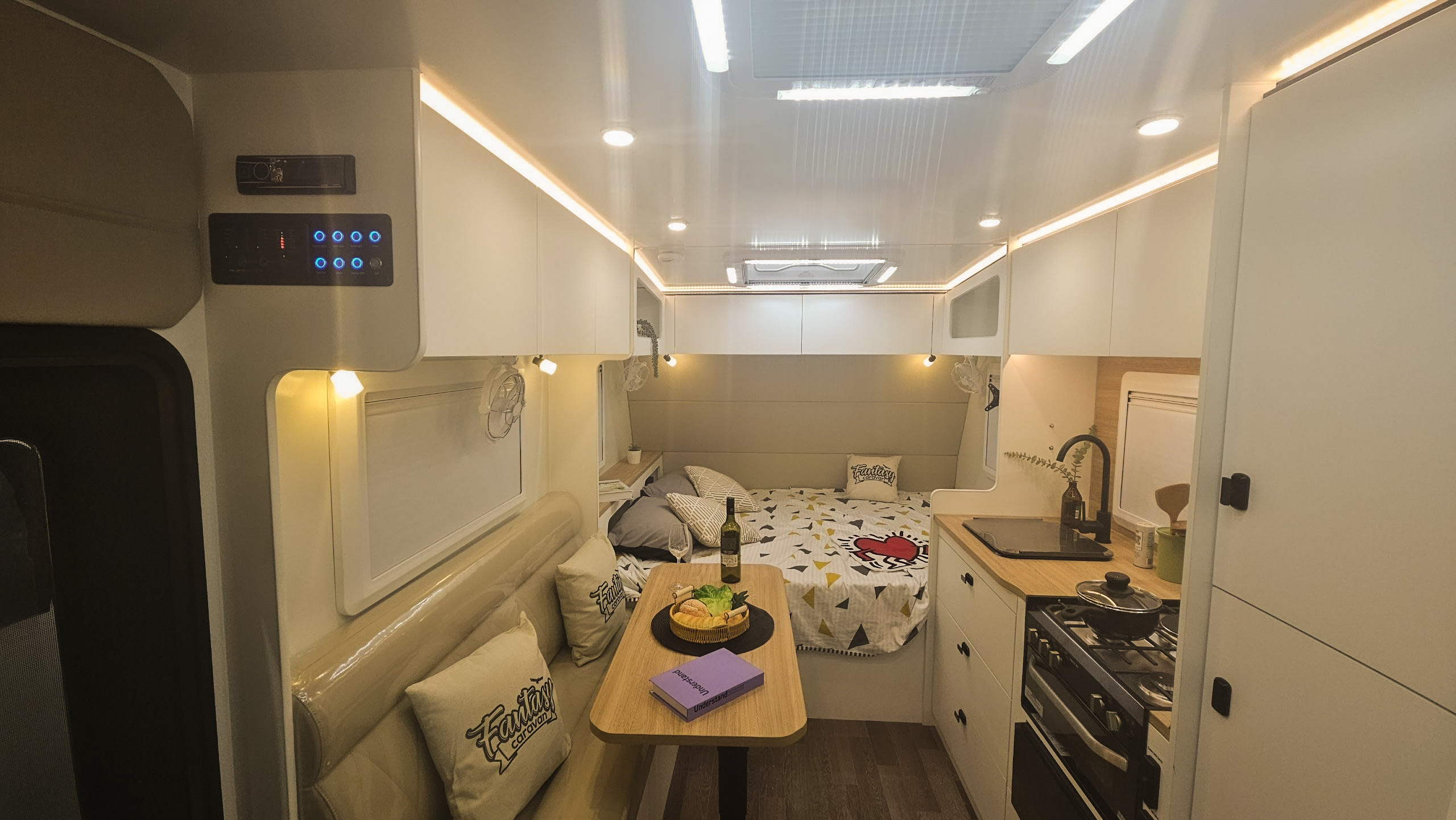

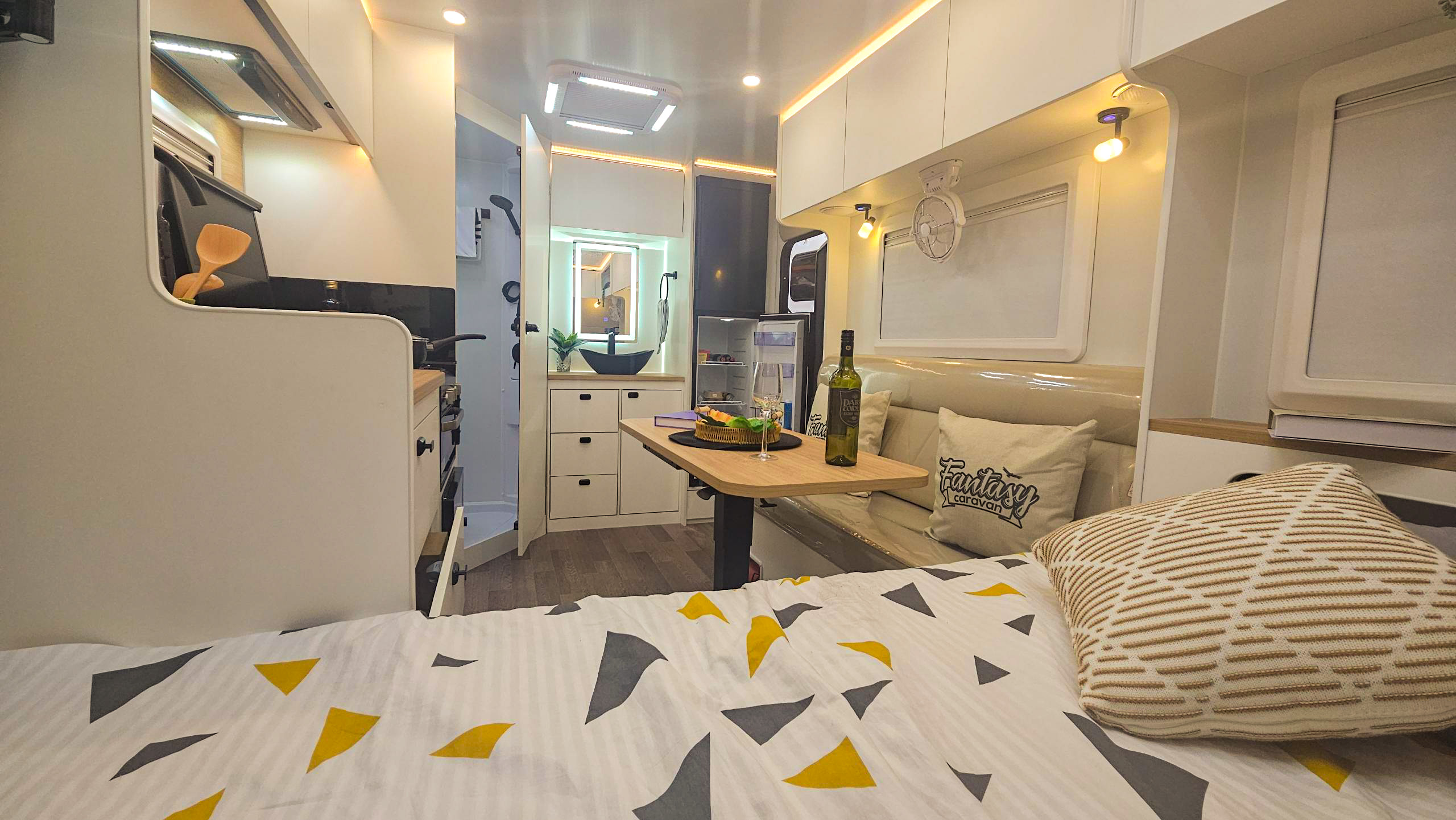

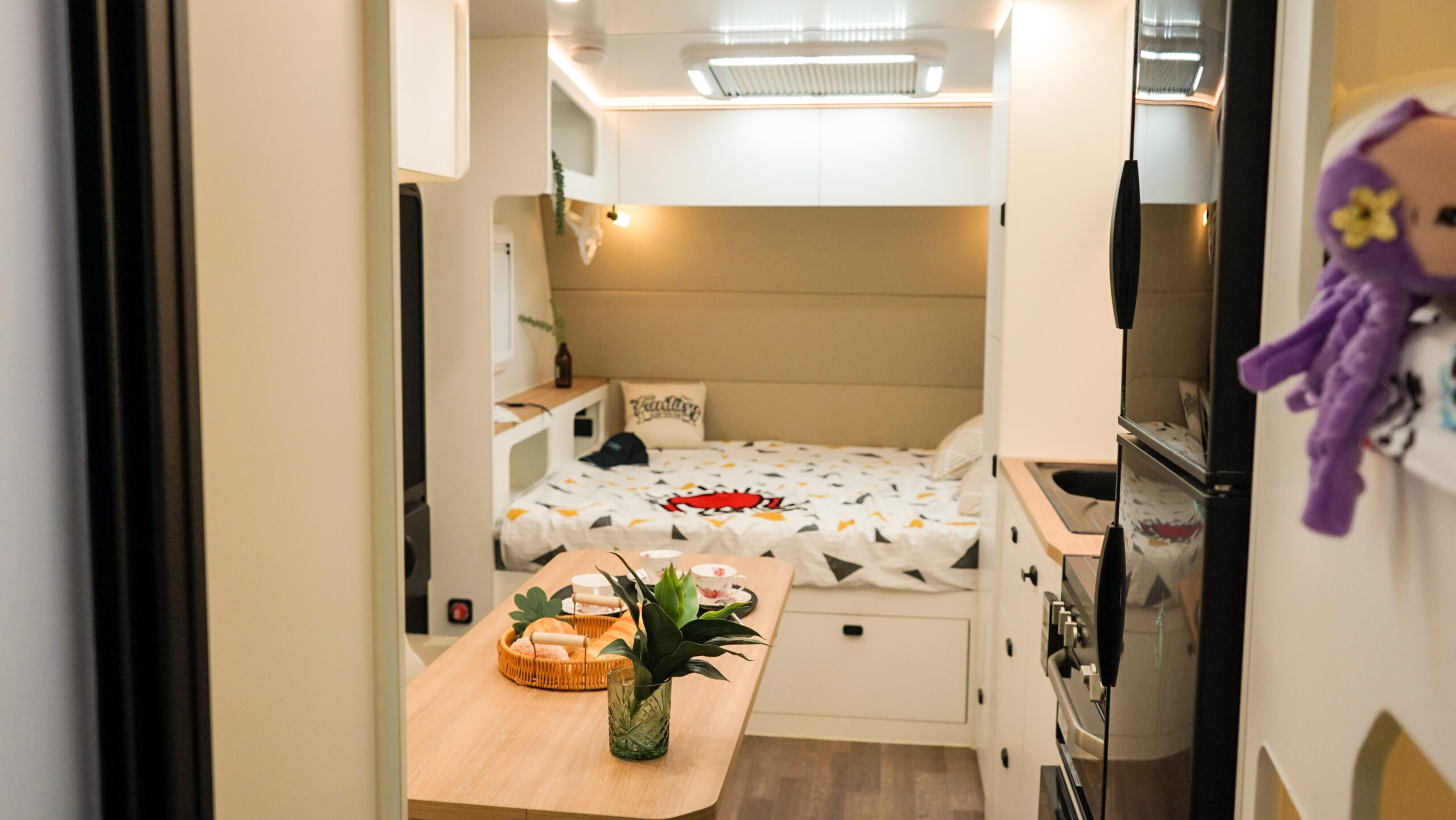

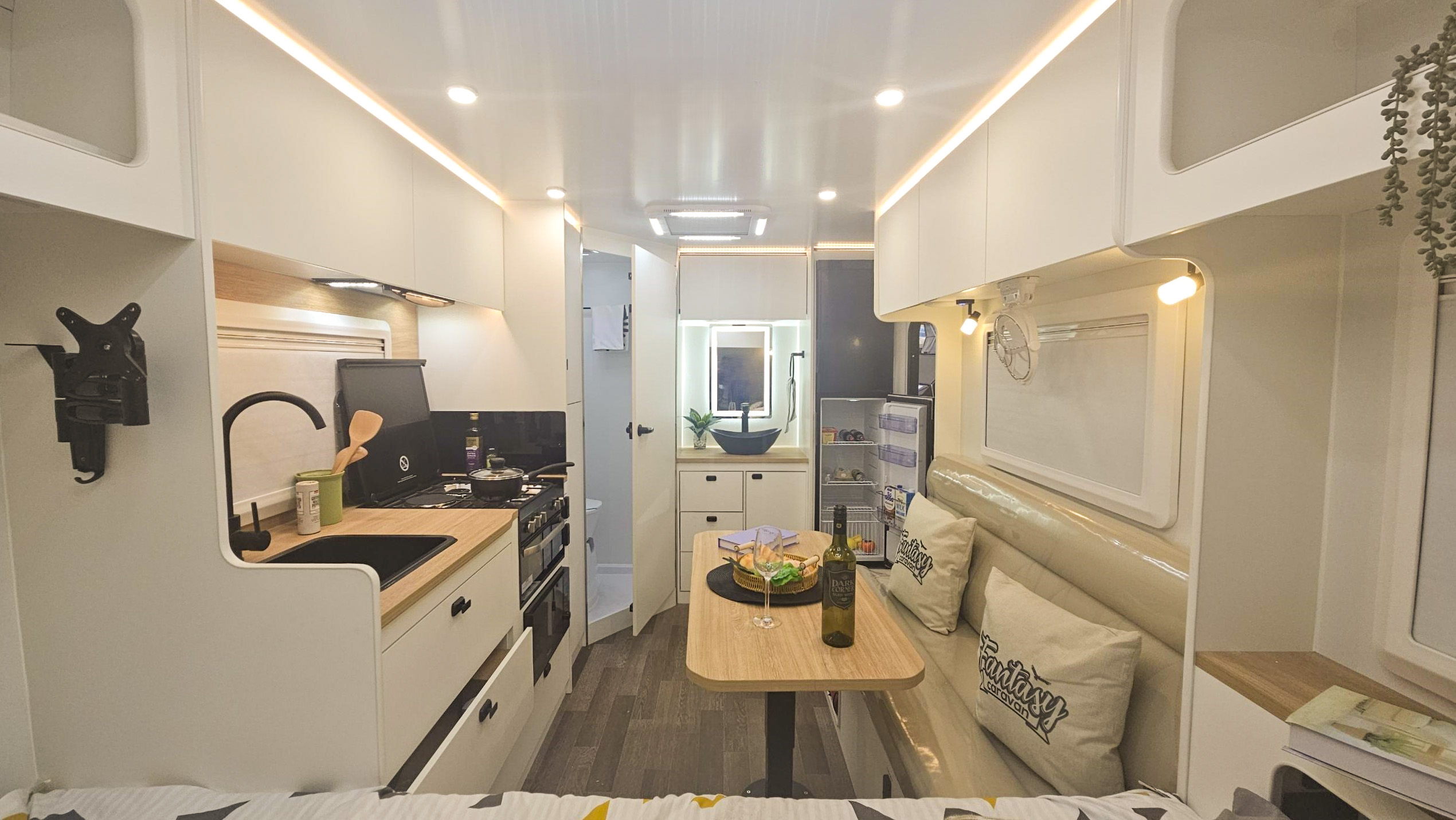

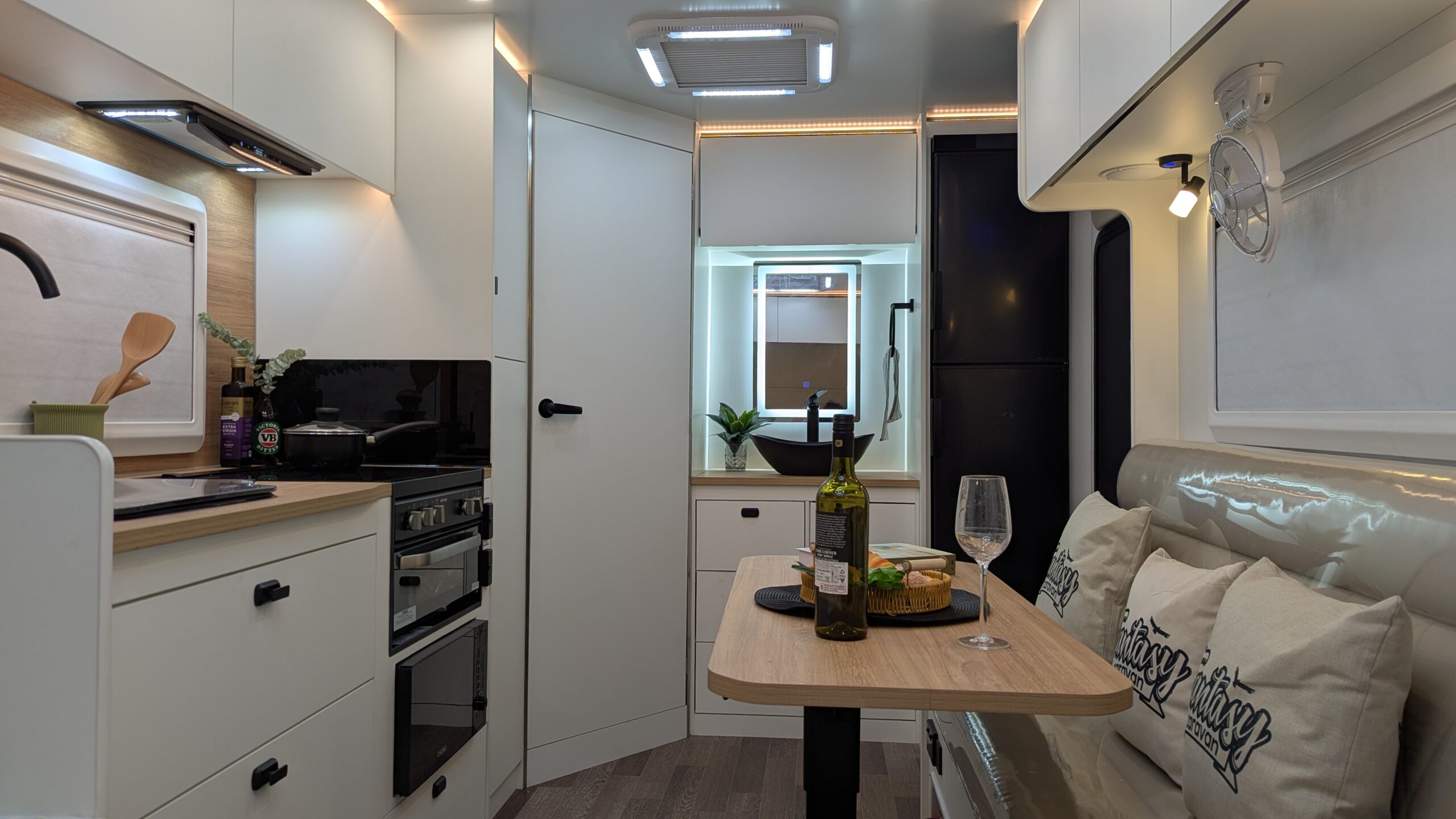

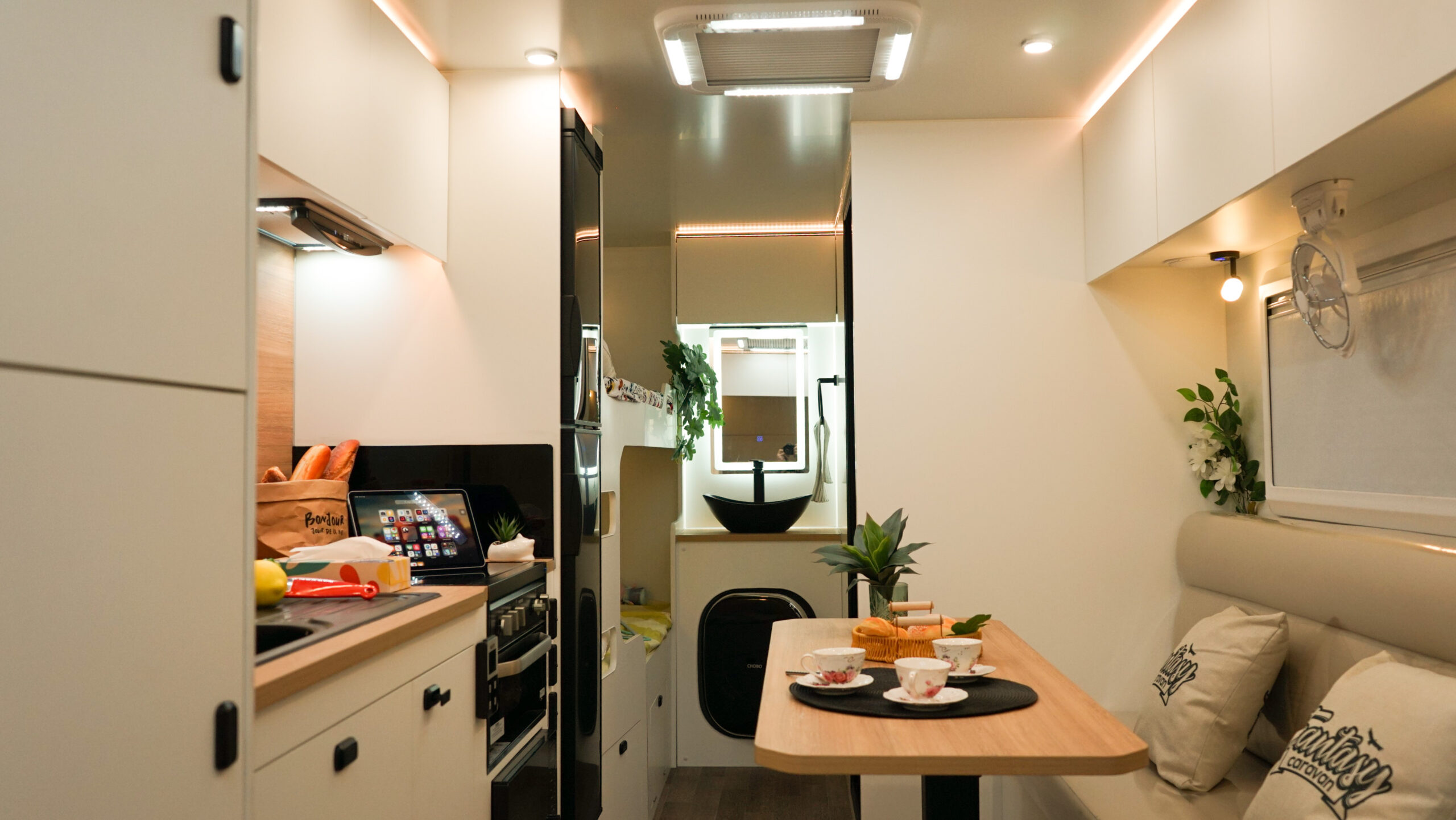

Walk in
The right first impression is room, not compromise.

Light that opens the room
Natural light and a clear line of sight make the space feel welcoming from the first step inside.

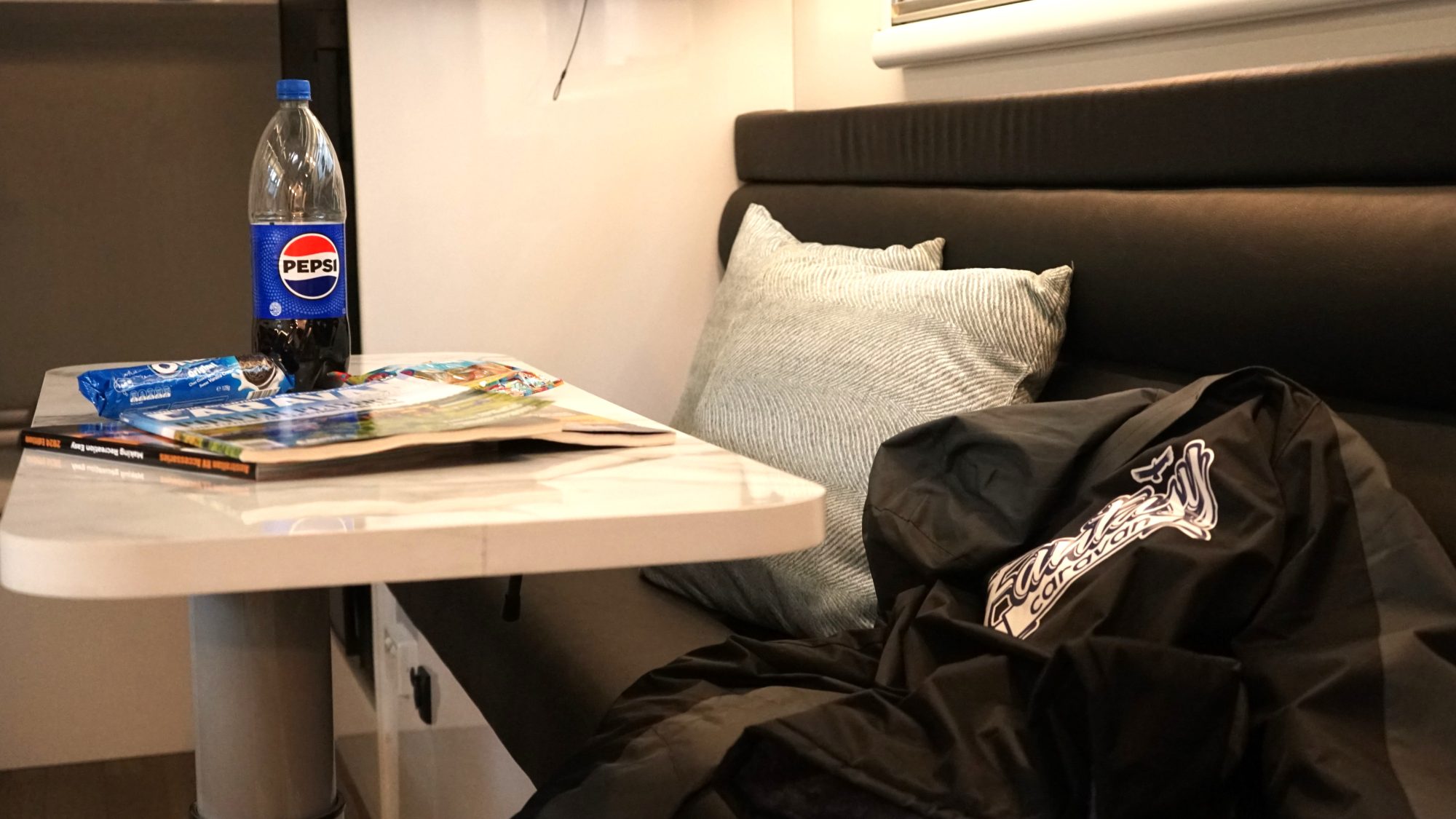

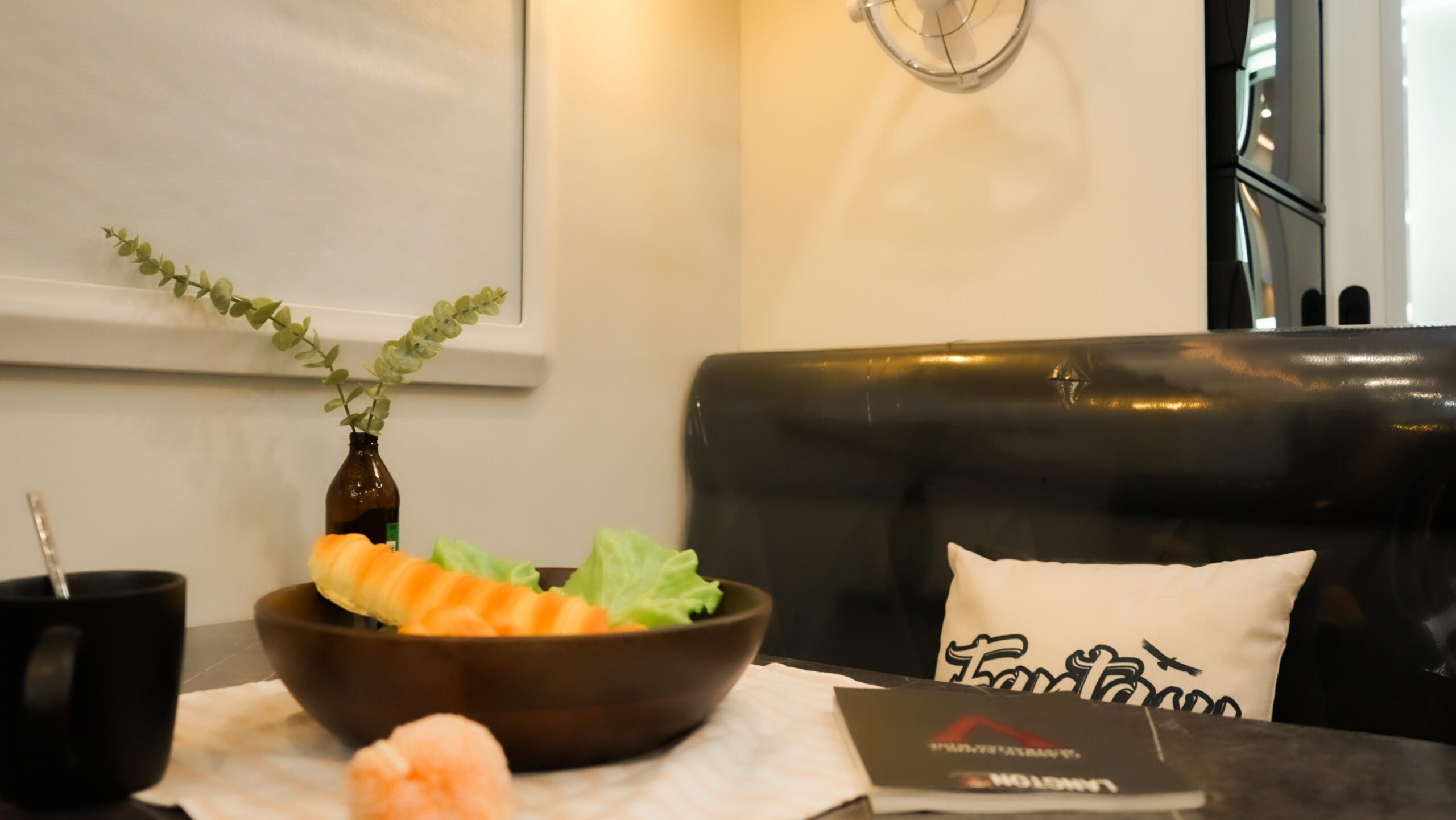

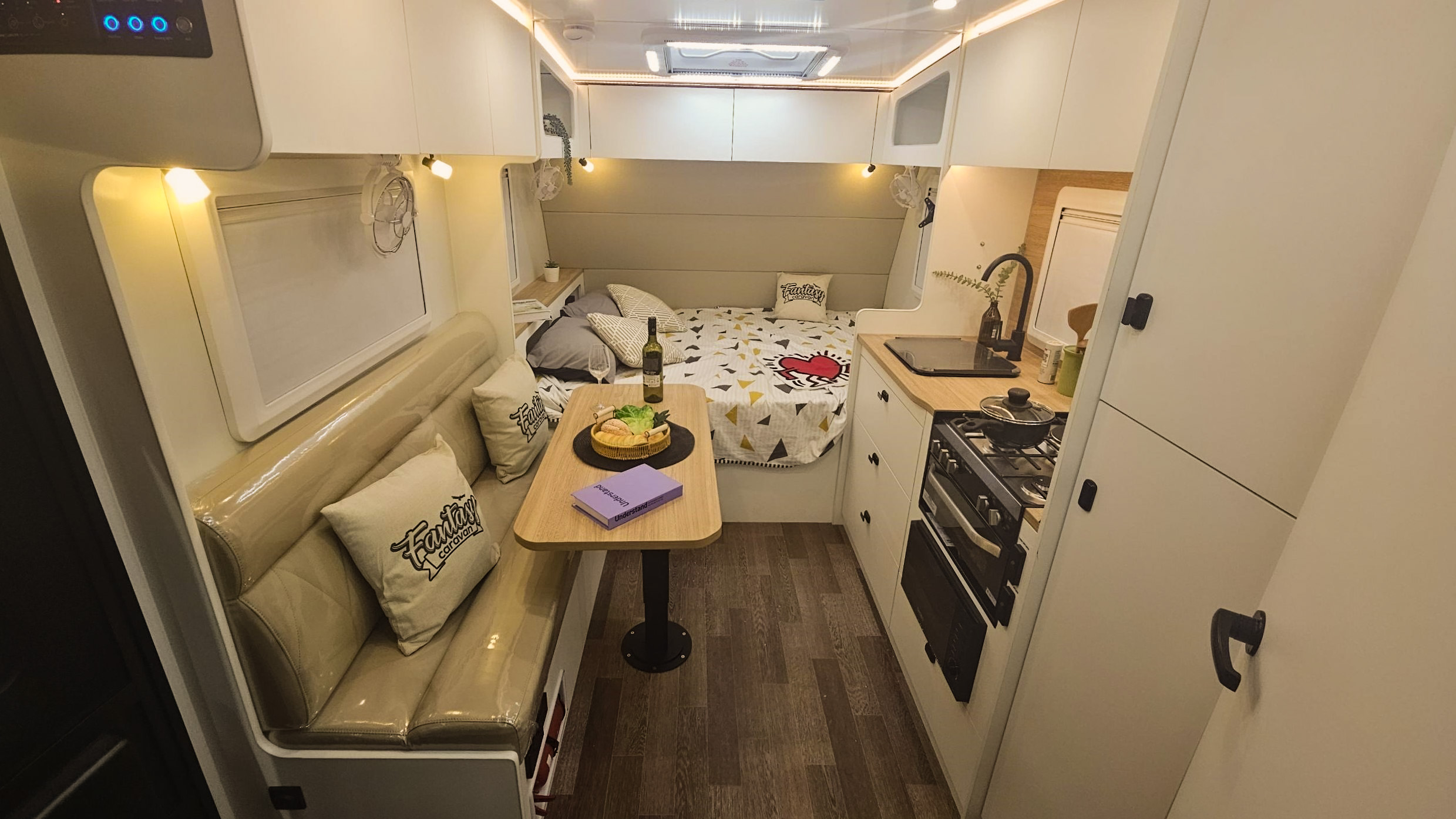

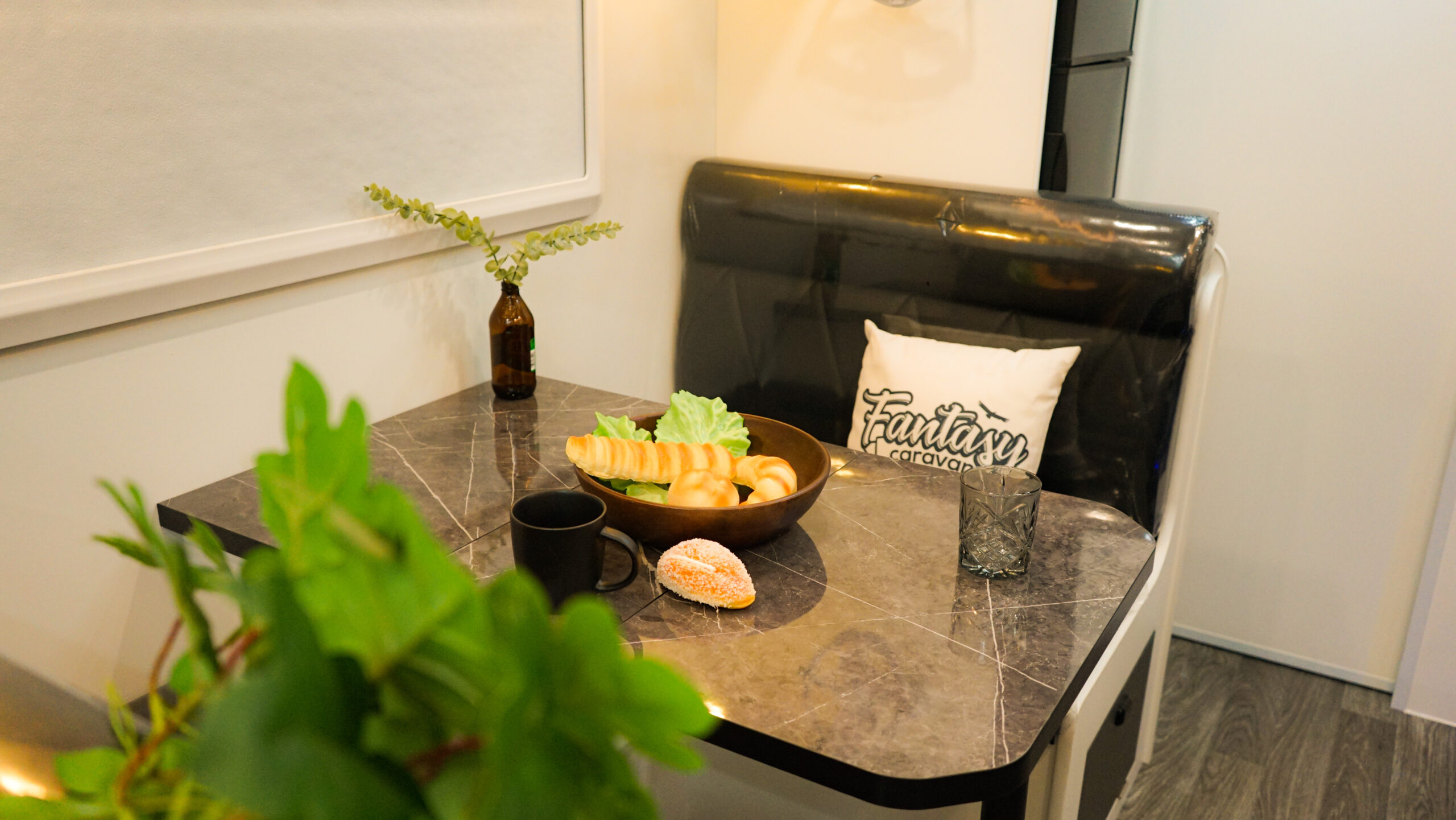

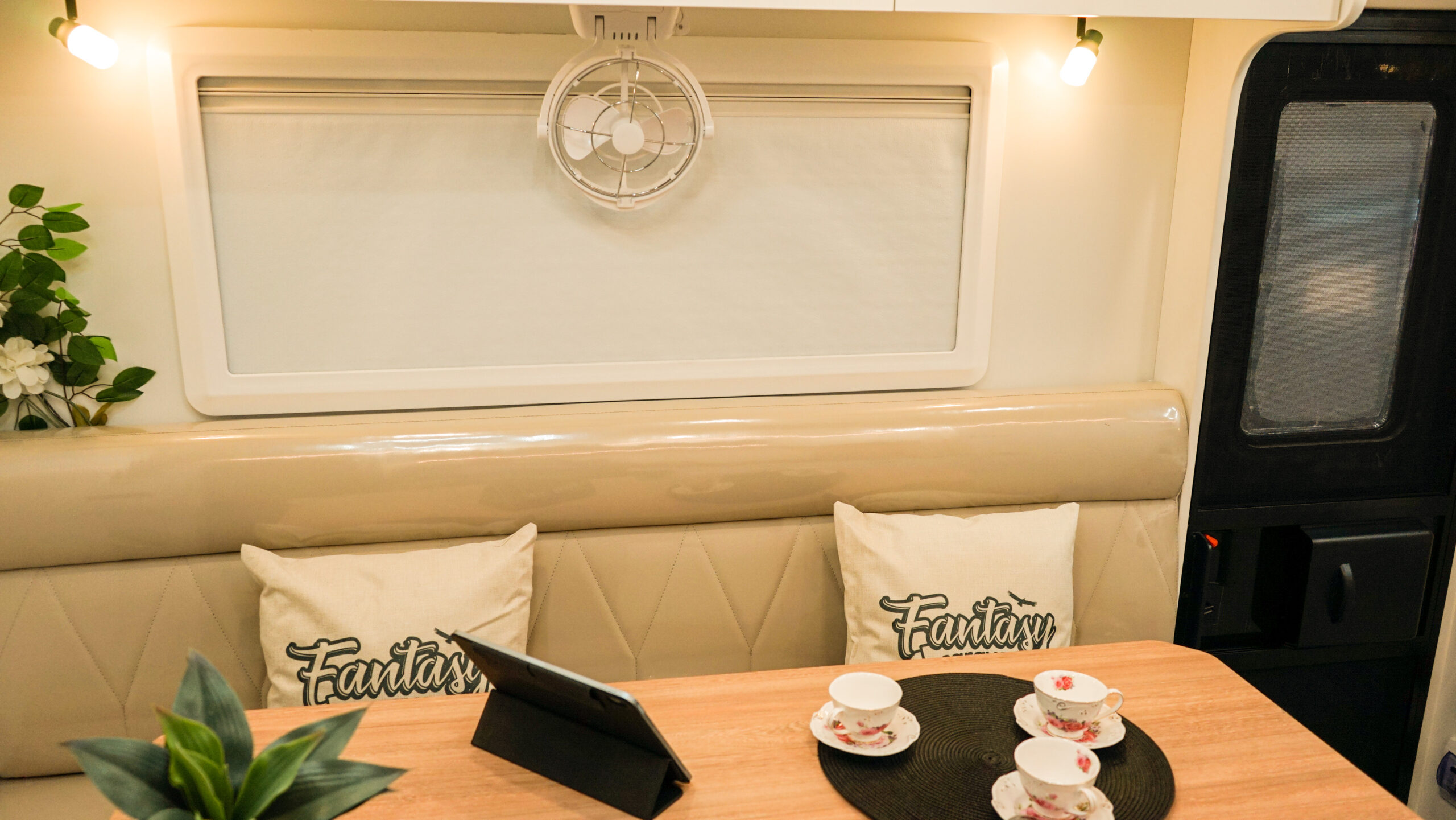

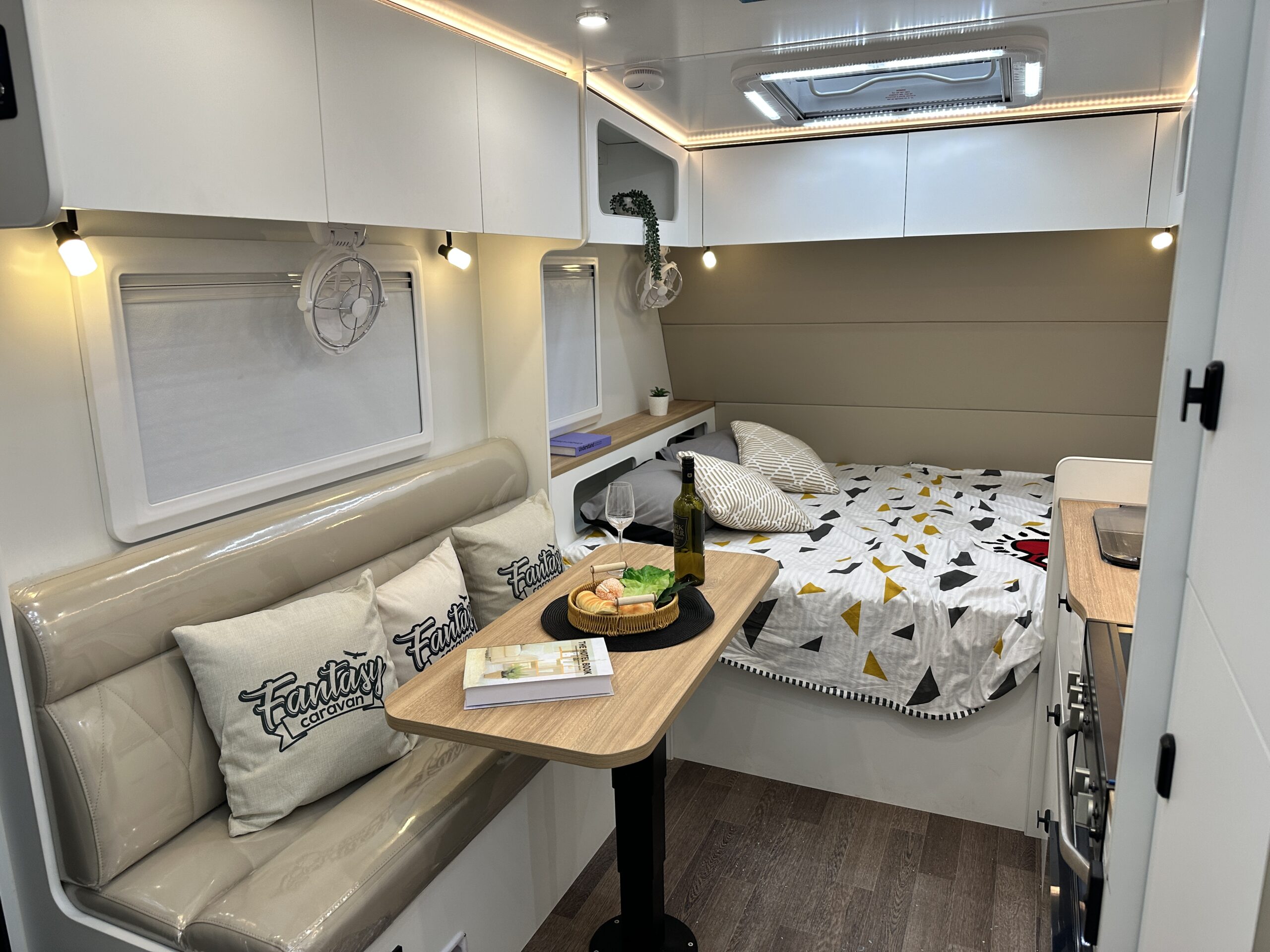

A lounge with a view
Sit down, look out and take in the place you stopped for – without leaving the living area.

Privacy stays put
A proper entry curtain helps the inside feel settled whenever you need a little separation.

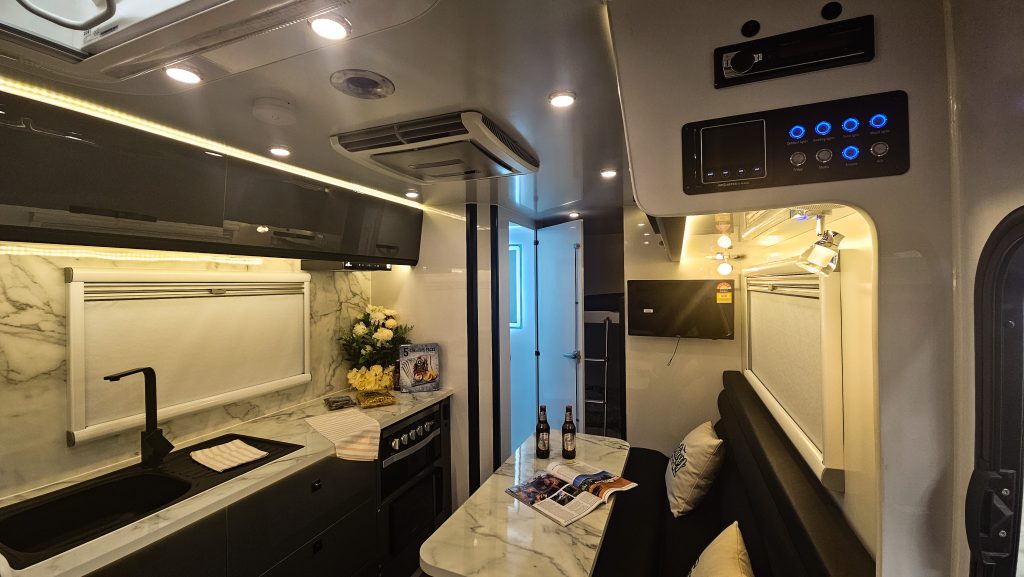

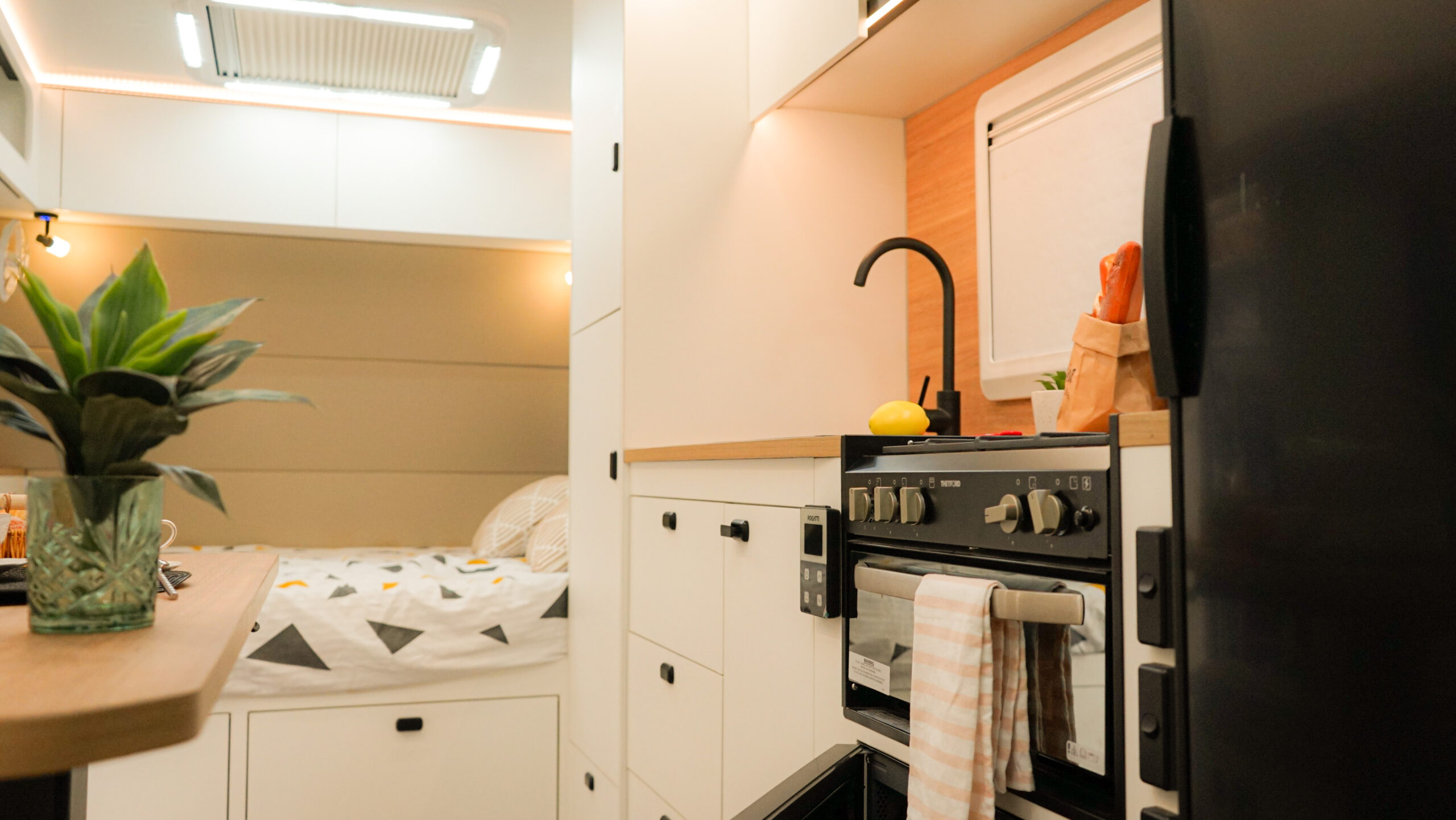

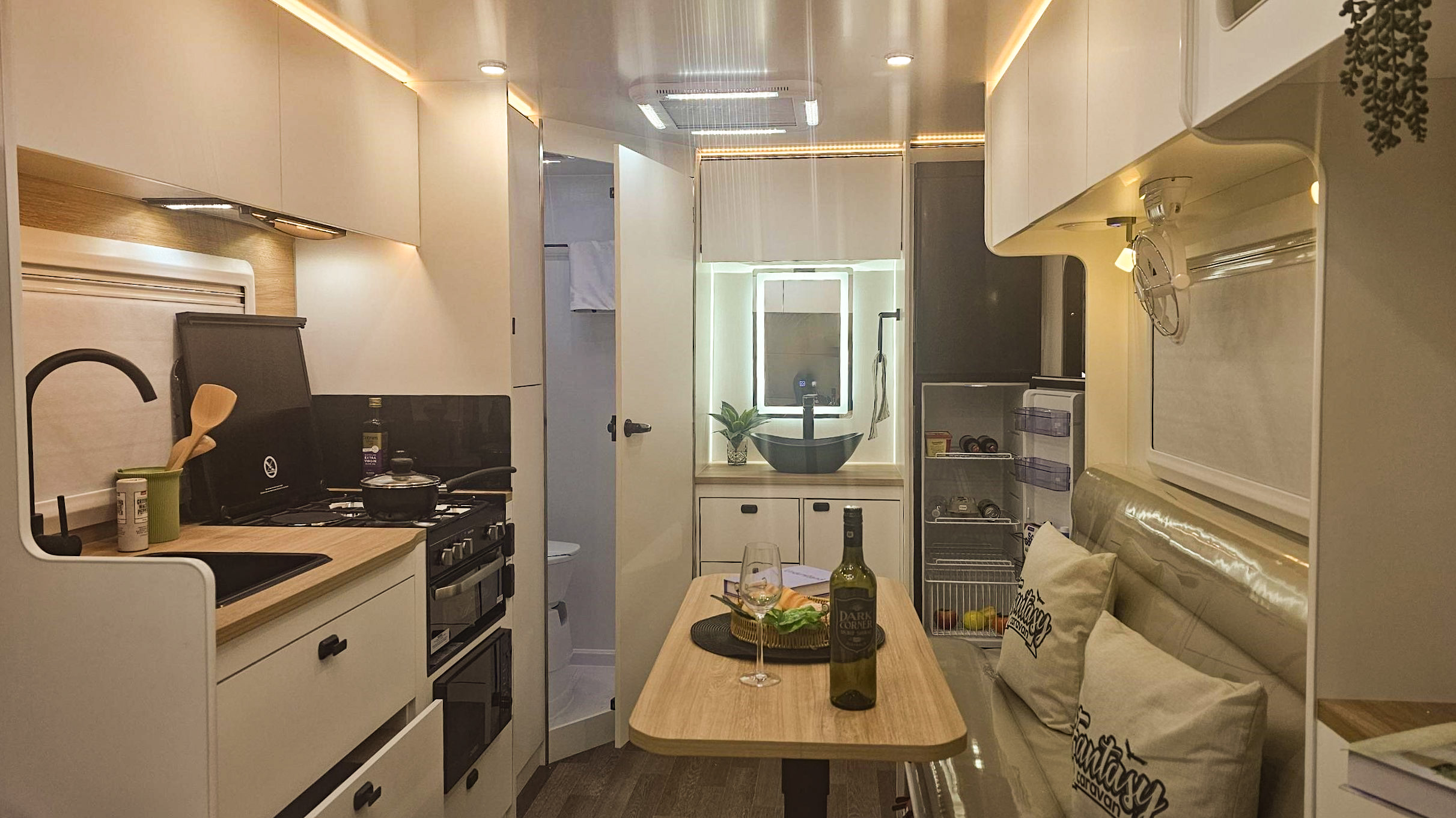

Through the day
The kitchen and living space should work before you start thinking about them.

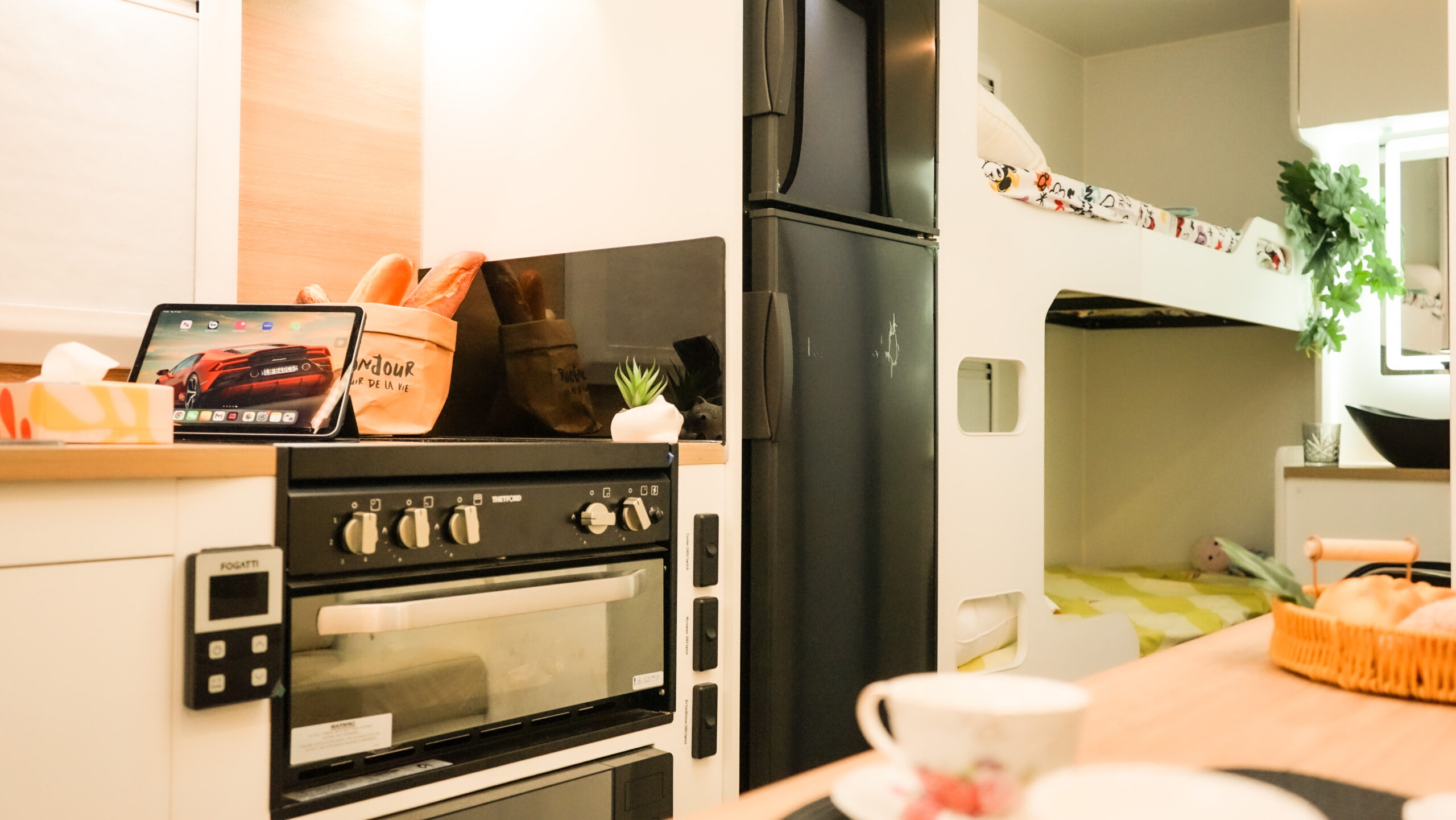

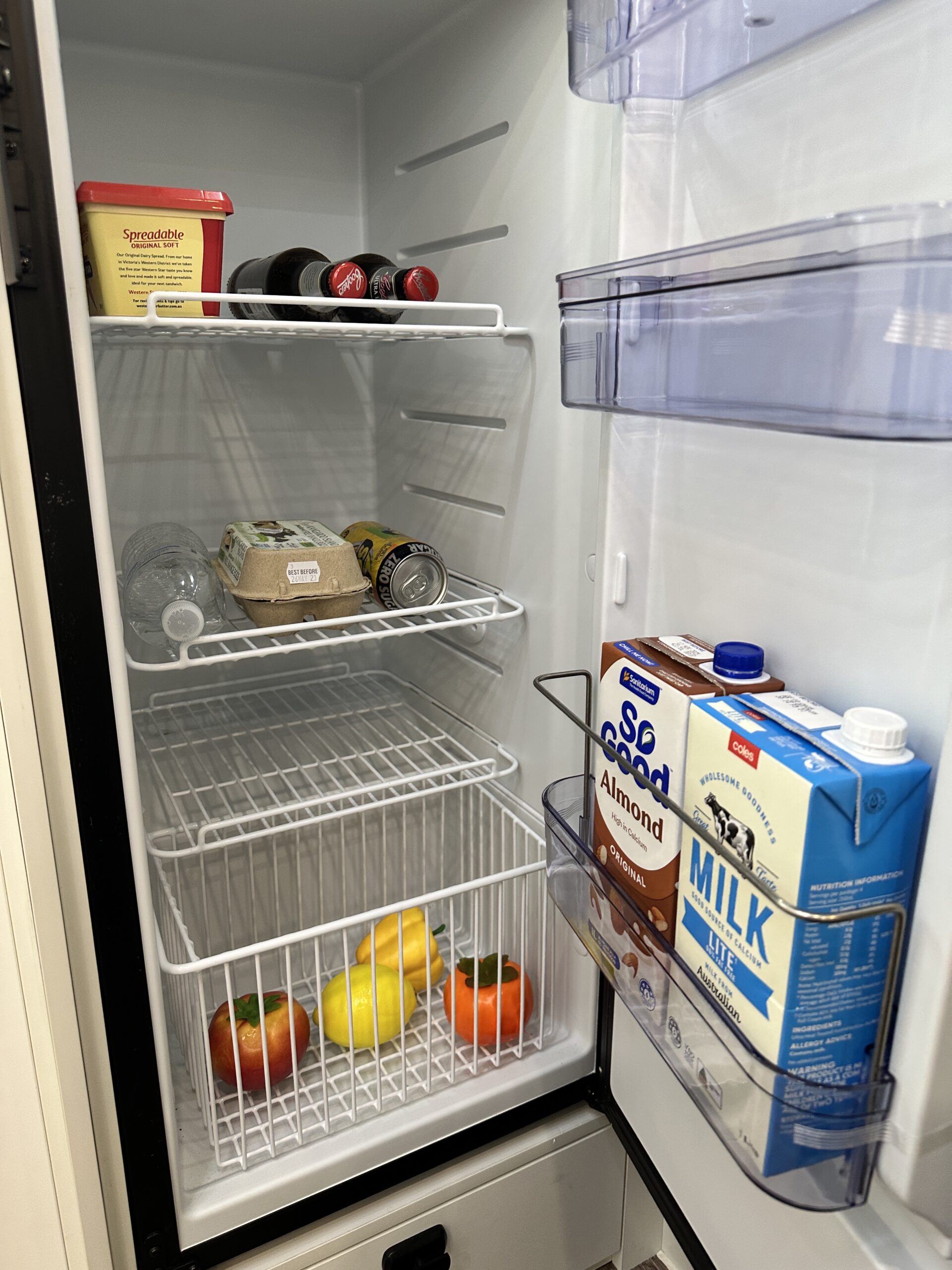

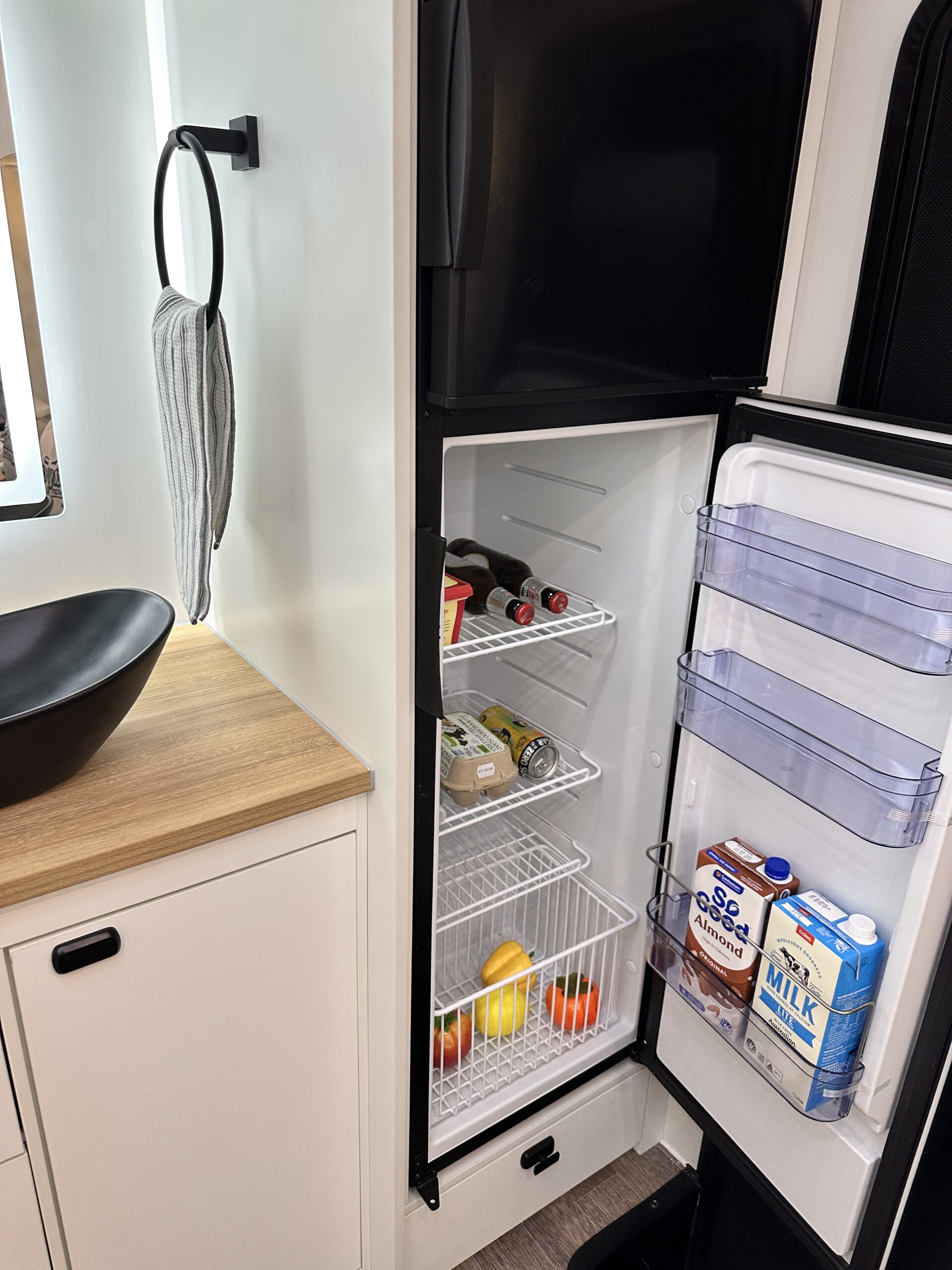

Cold storage for the whole trip
A full-height fridge leaves room for fresh food, drinks and the shop you actually planned to bring.

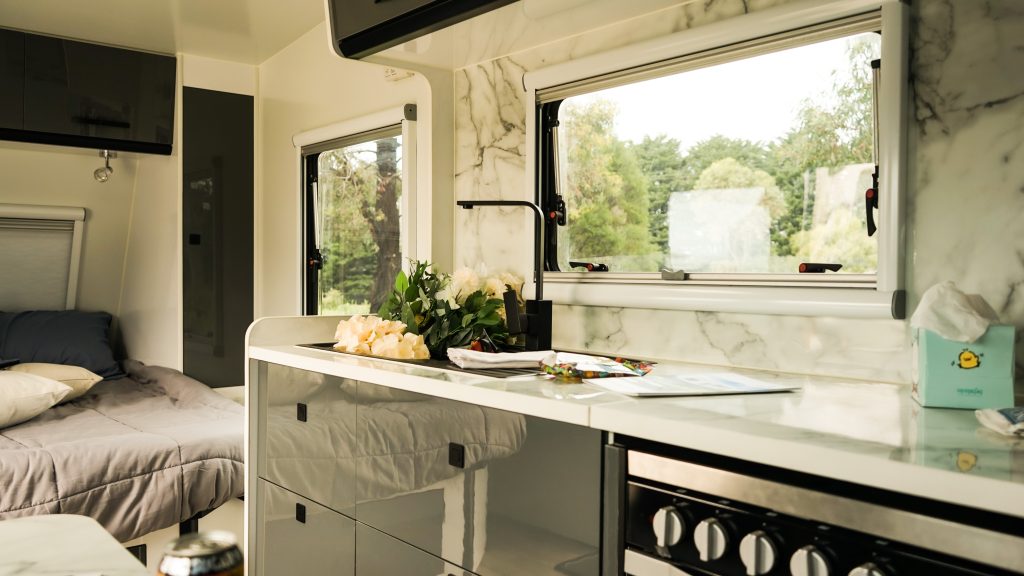

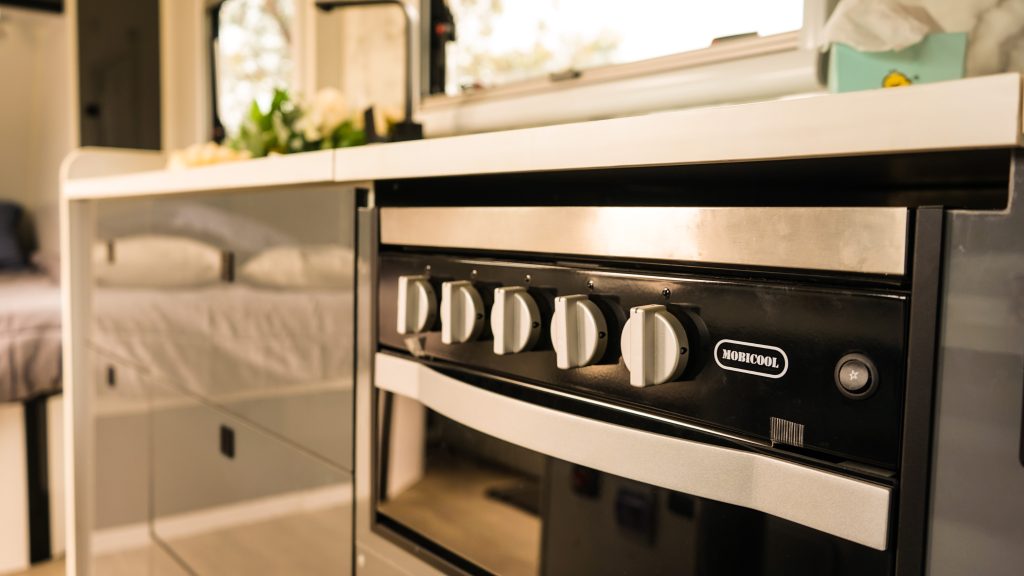

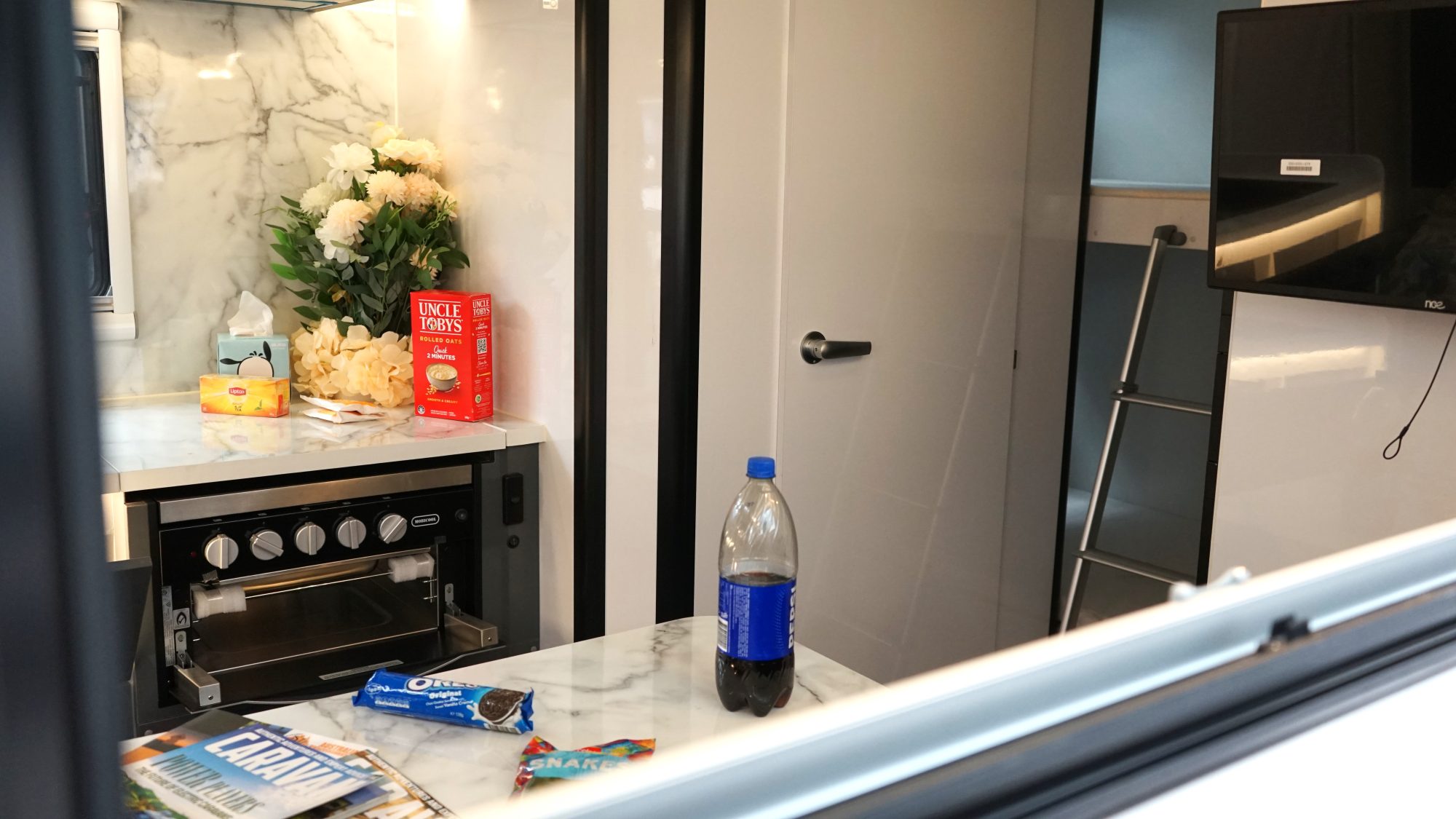

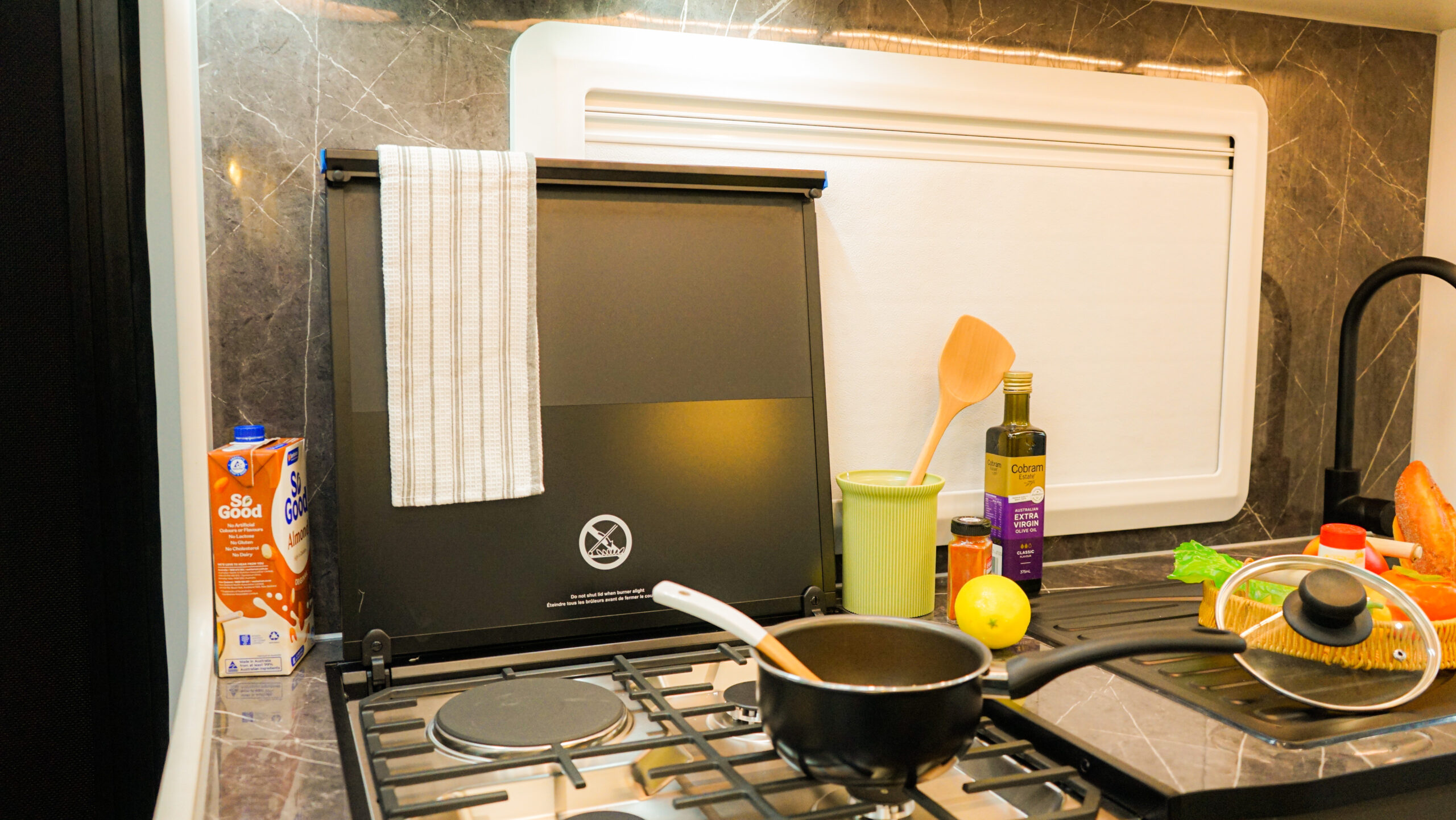

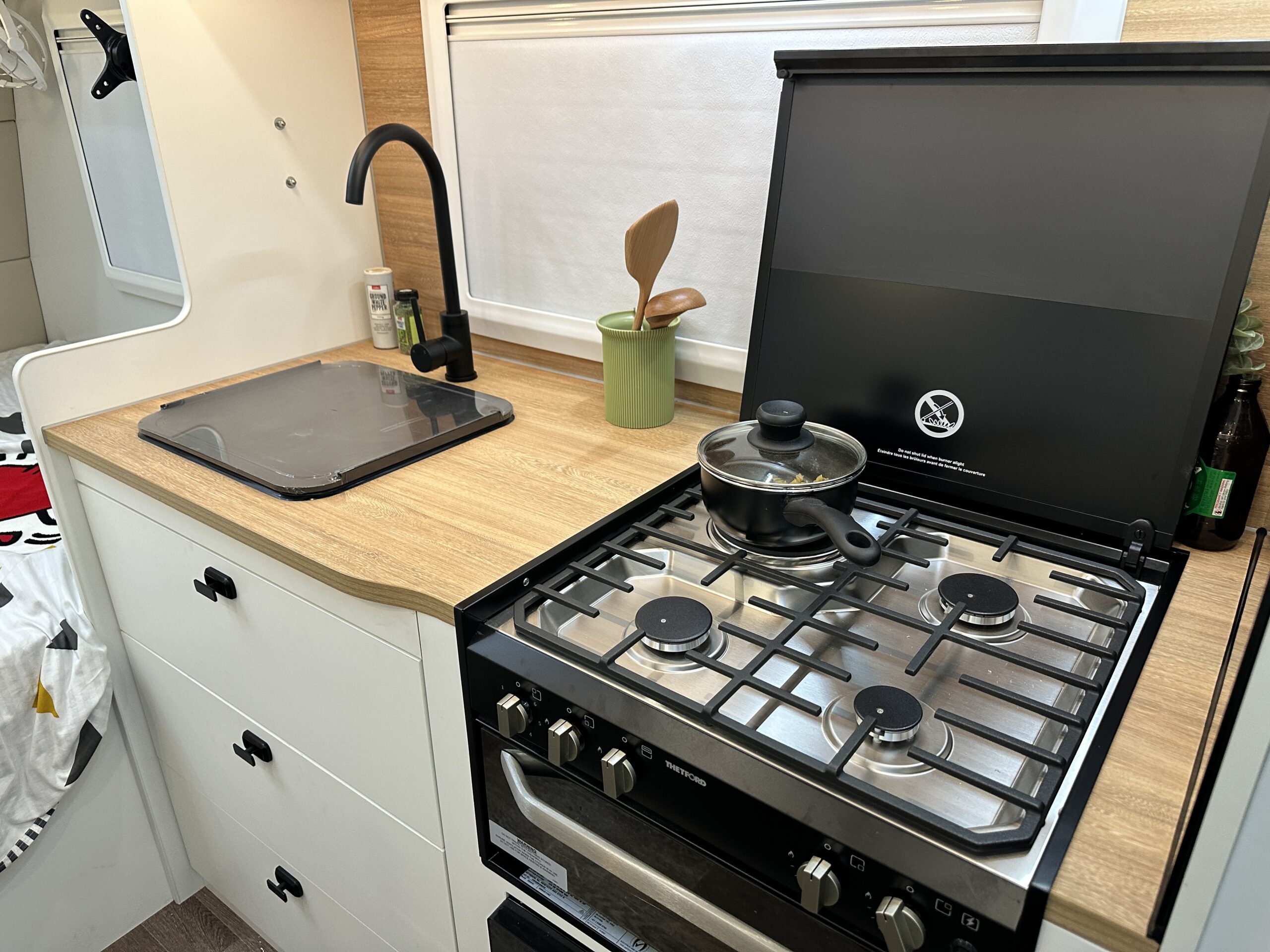

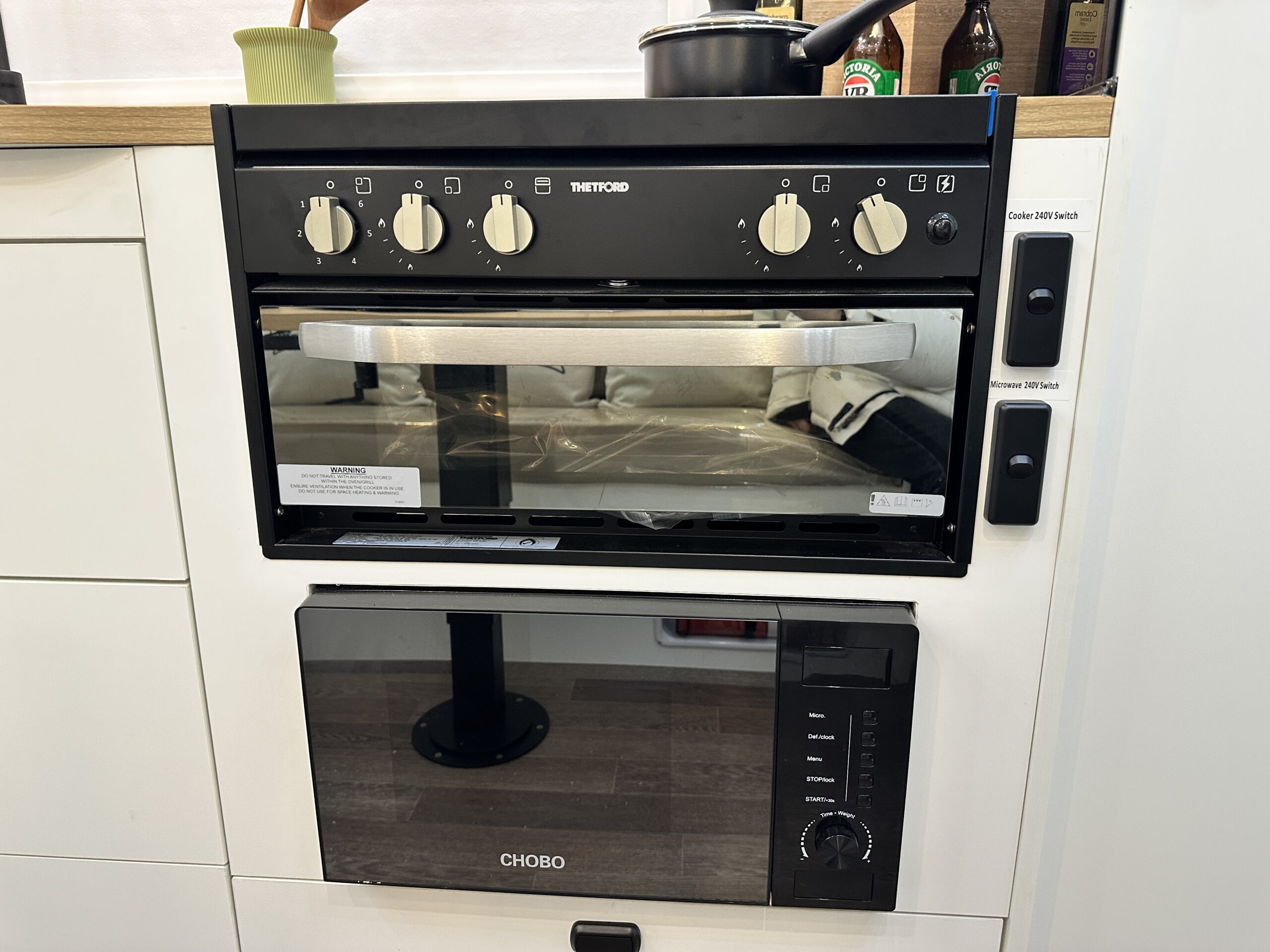

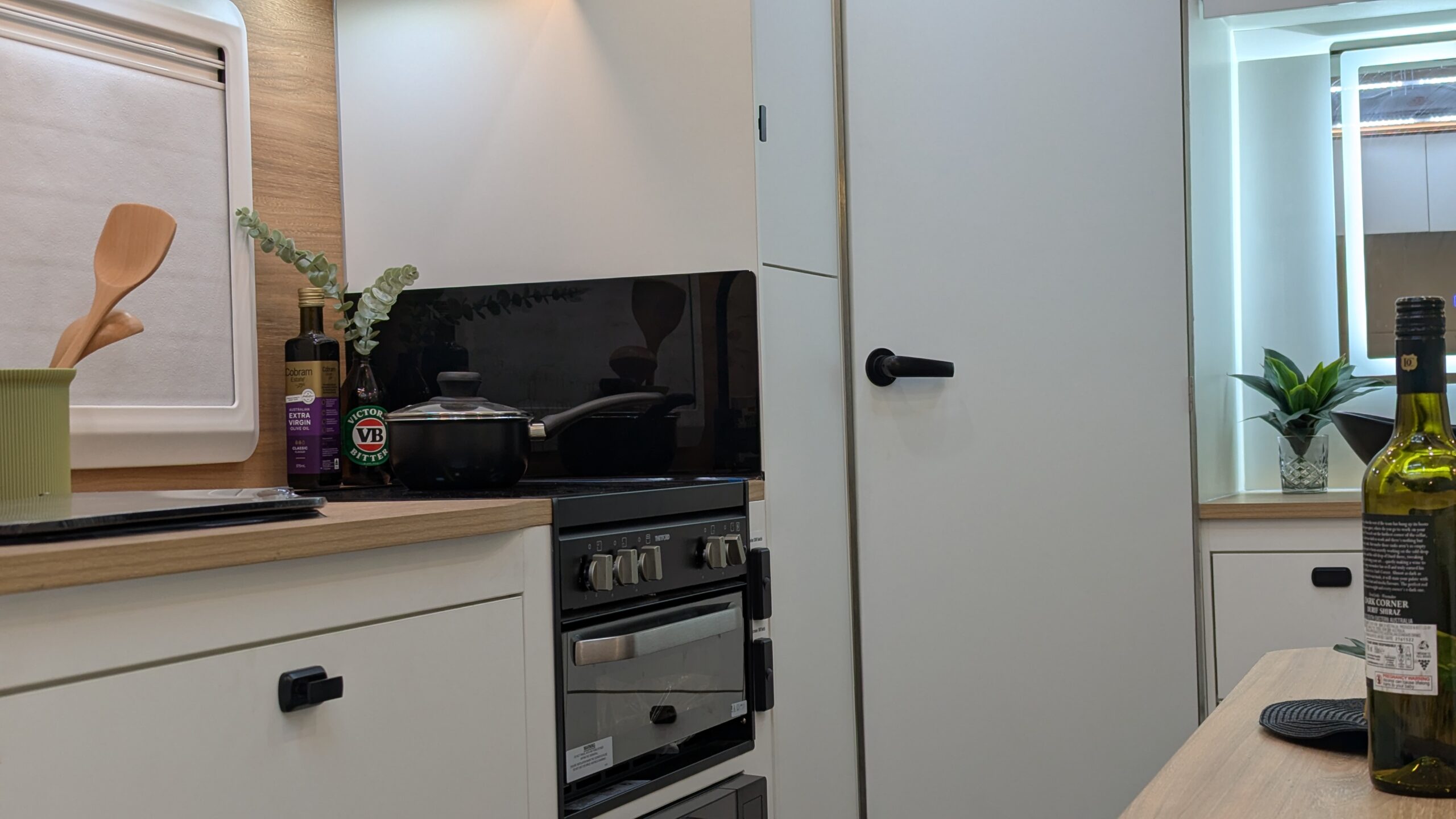

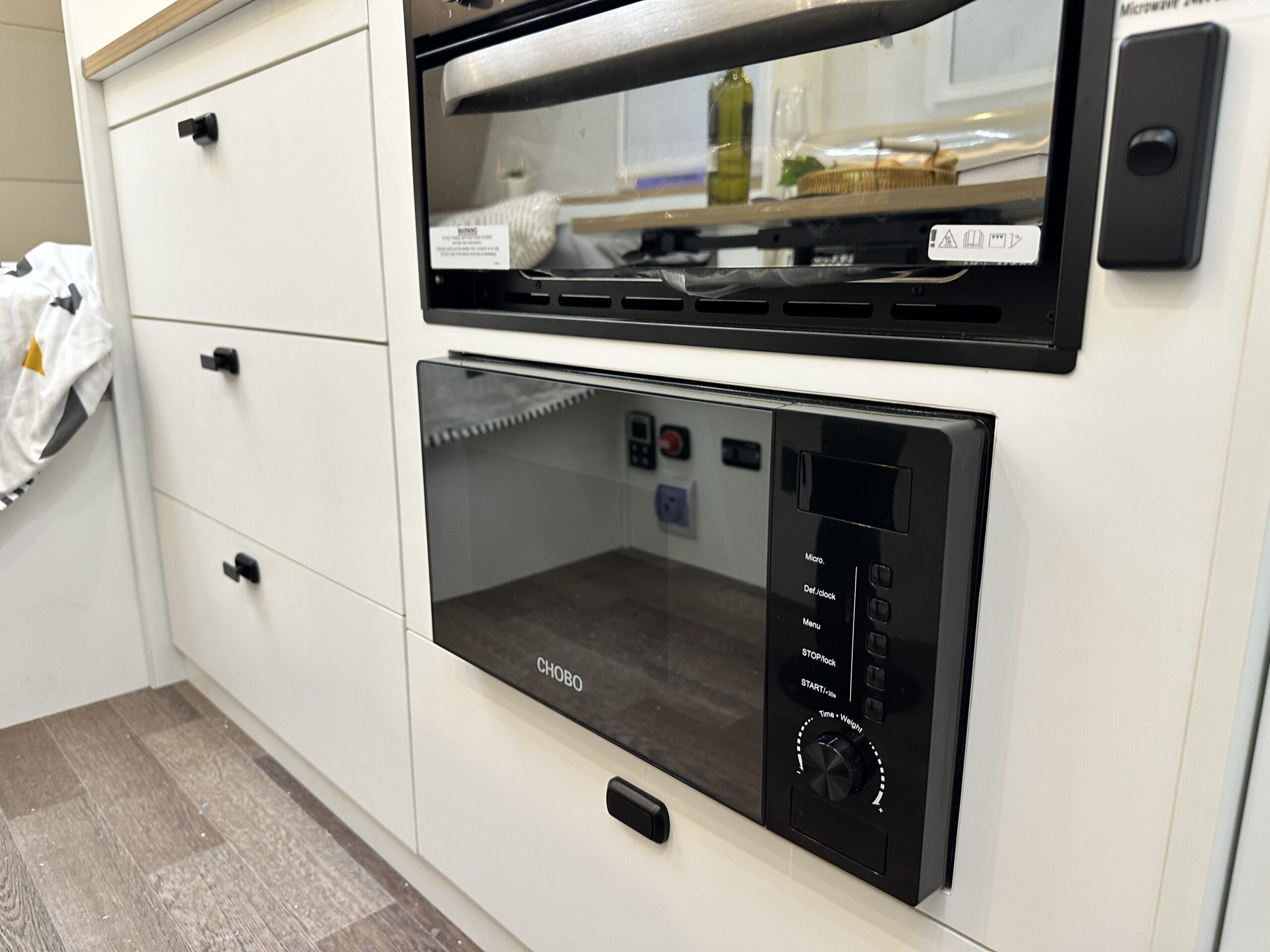

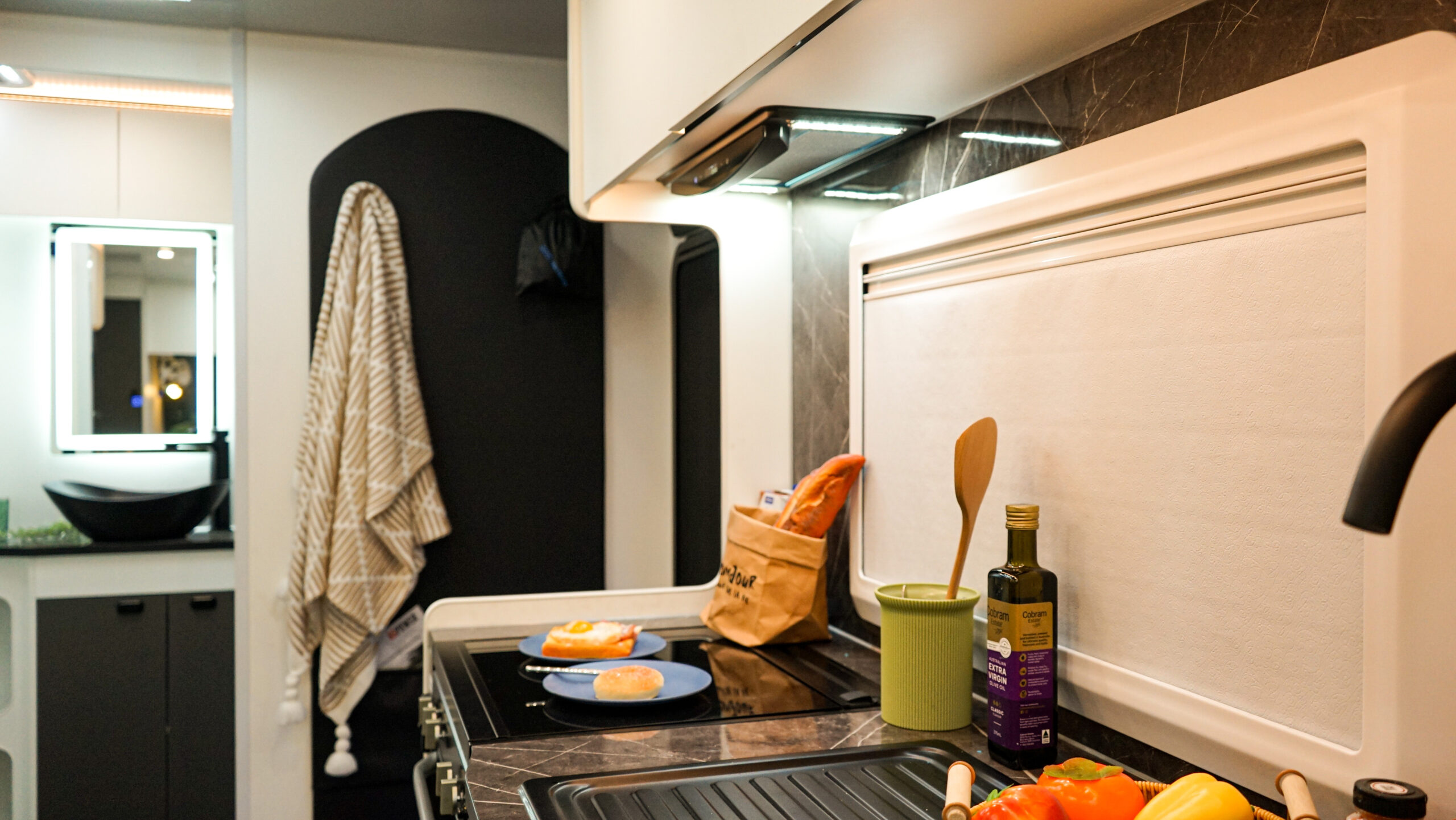

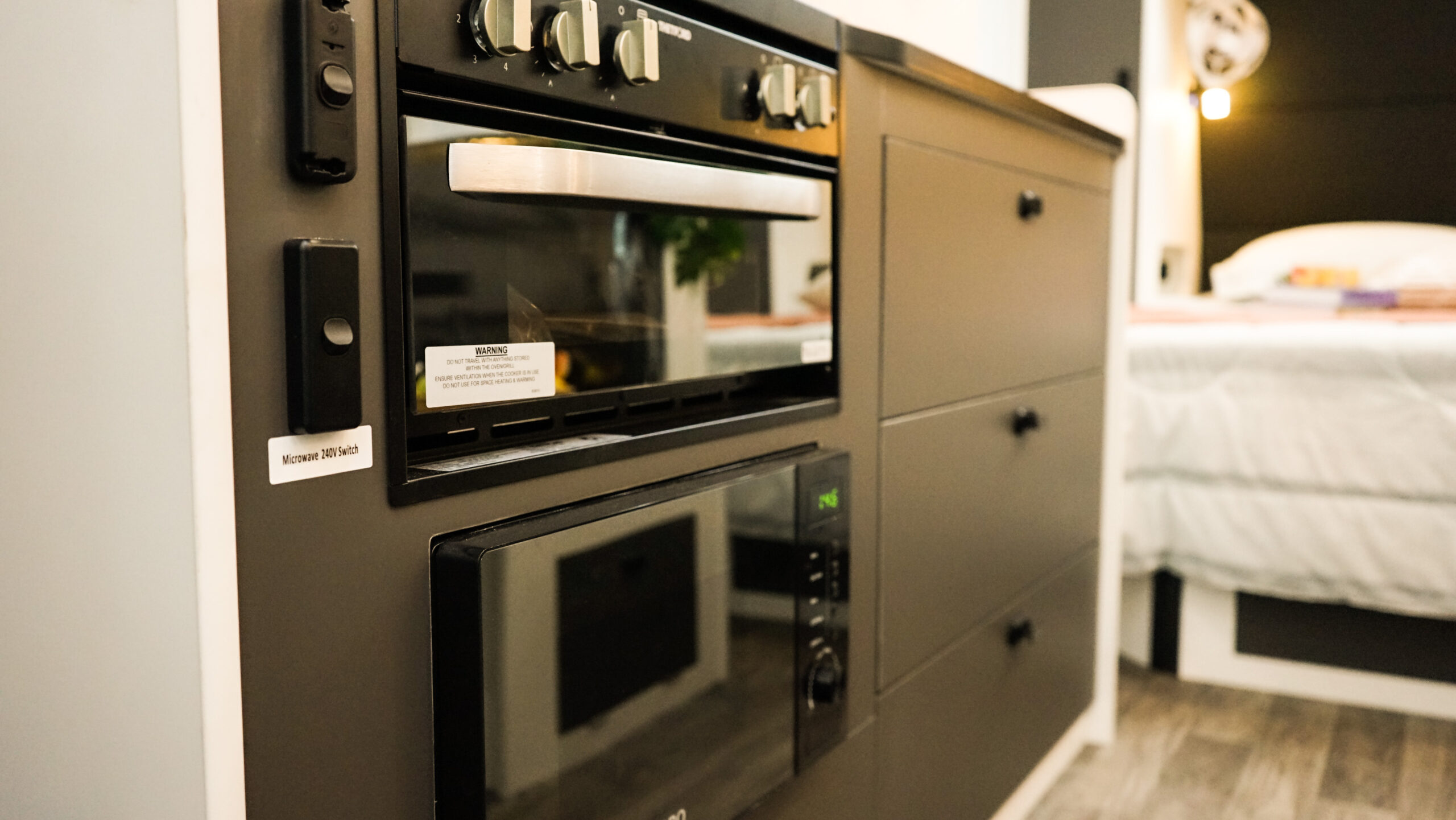

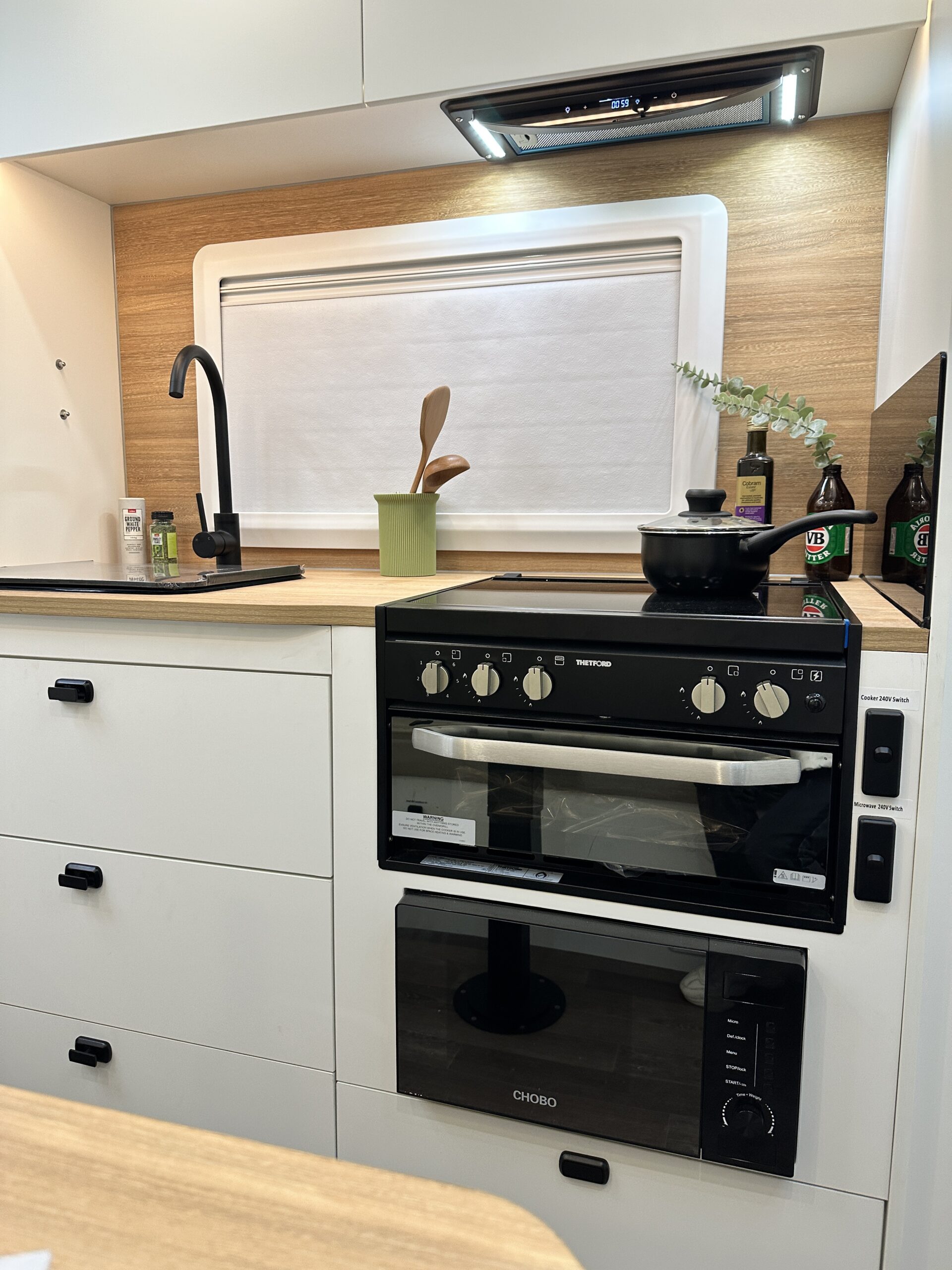

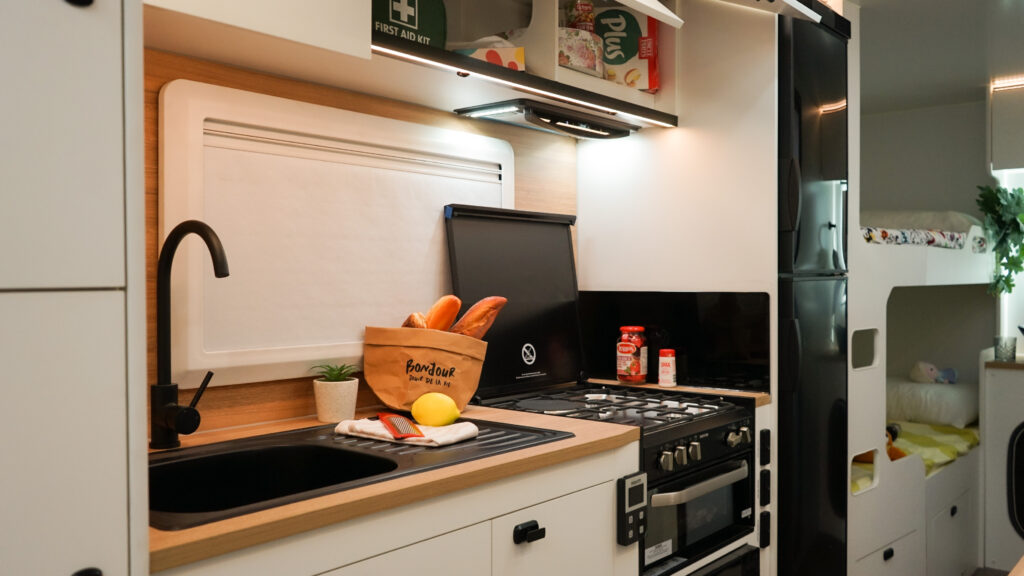

Cook a real meal
Four burners and a grill give dinner enough room to be dinner, not a one-pot workaround.

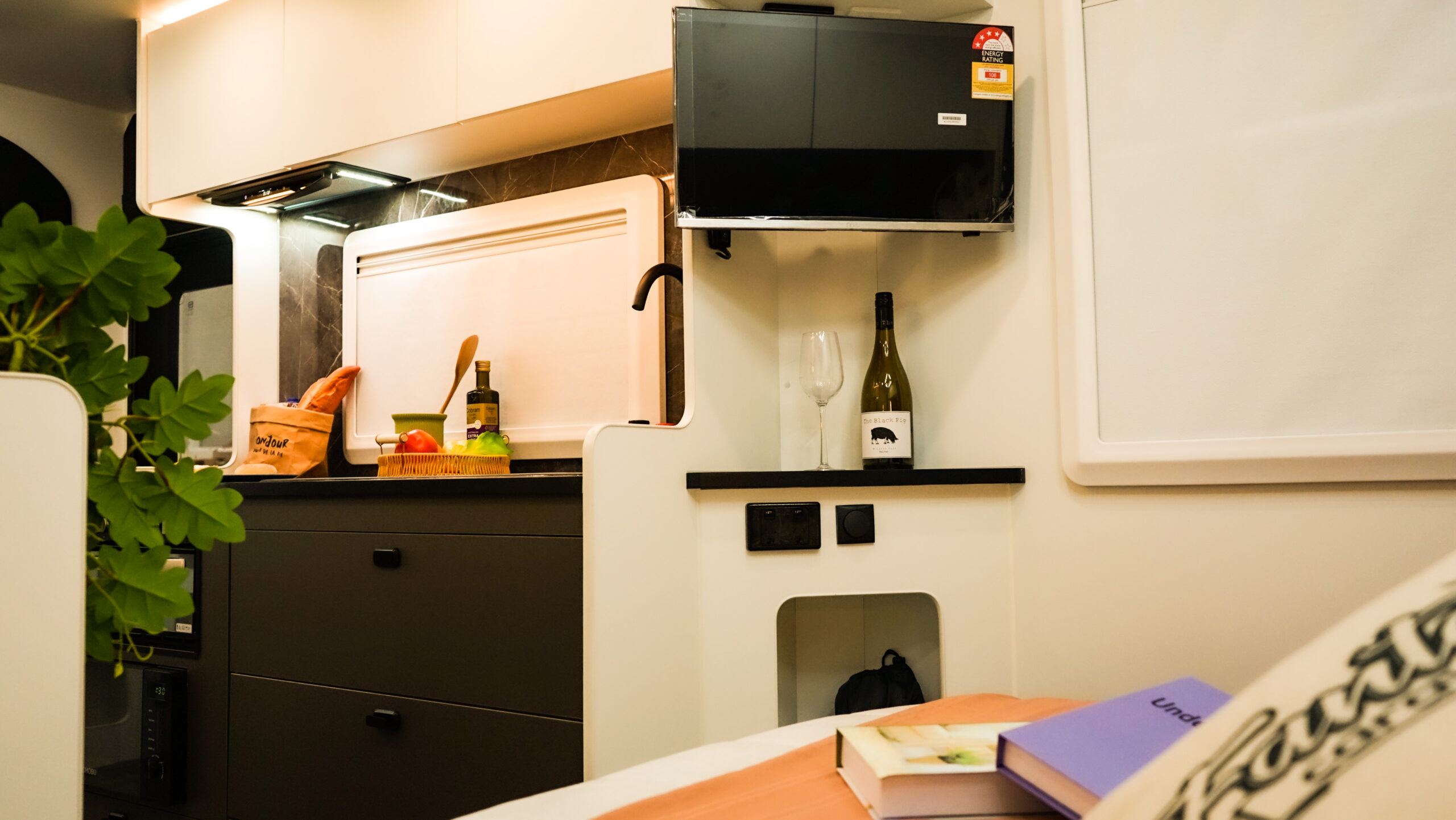

Power where you sit

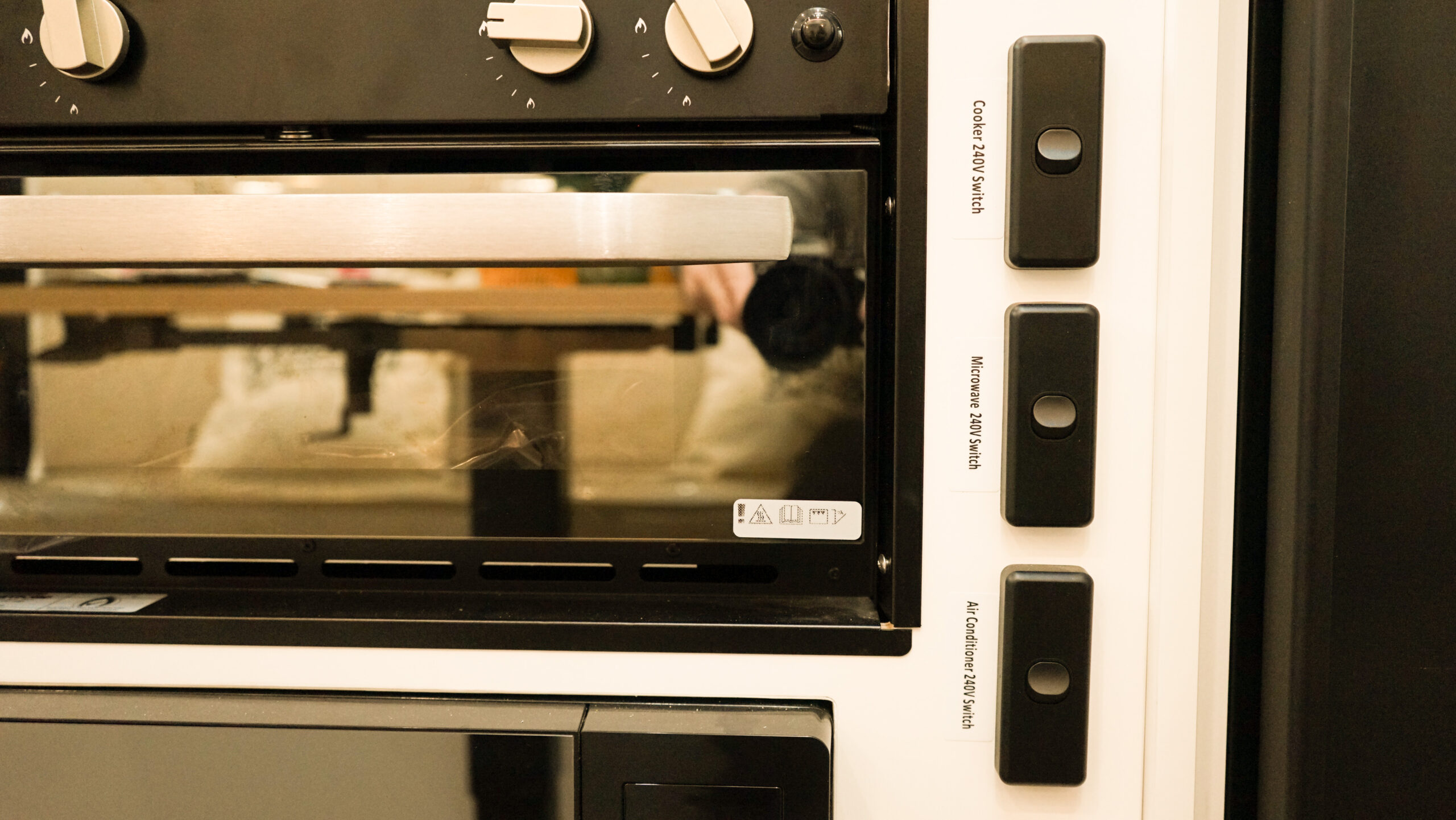

240V and 12V outlets at the lounge and bedside keep everyday charging close at hand.
Wind down
A long day should end comfortably, not with another compromise.

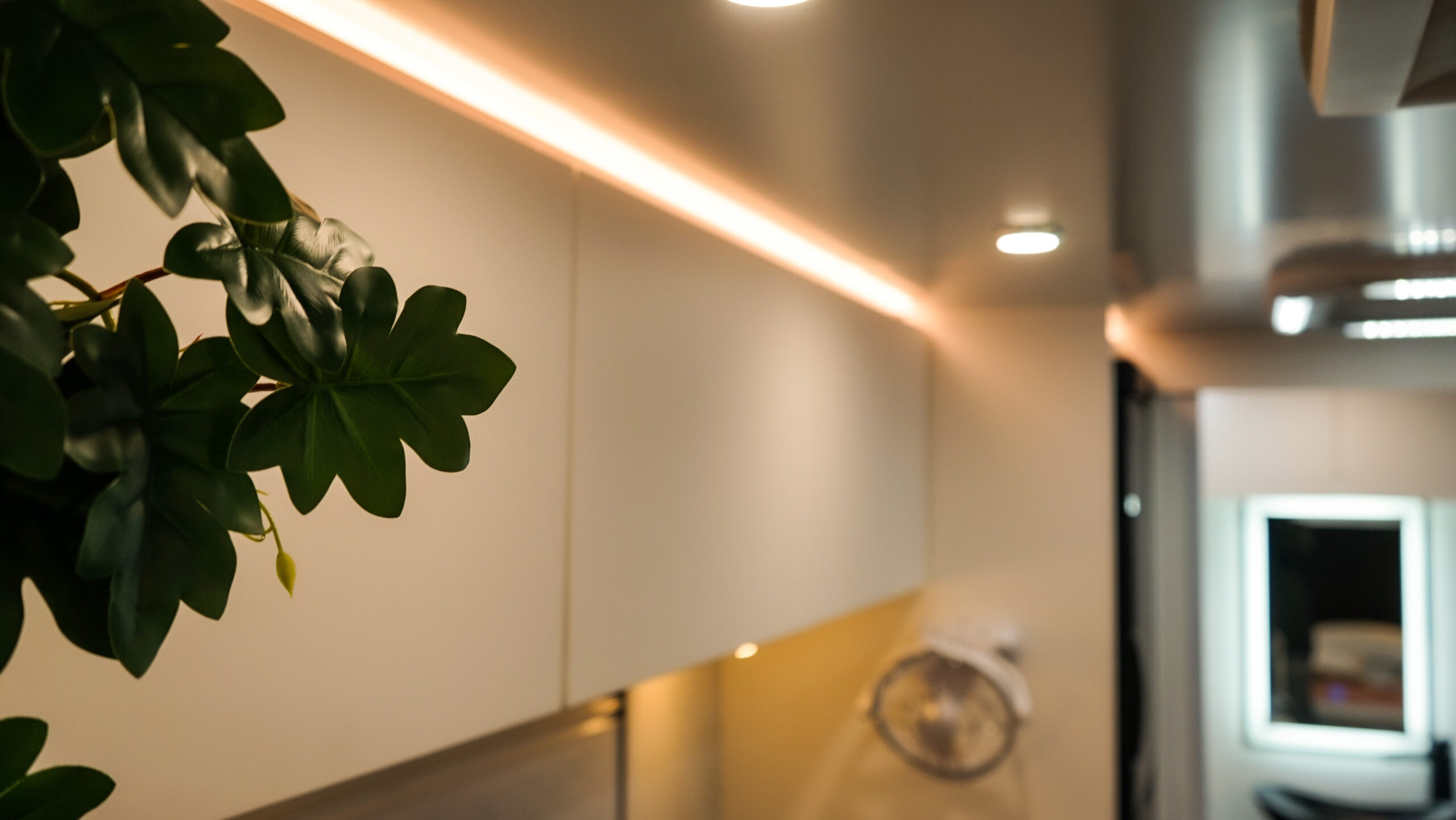

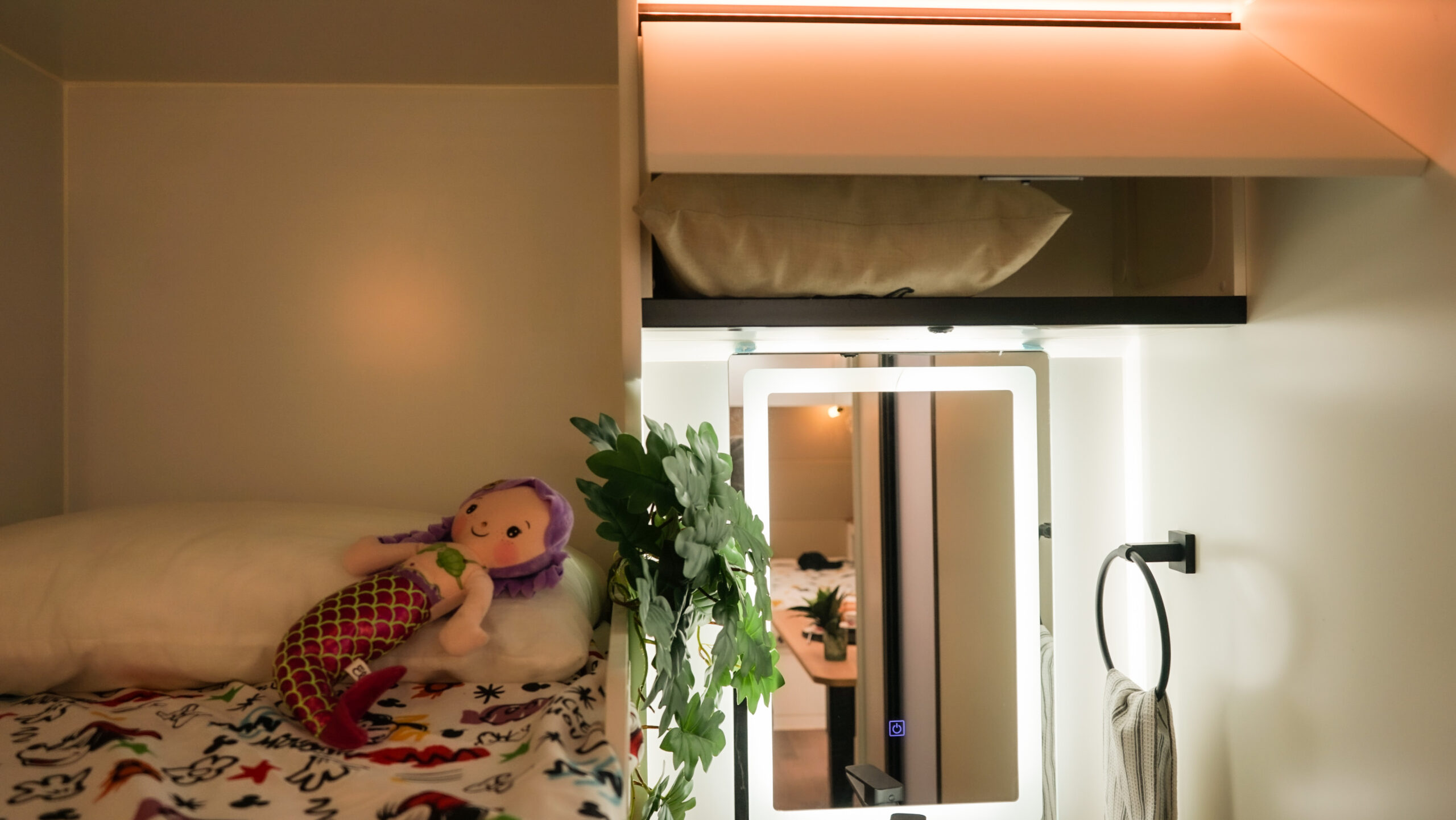

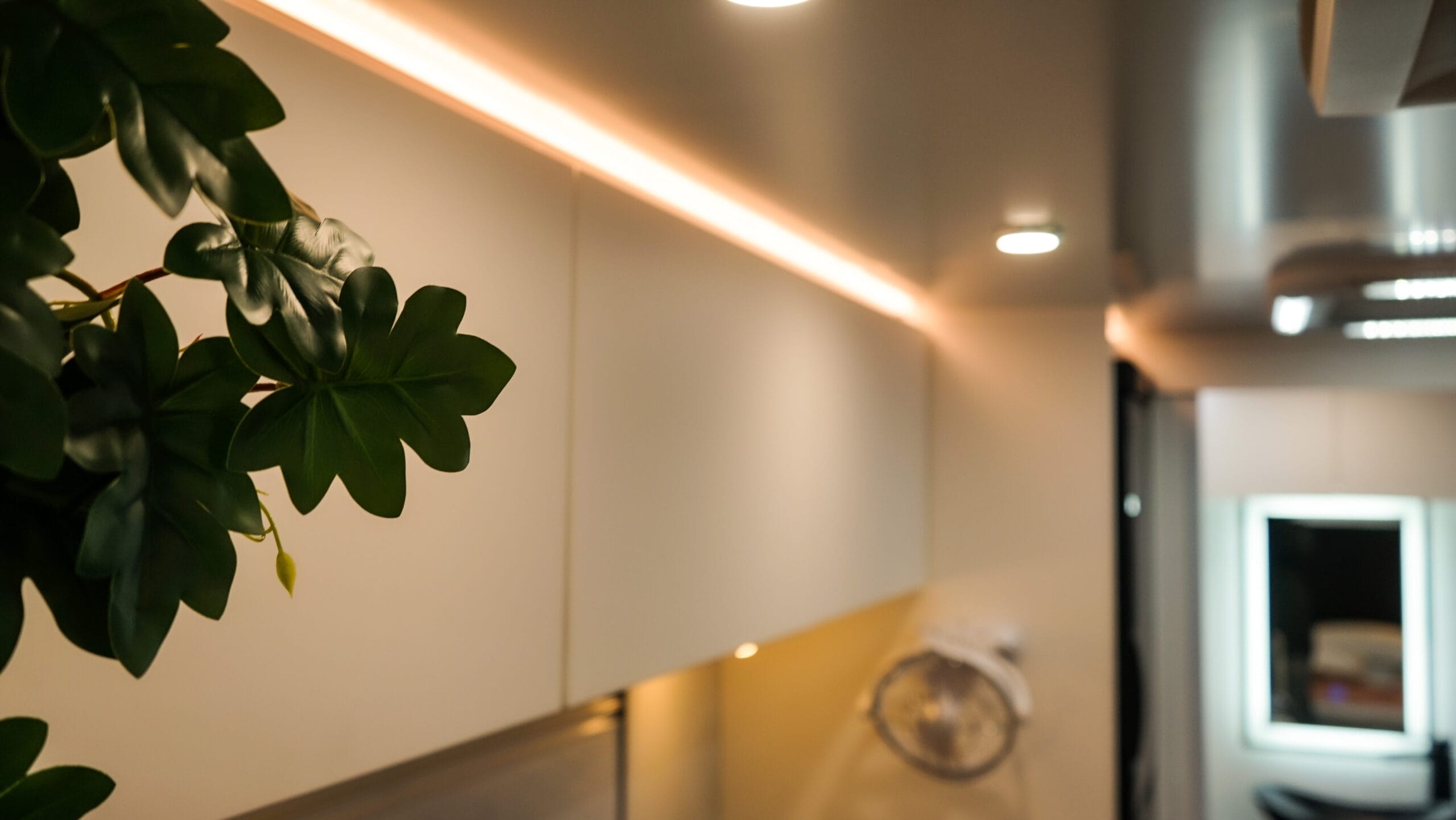

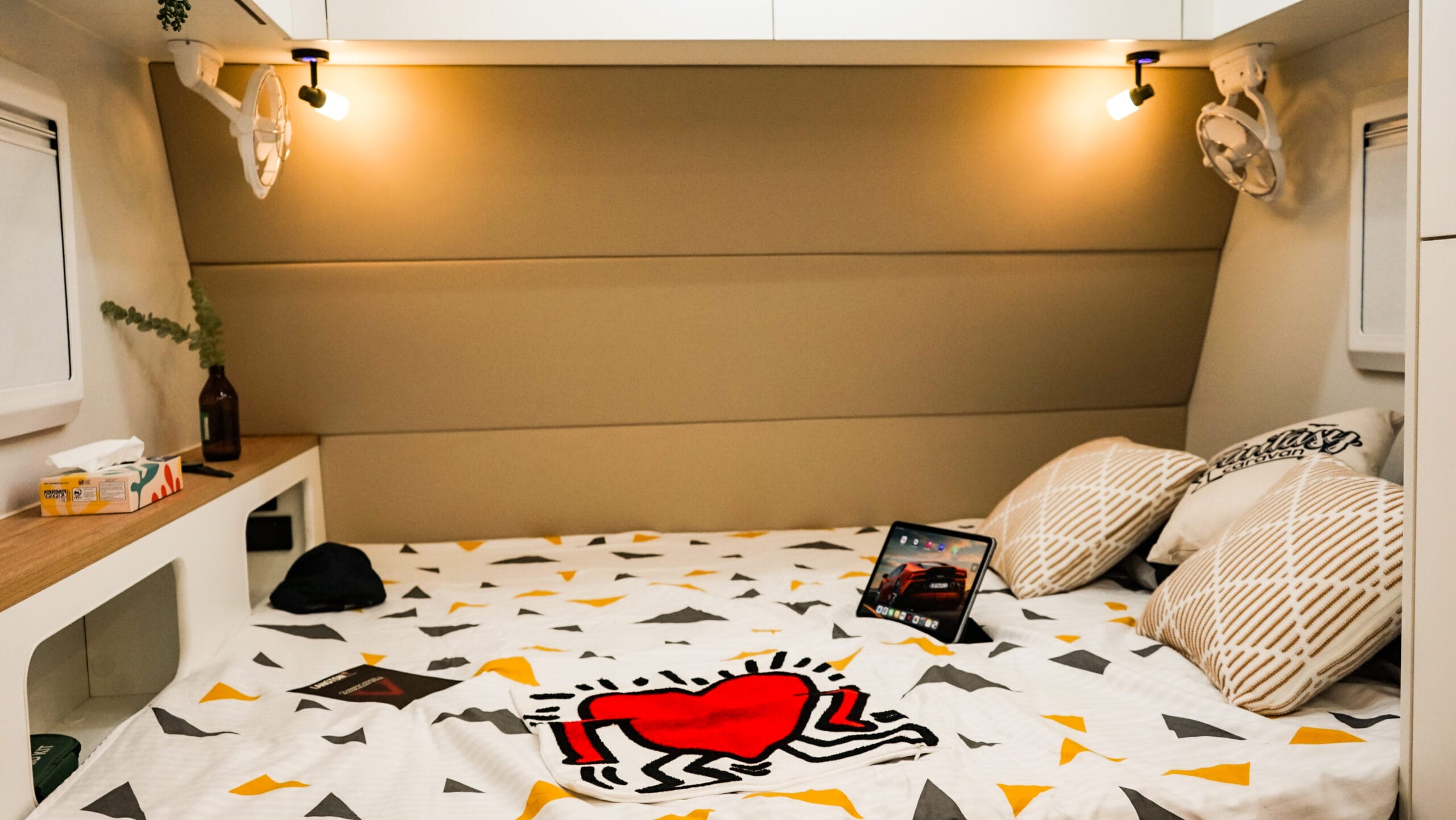

Light for the quiet hours
Direct task light and softer ambient light make the night routine calmer and easier to use.

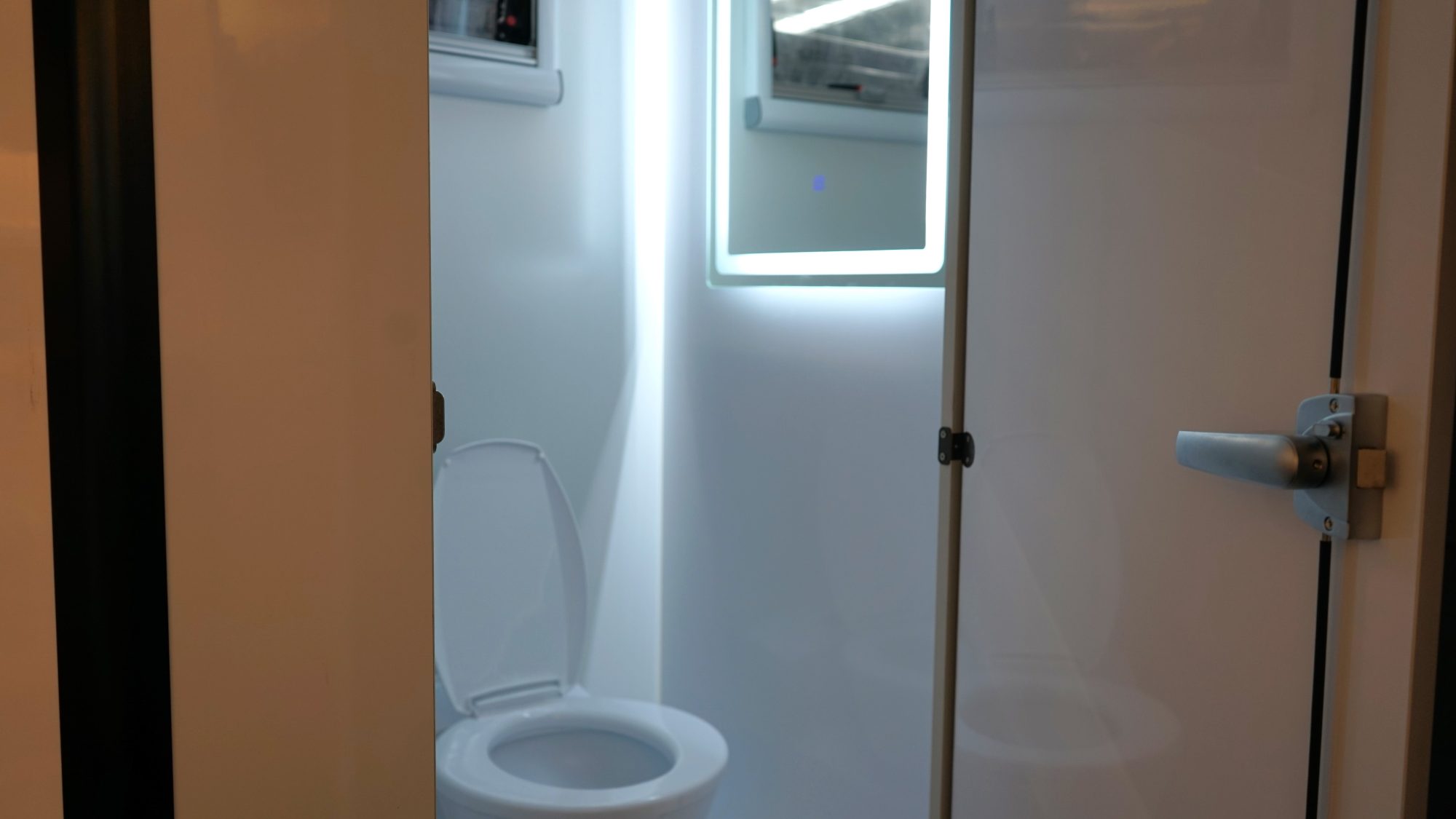

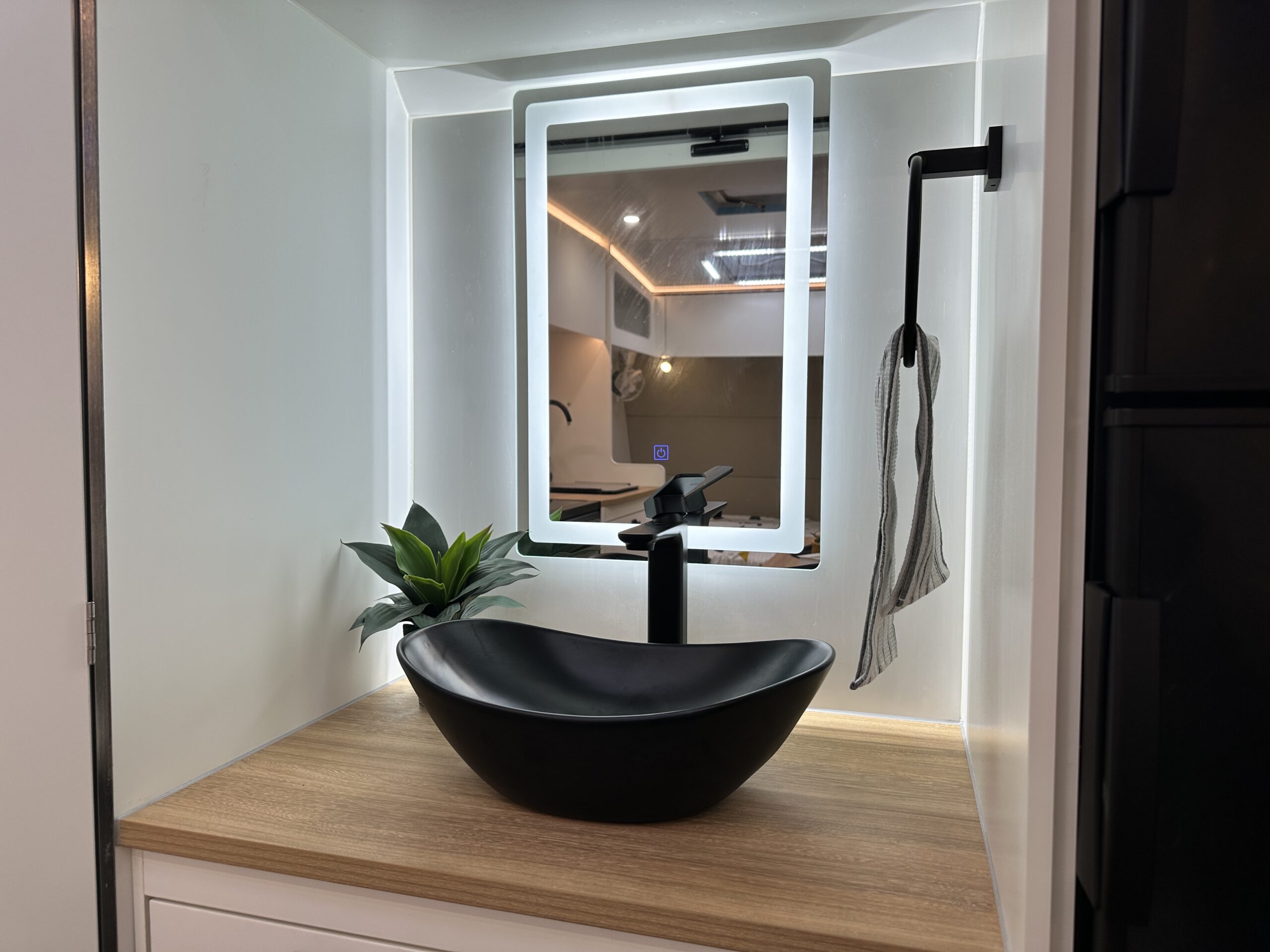

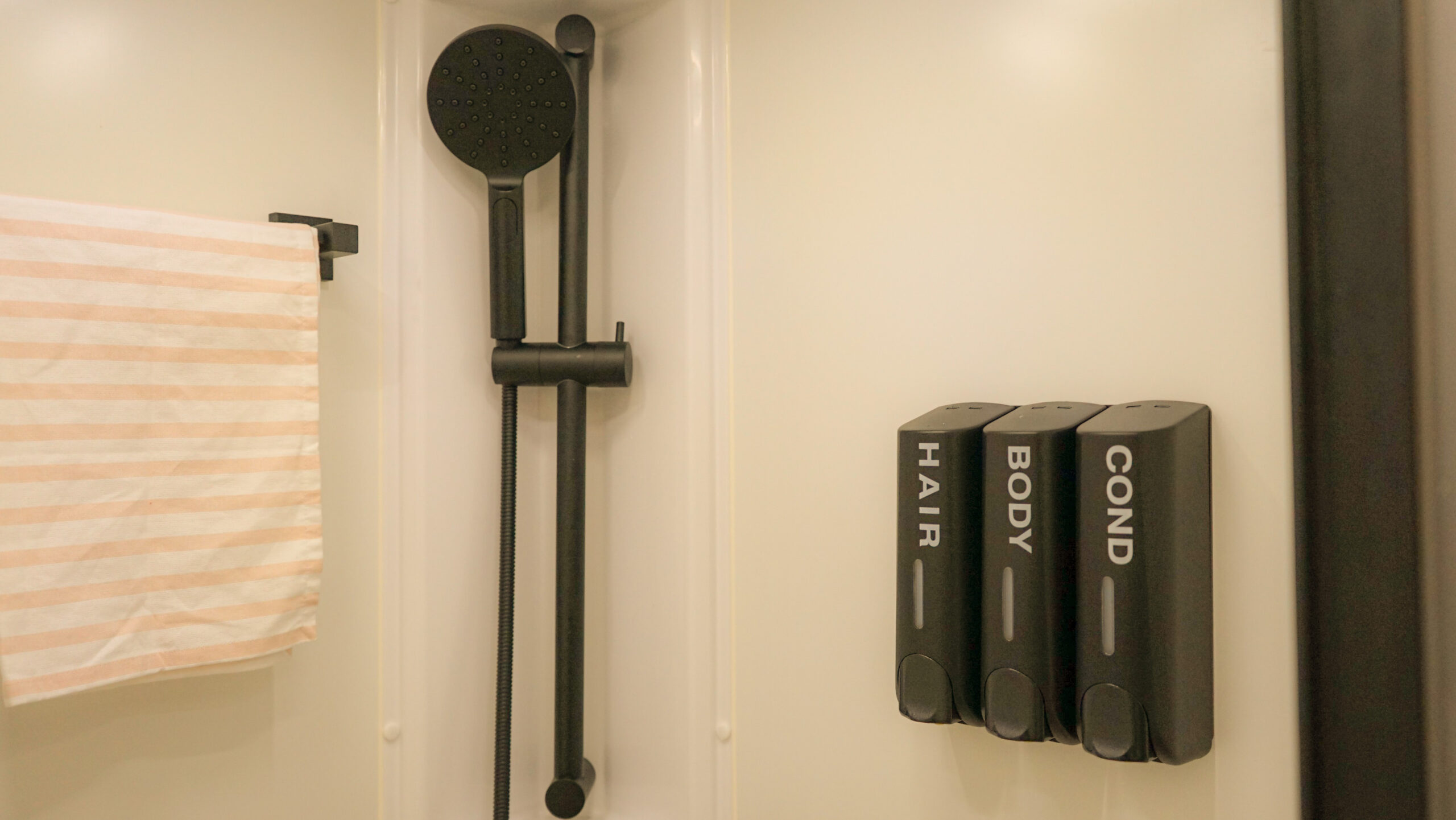

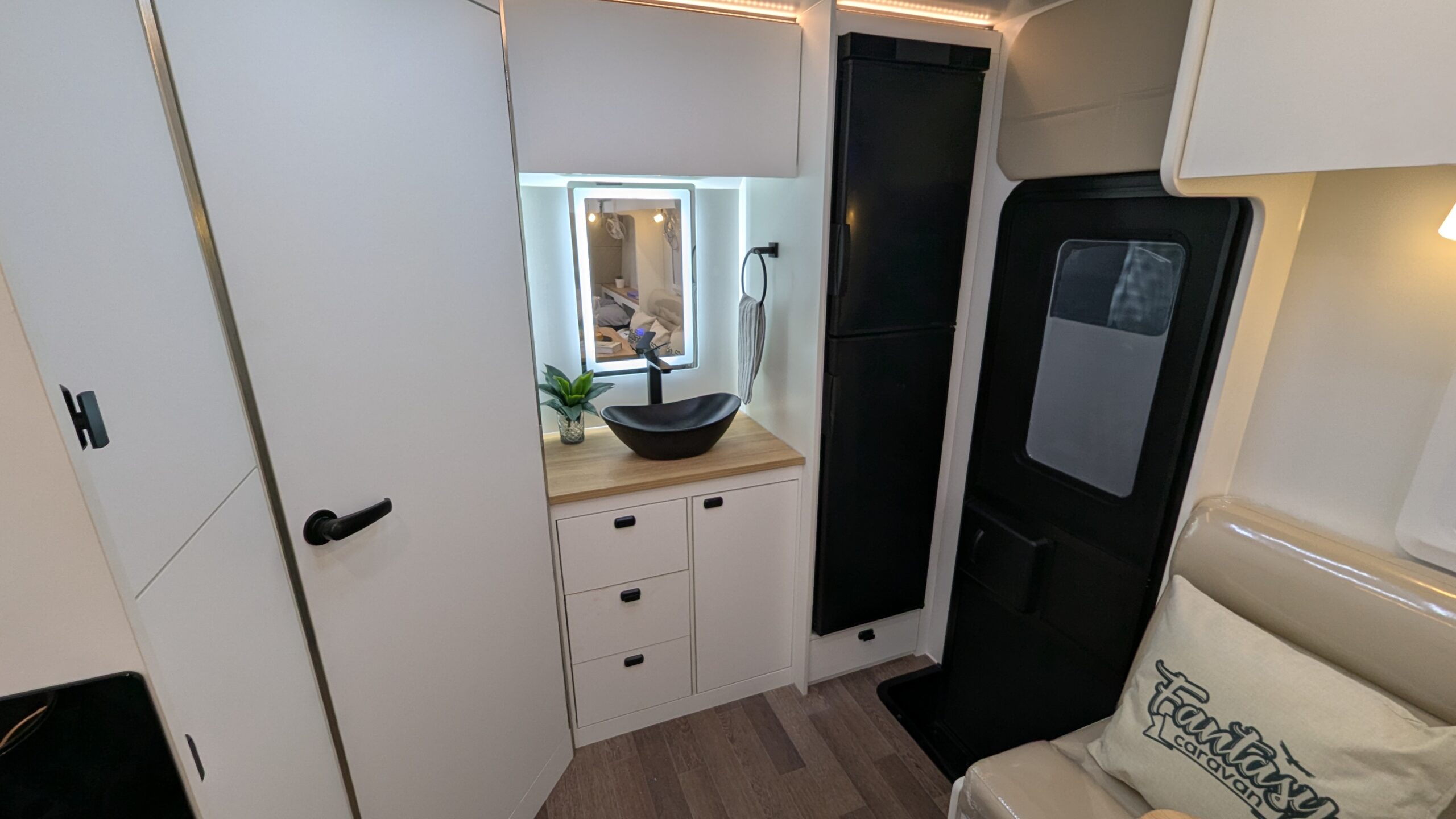

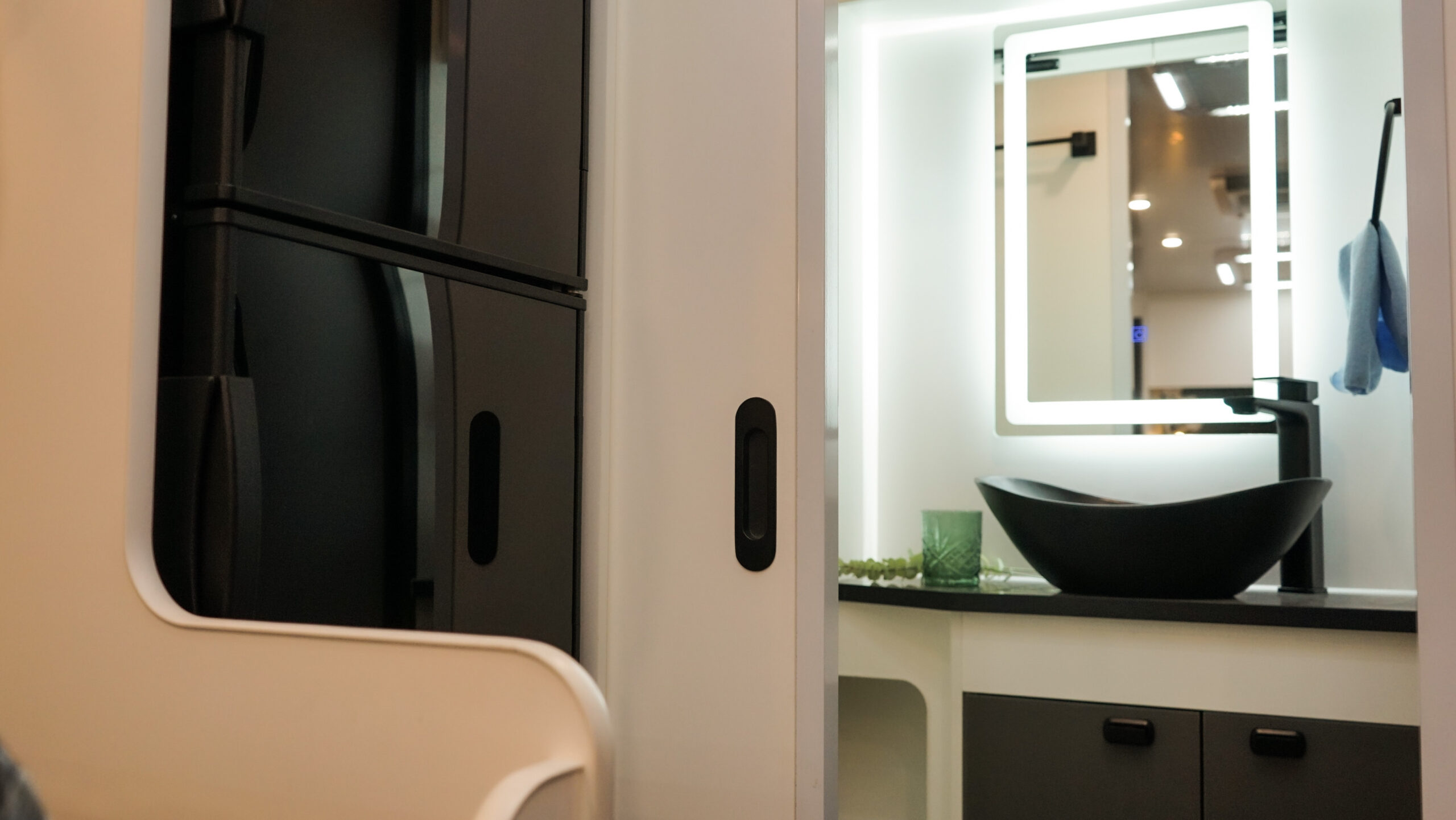

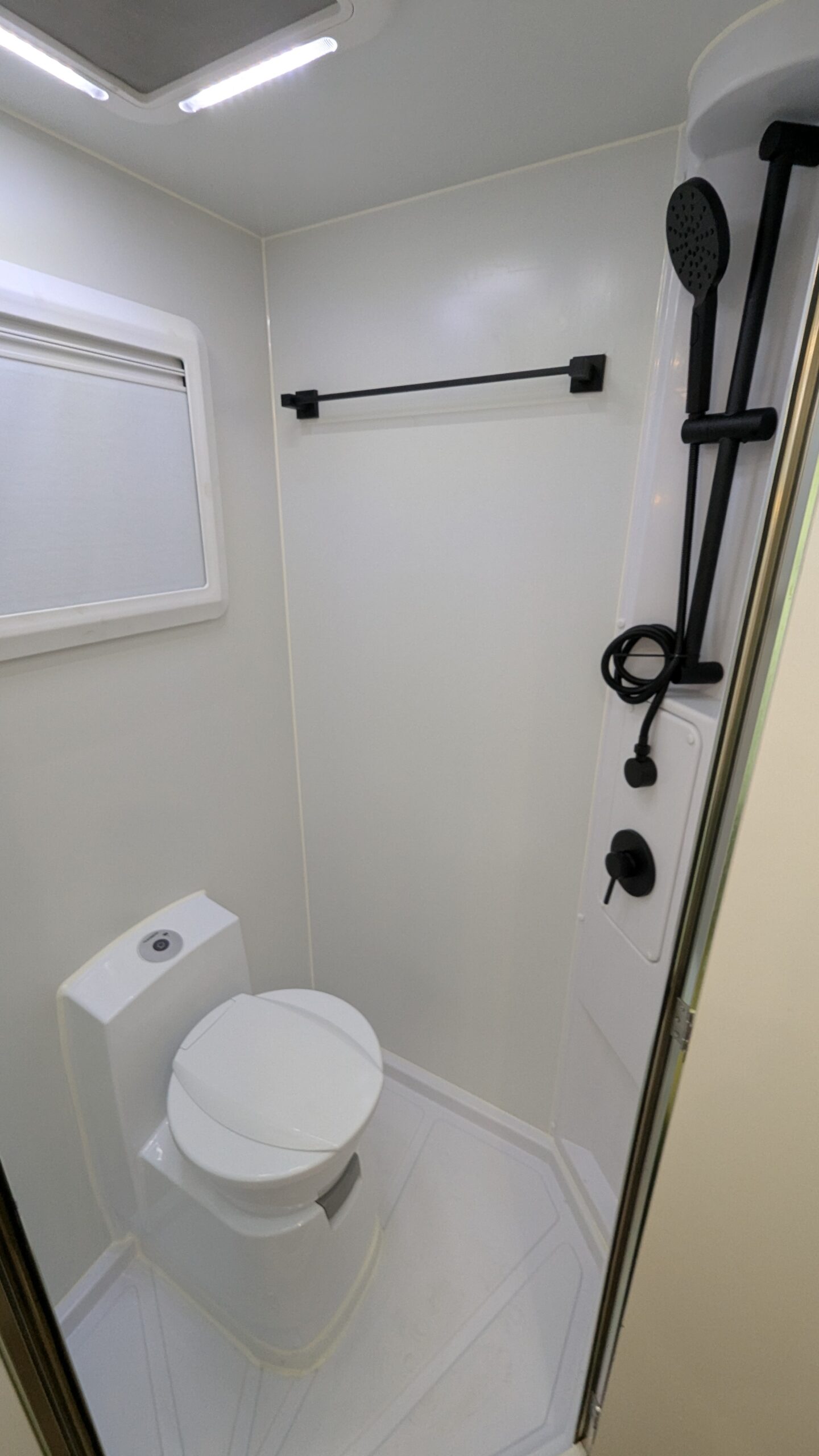

Hot water, ready when you are
A proper shower space helps you reset after the road, without making the routine feel like a camp workaround.

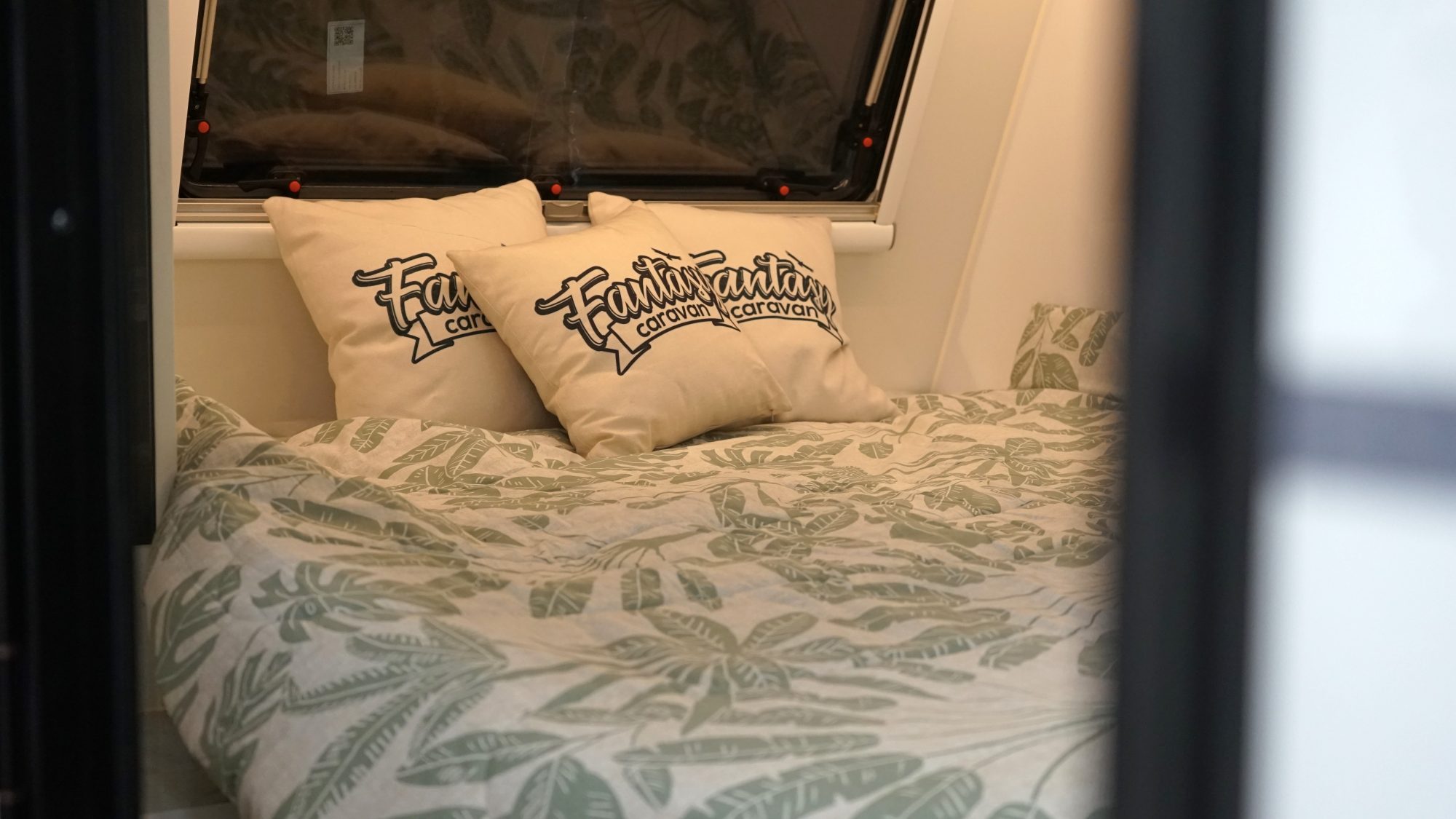

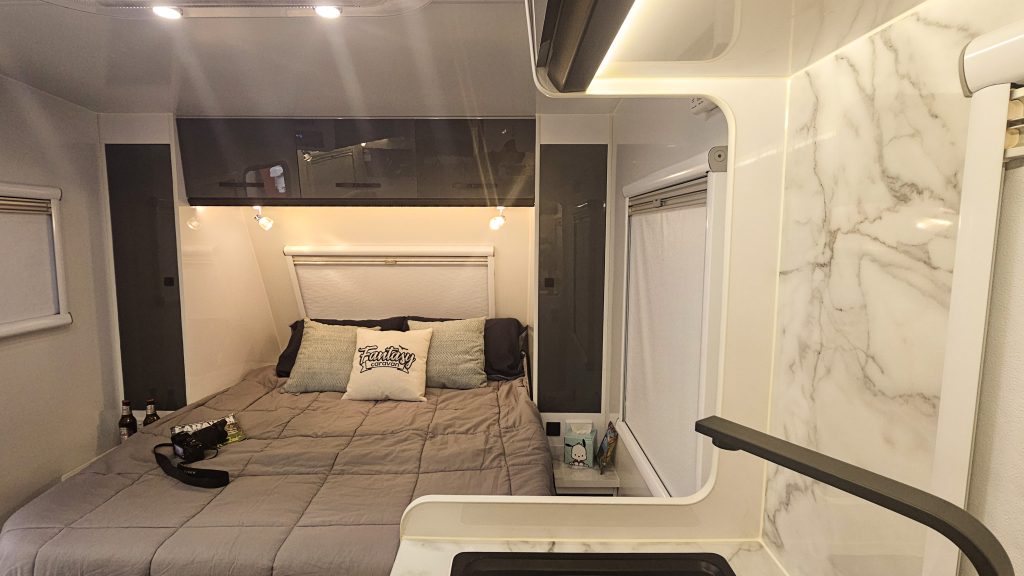

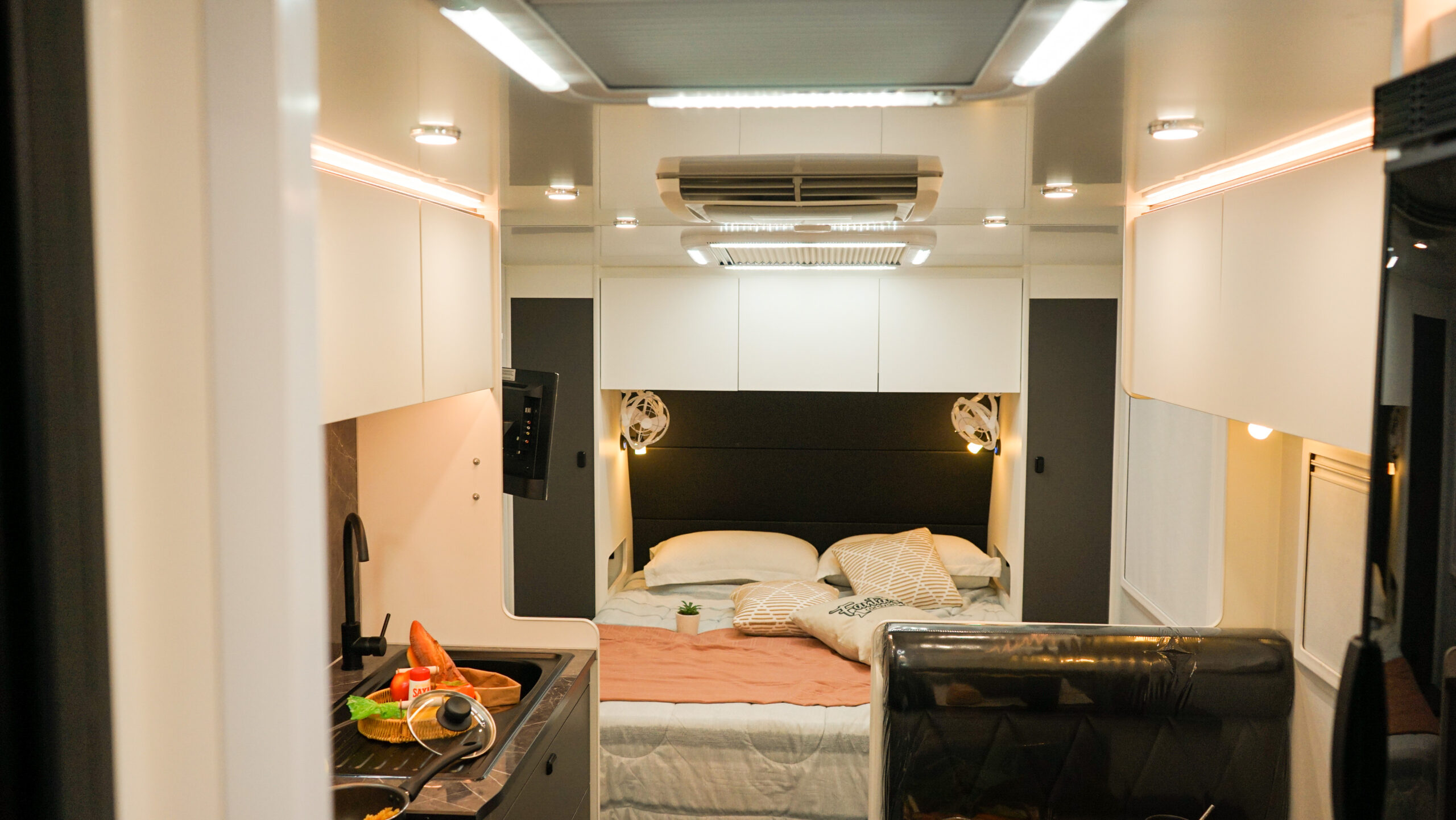

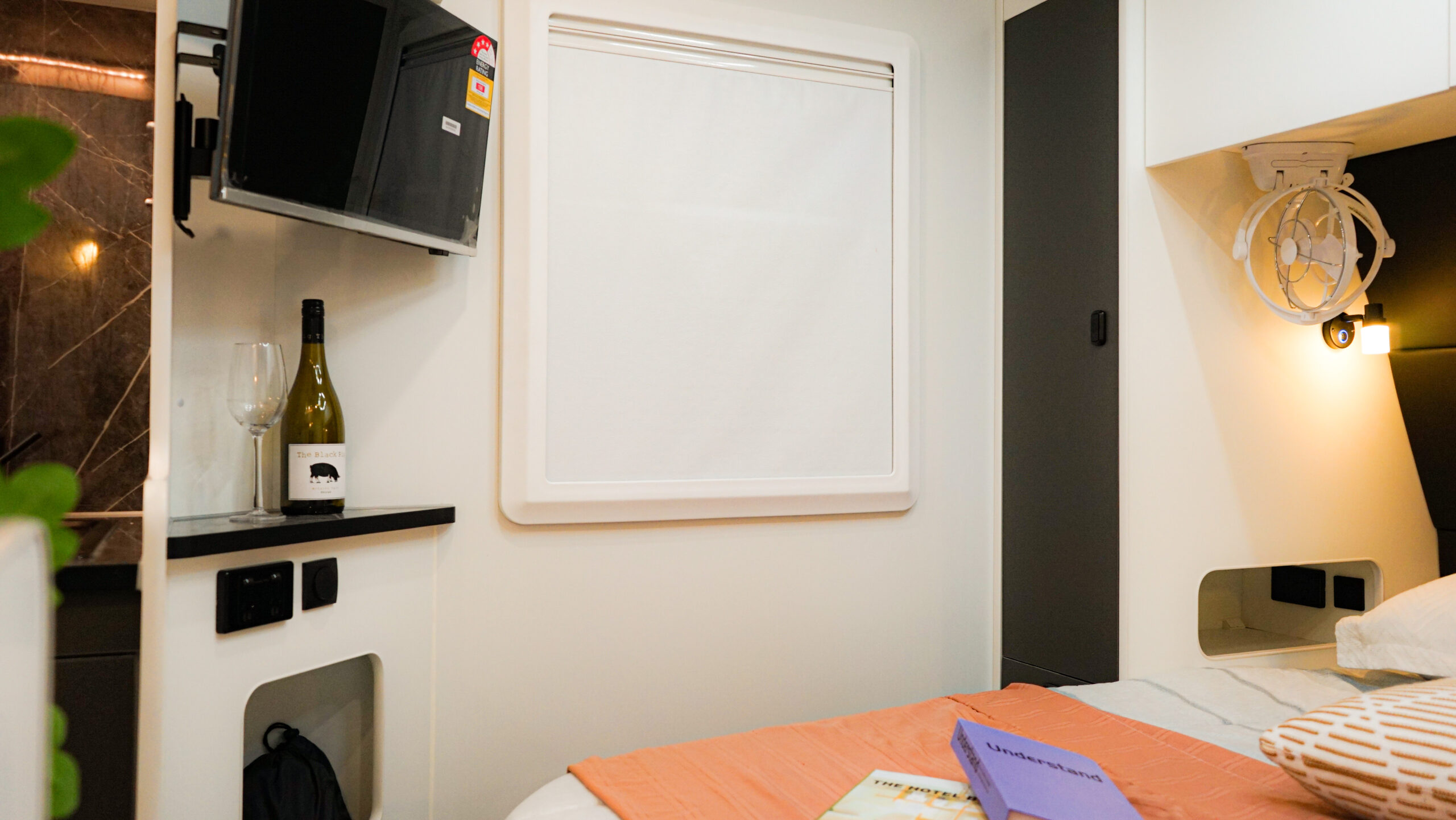

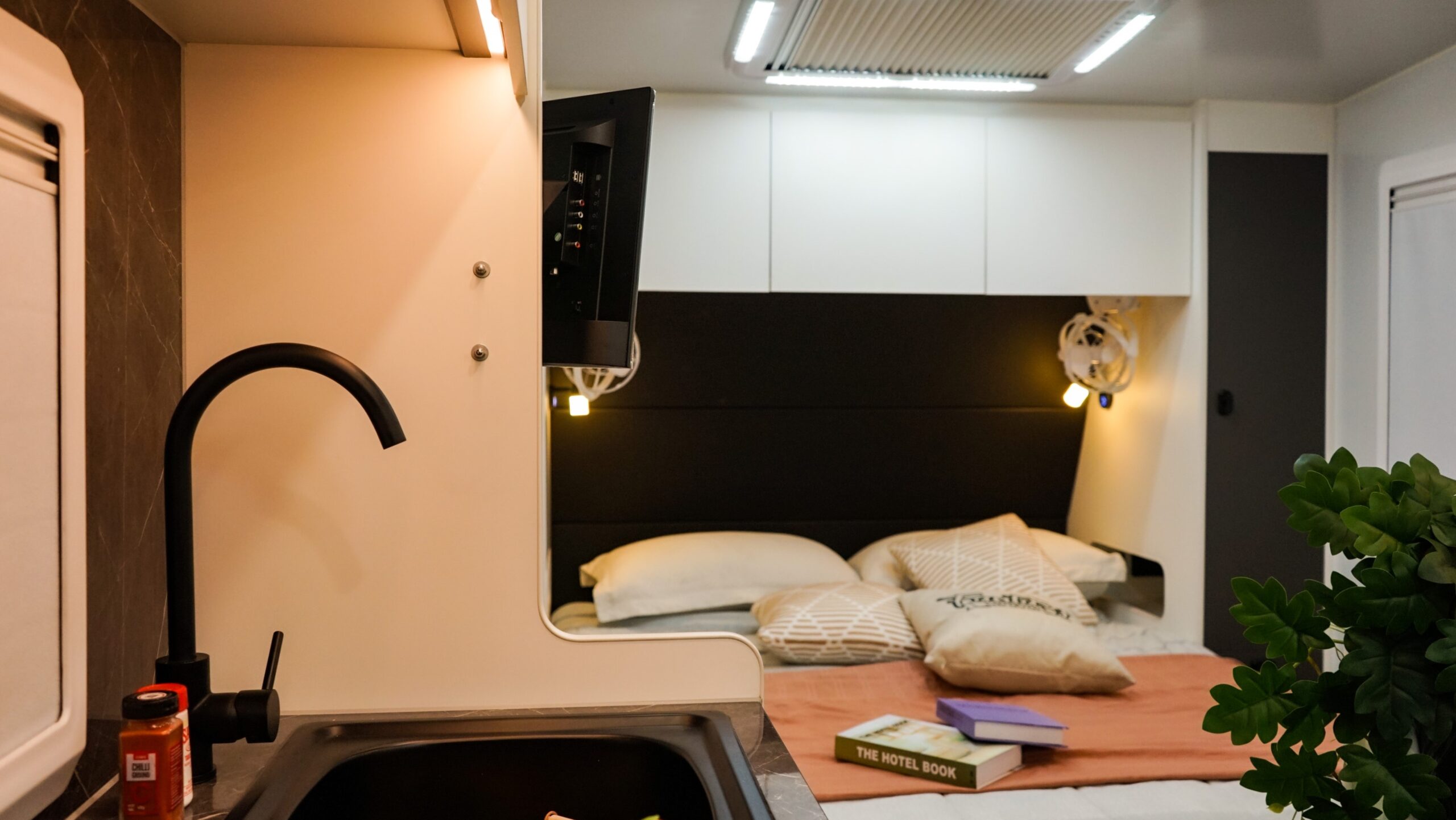

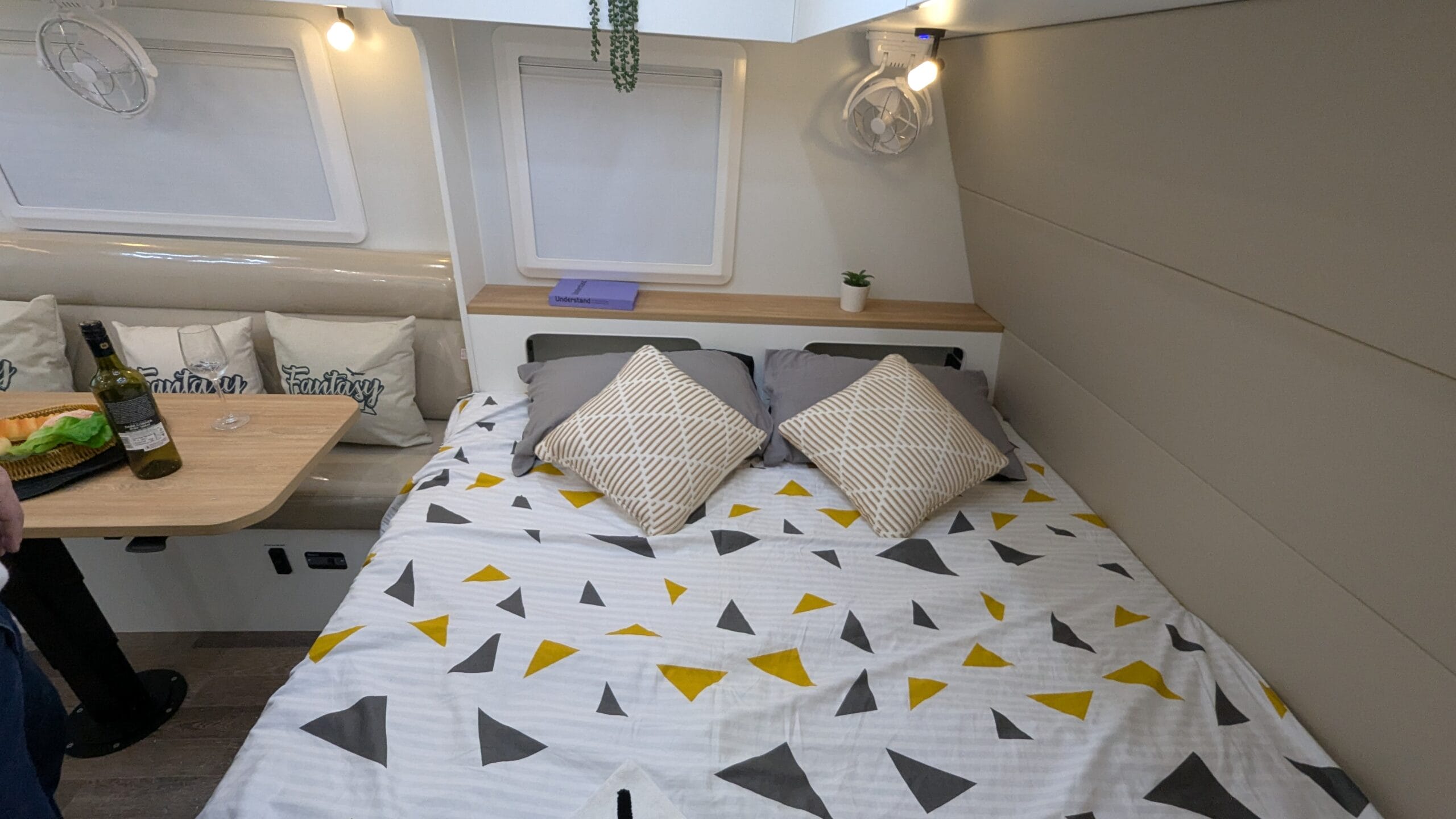

A bed for a full night
Pillow-top comfort over a supportive base gives sleep the attention it deserves after a long day.
Put away
What you bring should have a place to go.

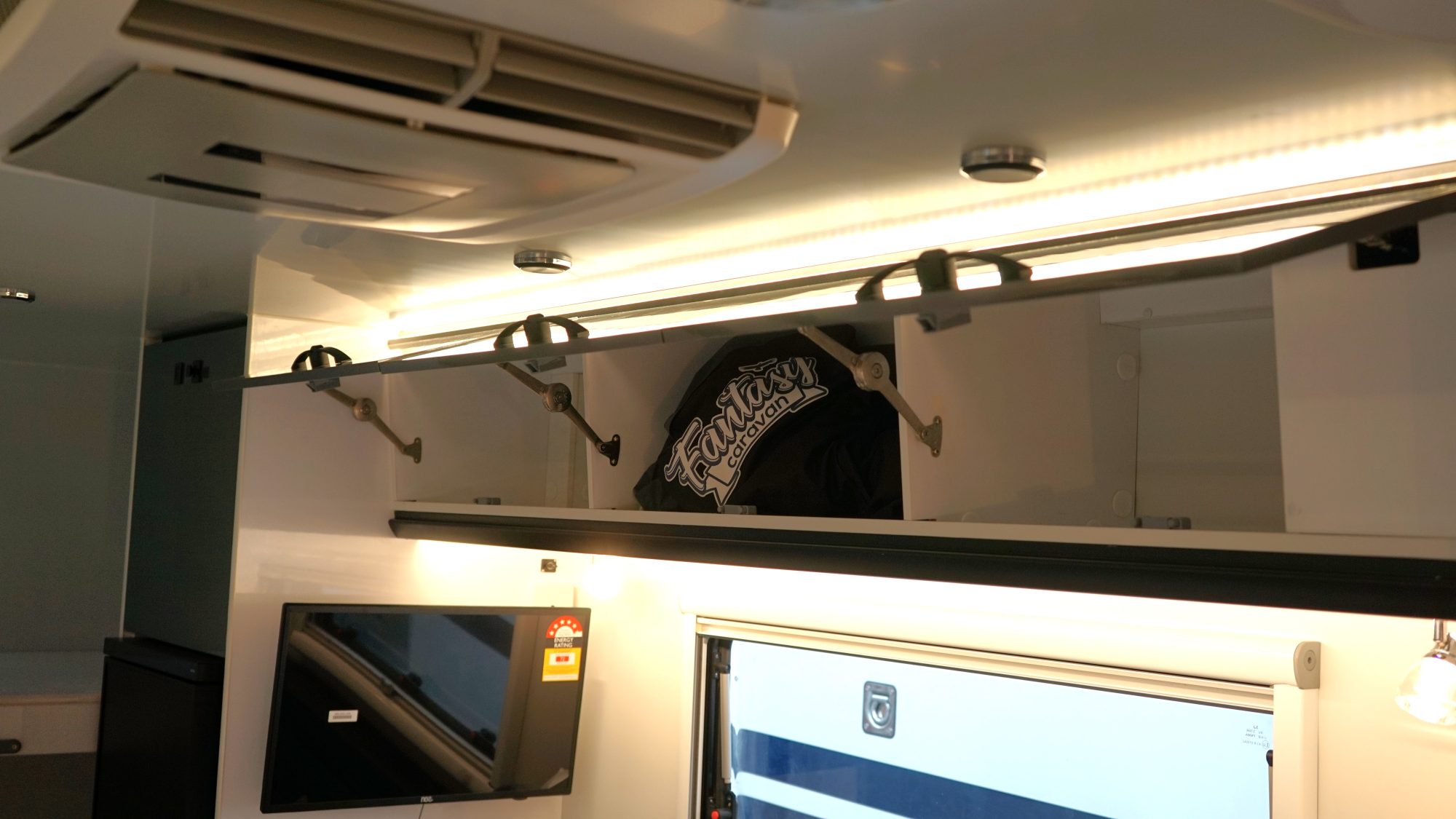

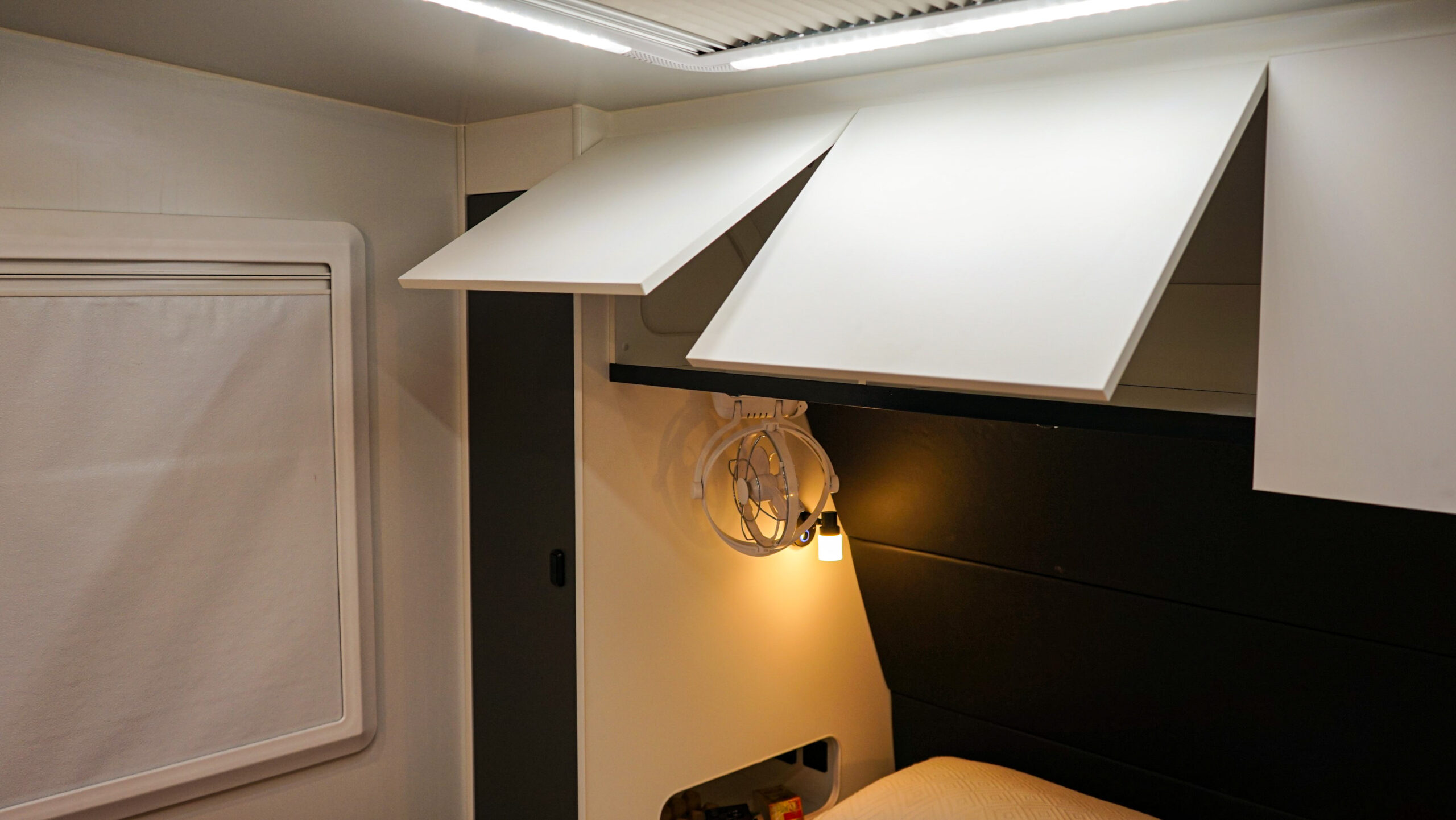

Corners that earn their space
Well-used cupboards keep small essentials tidy, leaving the worktop and walkway clear.

Storage under the seat
Day-to-day items can sit beneath the lounge, close enough to use and out of the living space.
Sleeps 2
185L Fridge
200AH Lithium
400w Solar
Detailed Specifications
| ATM | 2500 KG |
| Tare Mass | 1780 KG |
| Ball Weight | 120 KG |
| Length | 6525(mm) |
| Width | 2430(mm) |
| Height | 3065(mm) |
Chassis
- Chassis: 4”
- Drawbar: 6”
- Suspension: Torsion 2.5T (Single)
- Tyres: 265/75 R16 AT
- Rims: 16” Alloy
- Brake: 12” Electric
- Coupling: 50mm Ball
- Jockey Wheel: 8”
- Jack: Kojack 4T 750mm
- Gas Bottle Holder: 2 x 9kg
- Jerry Can Holder: 2
- Step: Manual Single
Appliances

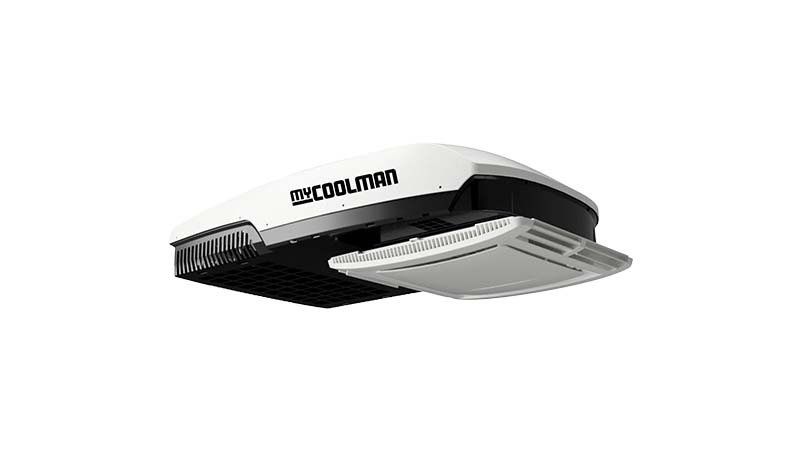

- Air Conditioner: Rooftop Reverse Cycle
- Fridge: 185L

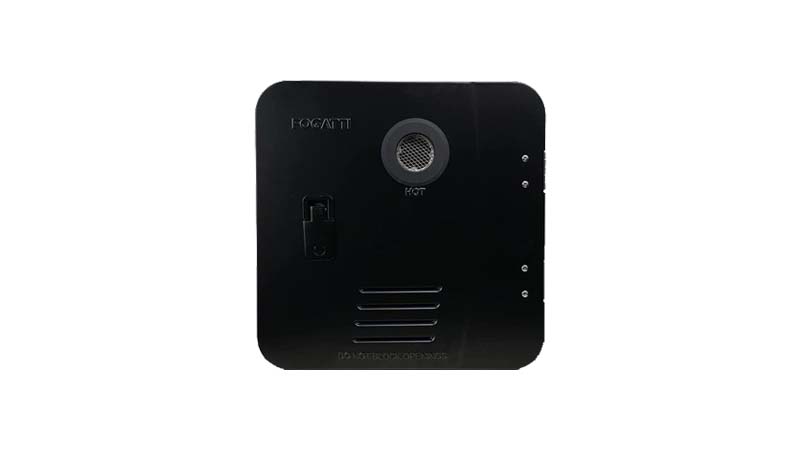

- Hot Water System: Fogatti Instant 7L
- Stove: Thetford K1540

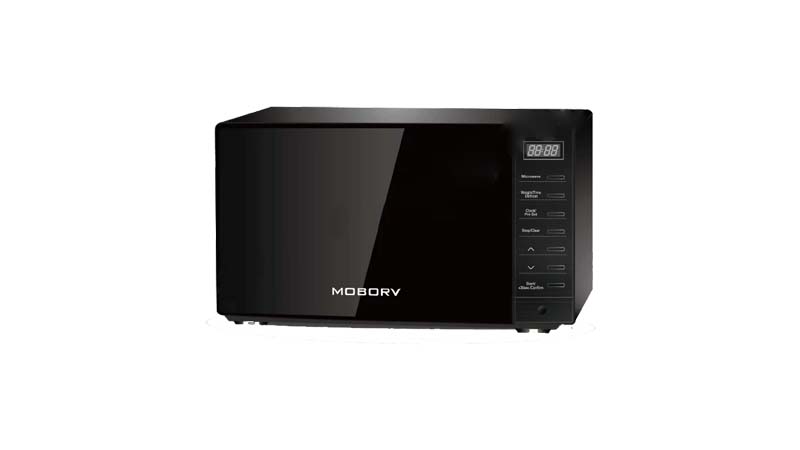

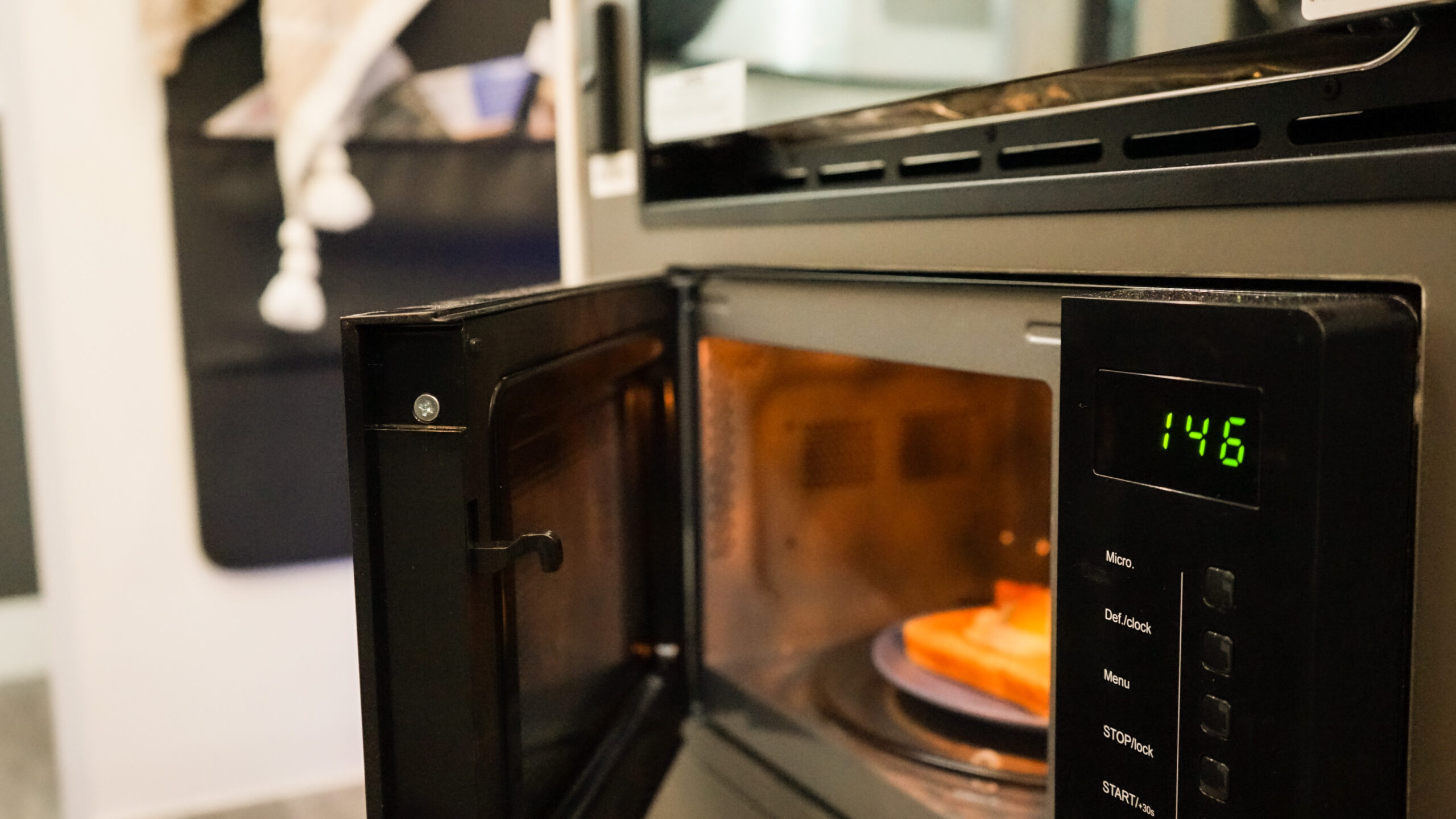

- Microwave: 20L
- TV: 24” Smart TV
- Smoke Alarm & Fire Extinguisher: Yes
- Stereo: OEM
- Speakers: 2 x Internal
- TV Antenna: Omni-Directional
Electrical

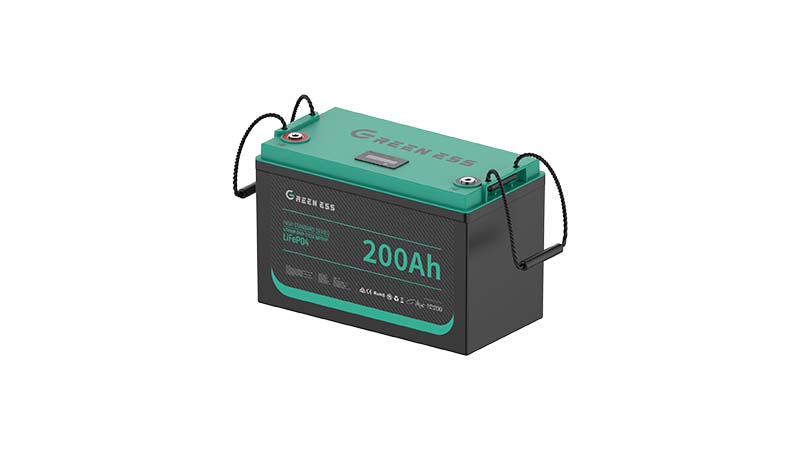

- Battery: 200AH Lithium
- Solar: 400W
- Inverter: Renogy 2000W
- DCDC Charger: RENOGY 40A
- Power Management: PROJECTA PM200
- Power Outlets: 240V / 12V / USB
- Reverse Camera: Wireless with Screen
- Trailer Plug: 7-Pin Flat with Anderson
- Ambient Lighting: LED Strip Lights
Plumbing
- Fresh Water Tank: 1 x 95L
- Grey Water Tank: 1 x 95L

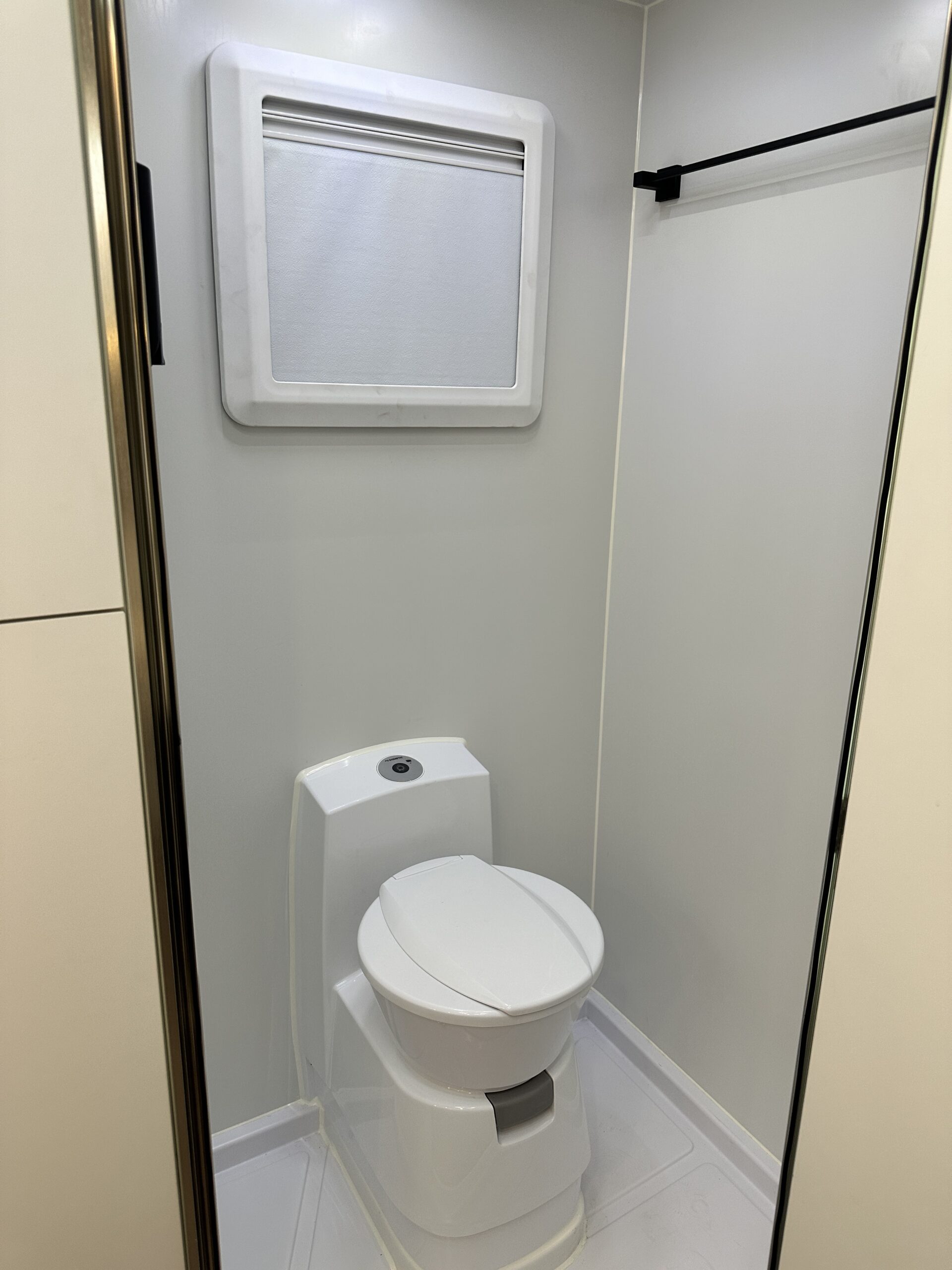

- Toilet: Dometic Swivel Cassette
- Water Pump: 12V
- Mains Water Inlet: Yes
- Tap on Drawbar: Yes
External
- Insulation: XPS Foam
- Windows: Flat Double Glazed
- Awning: Manual Roll Out
- Roof Hatch: 2 with Light
- Ensuite Hatch: Yes
- Stone Guard: Yes
- BBQ Gas Point: Yes

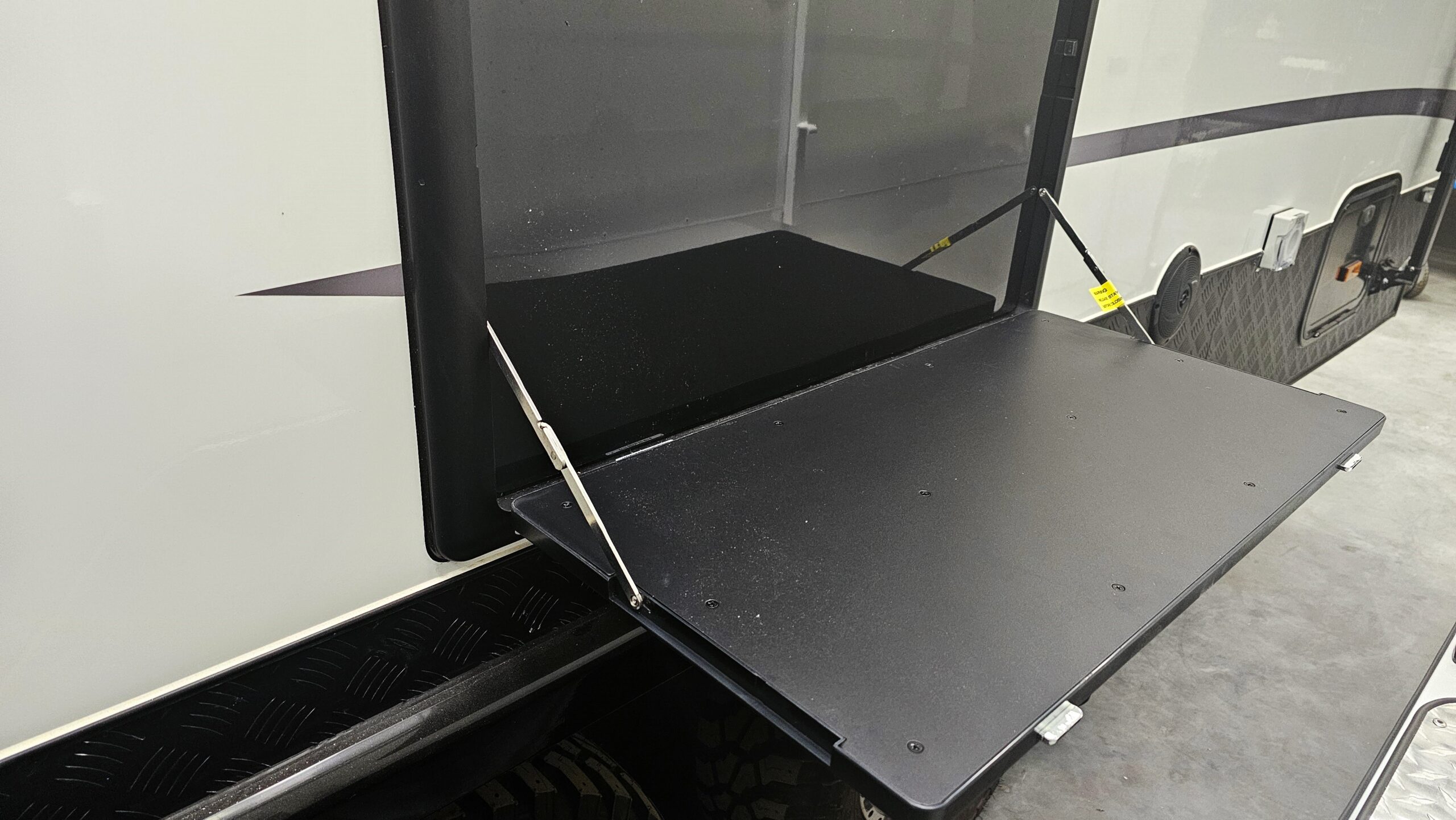

- Picnic Table: Yes
Internal
- Sleeps: 2
- Mattress: Queen (1640 x 2000 mm)

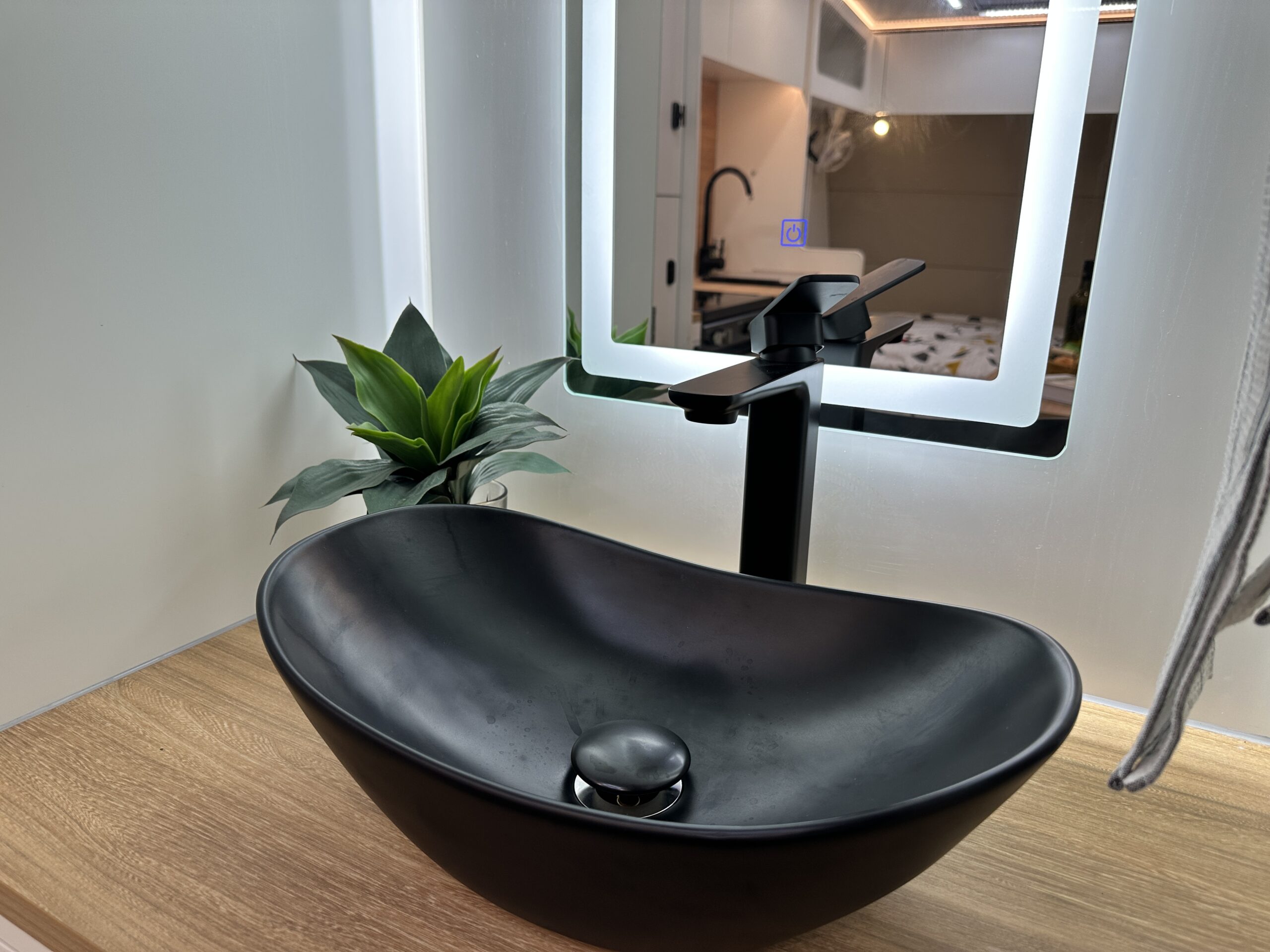

- Ensuite Basin: Yes
- Swivel Fan: Multiple
ENERGY & CONTROL
Stay longer. Think about it less.
Keep everyday life moving away from powered sites with a complete energy system, where charging, storage and control work together as one.
While you drive

Charge while you tow
A 40A DC-to-DC charger turns driving time into charge time, keeping energy coming in while you cover the kilometres.

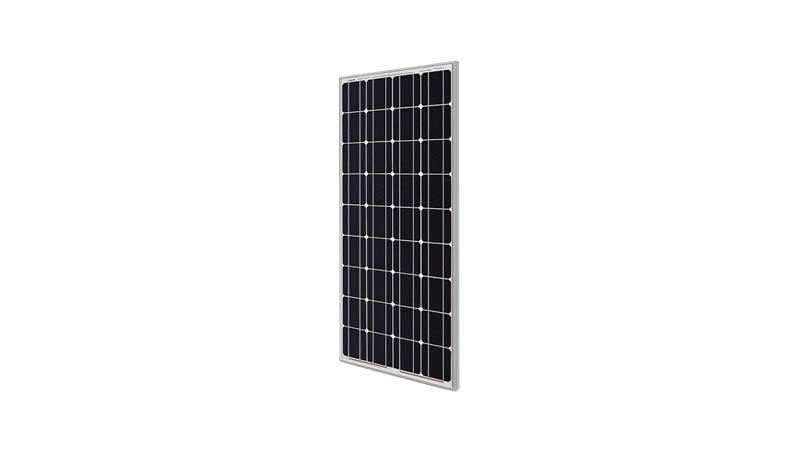

Let daylight do its part
400W of roof-mounted solar continues to top up the system while you are stopped, without unfolding panels or chasing the sun.
When you stop

Keep the everyday going
A 200Ah lithium battery and 2000W inverter work with the charging system so the things you use every day can keep working away from a powered site.
Plug in when it suits
At a powered site or at home, the 15A inlet and RCD protection let you connect once and leave the sensible work to the system.

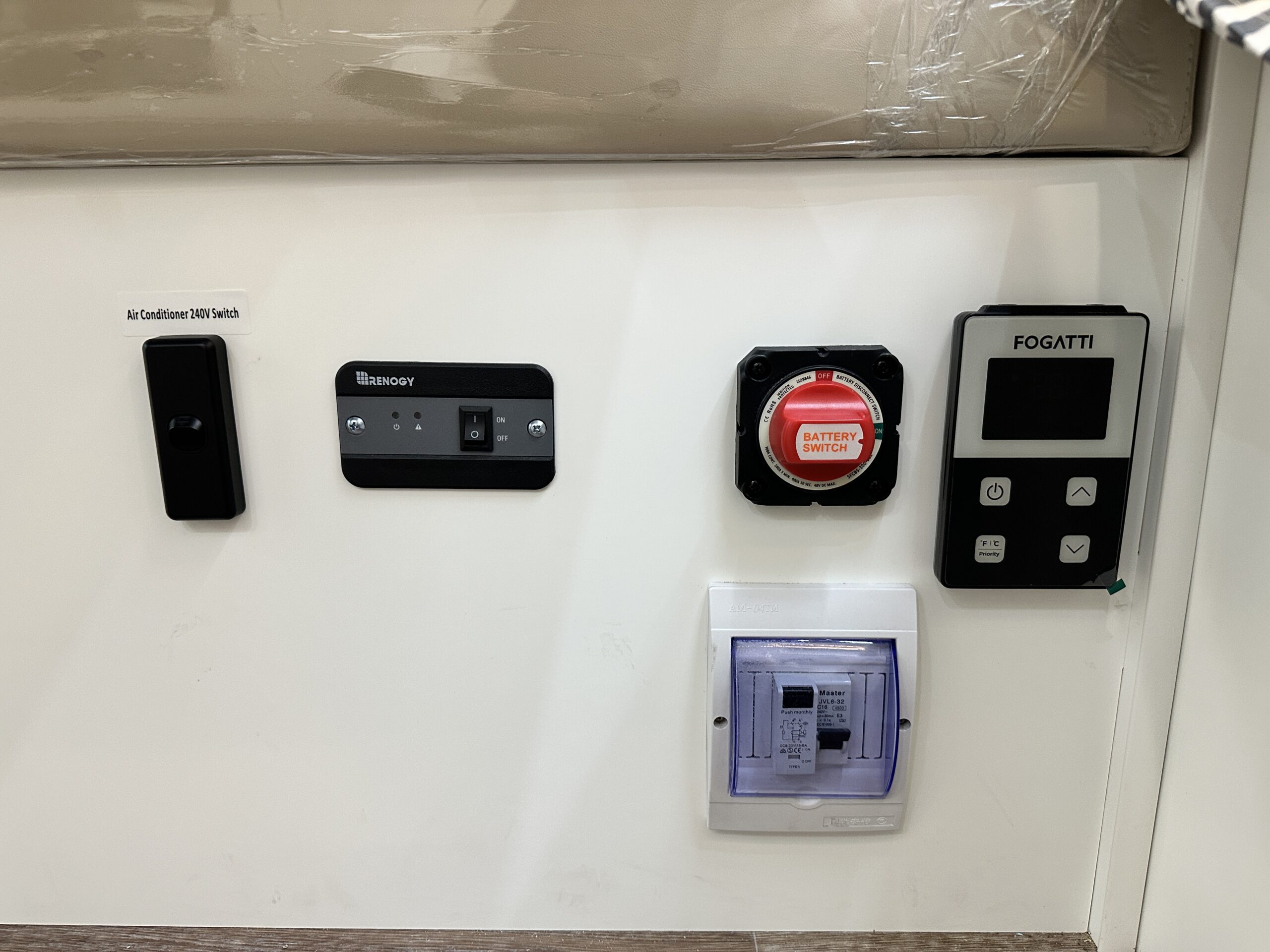

At a glance

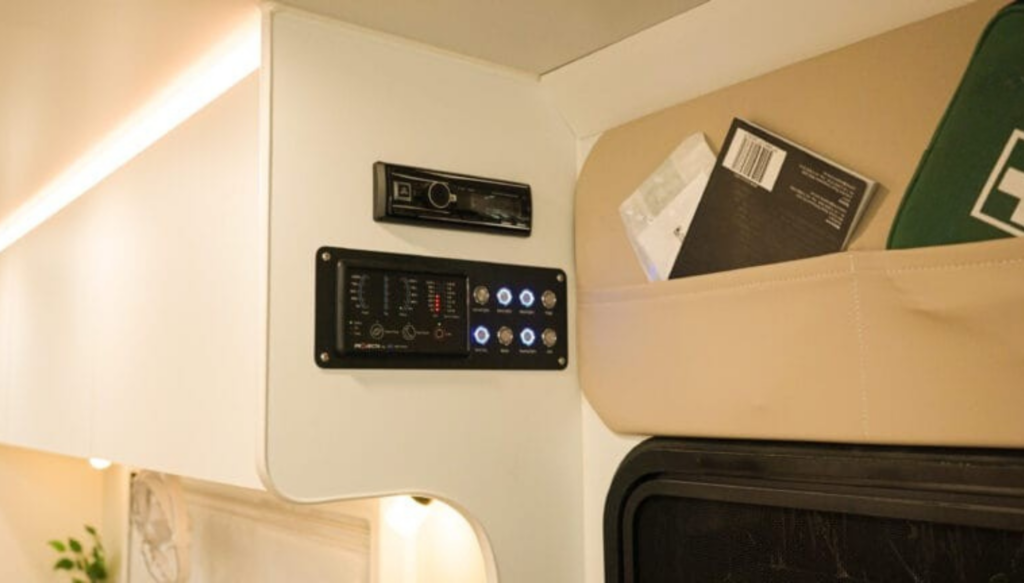

See it simply

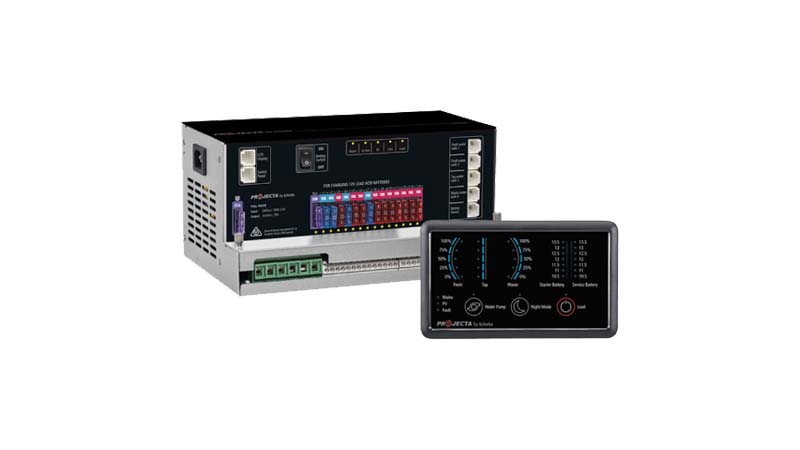

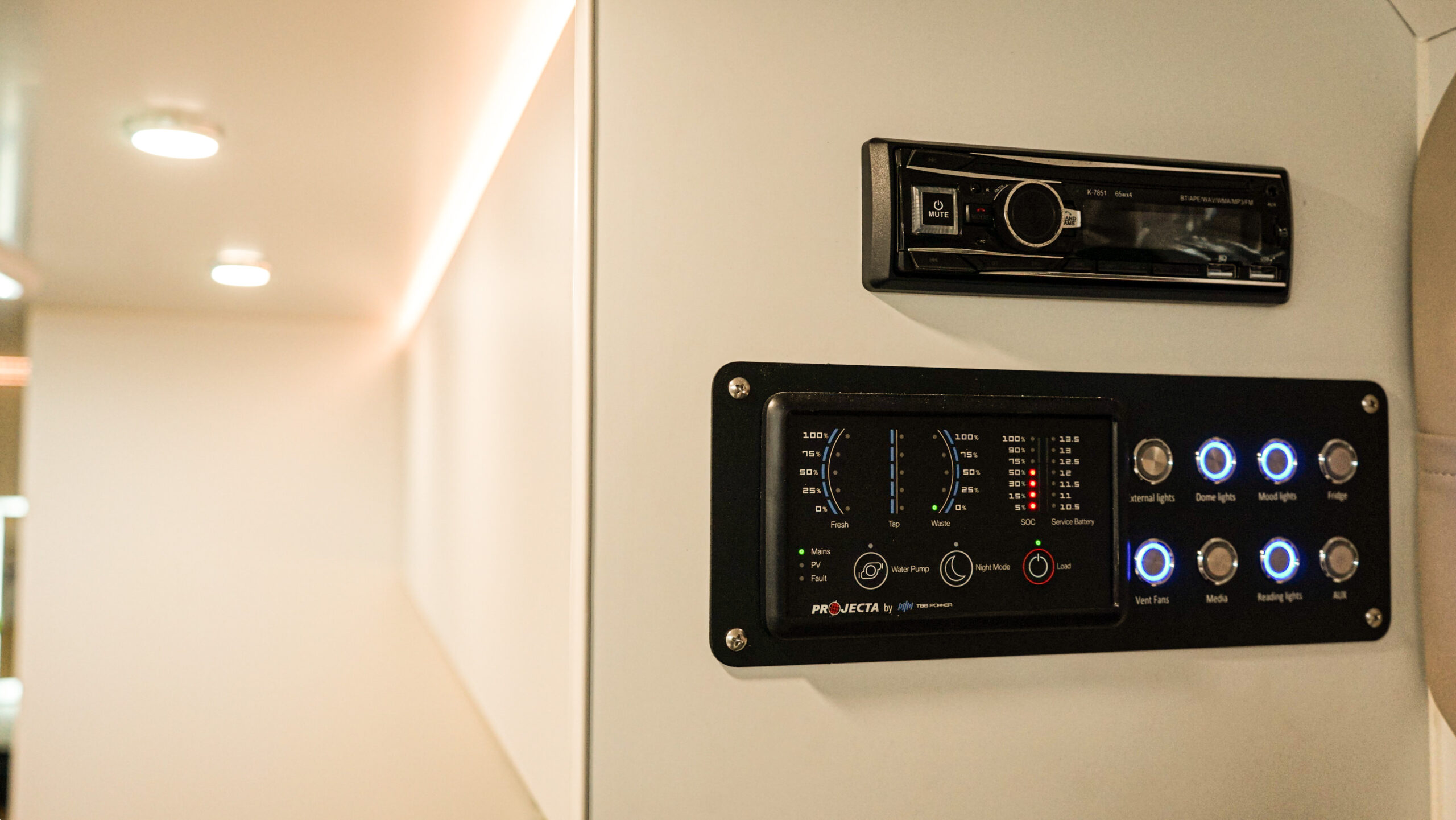

The Projecta PM200 and smart control bring power, water, lights and system status into one clear control point, so you do not need to hunt through cupboards.
Use the space as you live in it
240V and 12V charging are placed at the bed and lounge, with zoned lighting for cooking, reading and getting up after dark.
System duration varies with appliance use, travel pattern and weather.
SEMI OFF-ROAD CAPABILITY
Built for the last stretch.
Built for the highway, the last kilometre and the campsite in between.

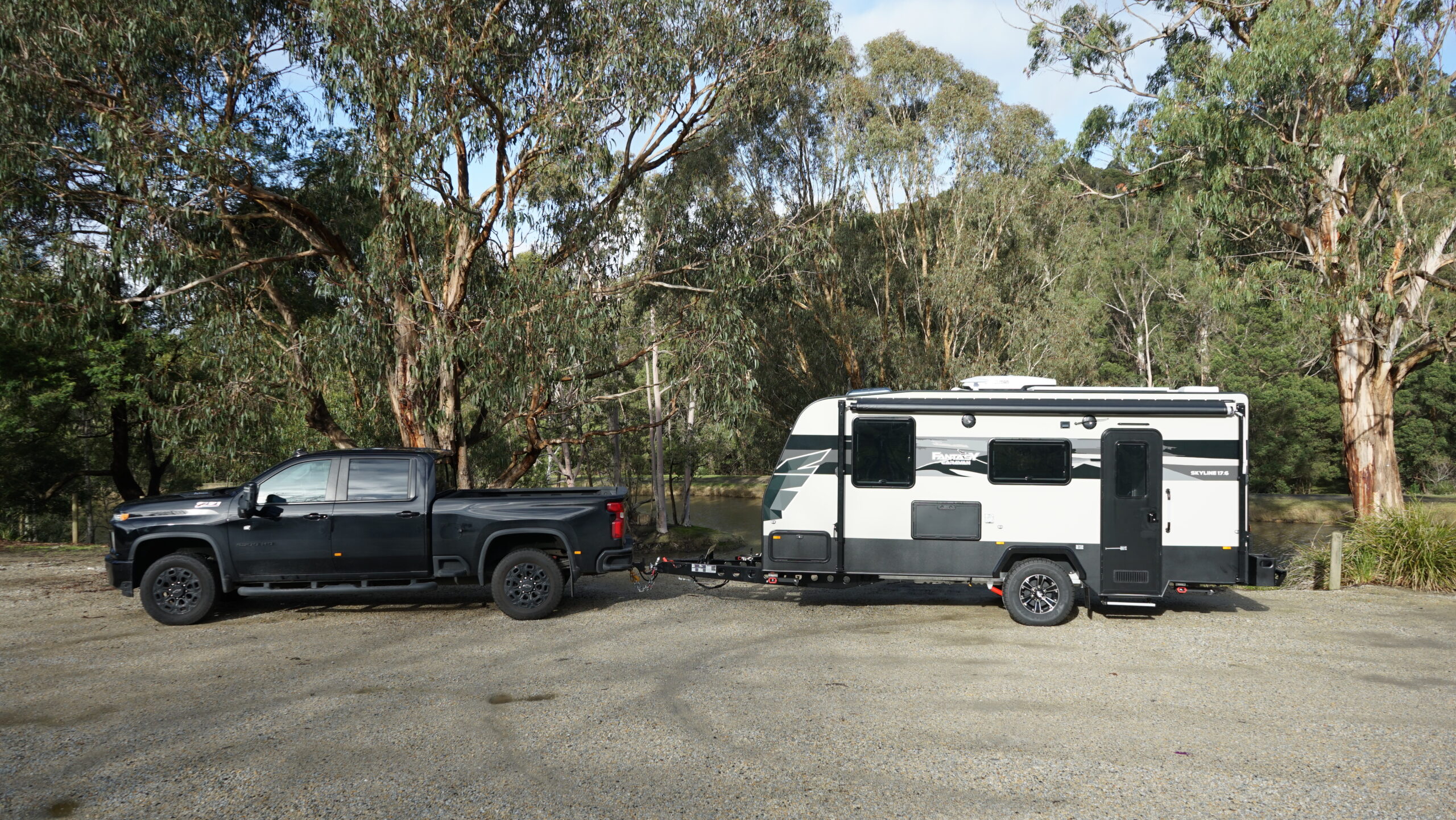

On the highway
Most of your kilometres happen here.

Settled over the long haul
Torsion axle suspension lets the left and right wheels answer the surface more independently, helping the tow stay composed through the kilometres.

Shaped for the long haul
The streamlined exterior helps air move more cleanly around the caravan, supporting a calmer towing feel across long highway days.

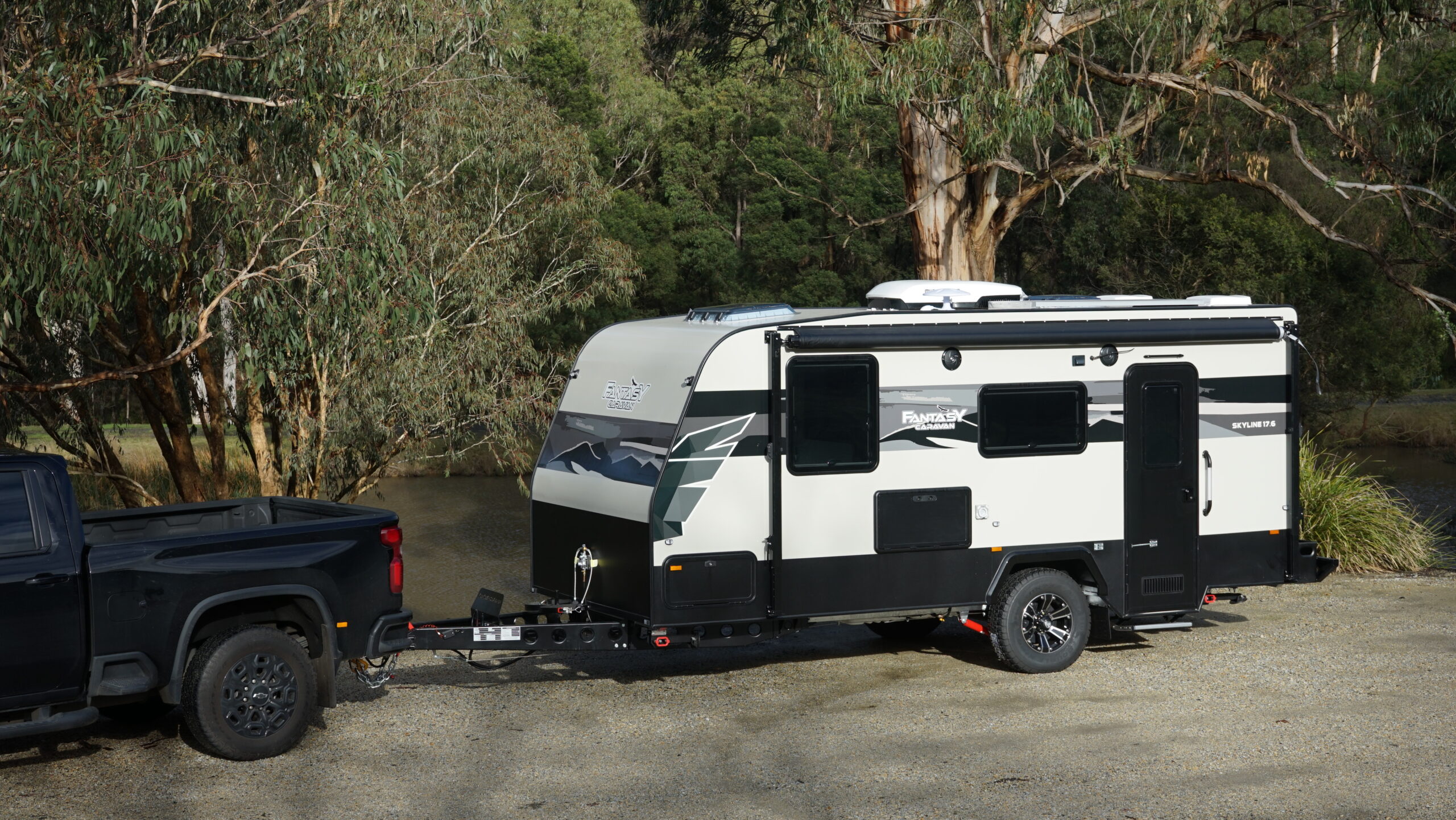

The last kilometre
The road gets rougher. The trip keeps going.

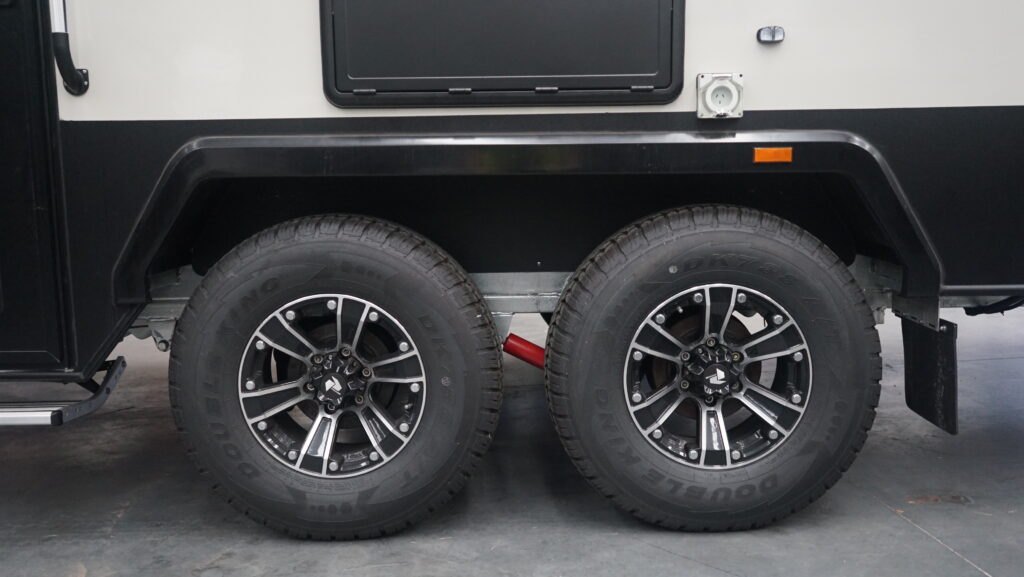

More margin for the last kilometre

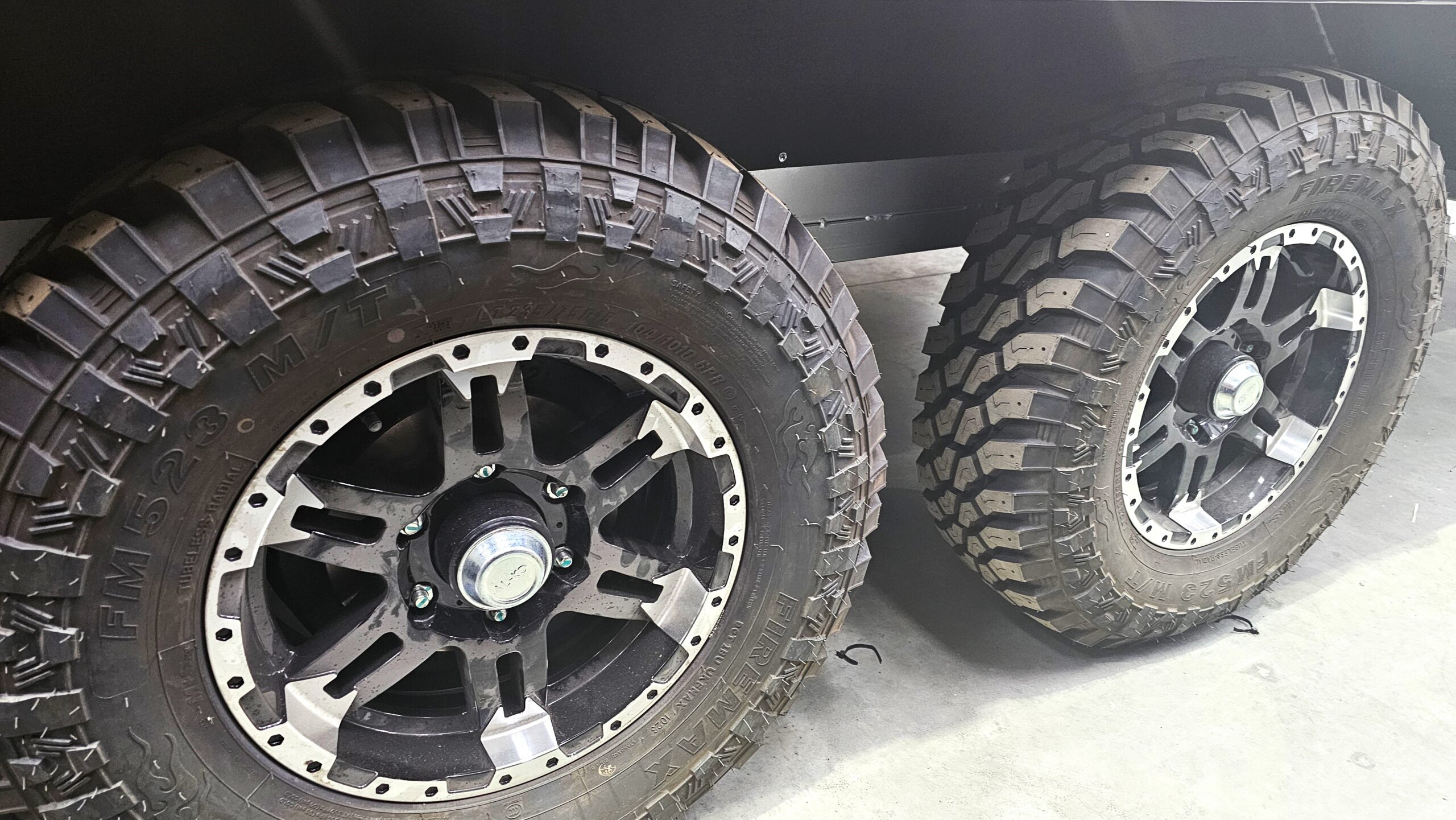

A 2.5-inch lift and 16-inch AT tyres give more clearance and grip margin for ruts, uneven entries and maintained gravel access roads.

Control when the surface turns rough
Axle shock absorbers help control repeated corrugations, so the van tracks more steadily when the road stops being smooth.
At the site
Tired, late, and still in control.

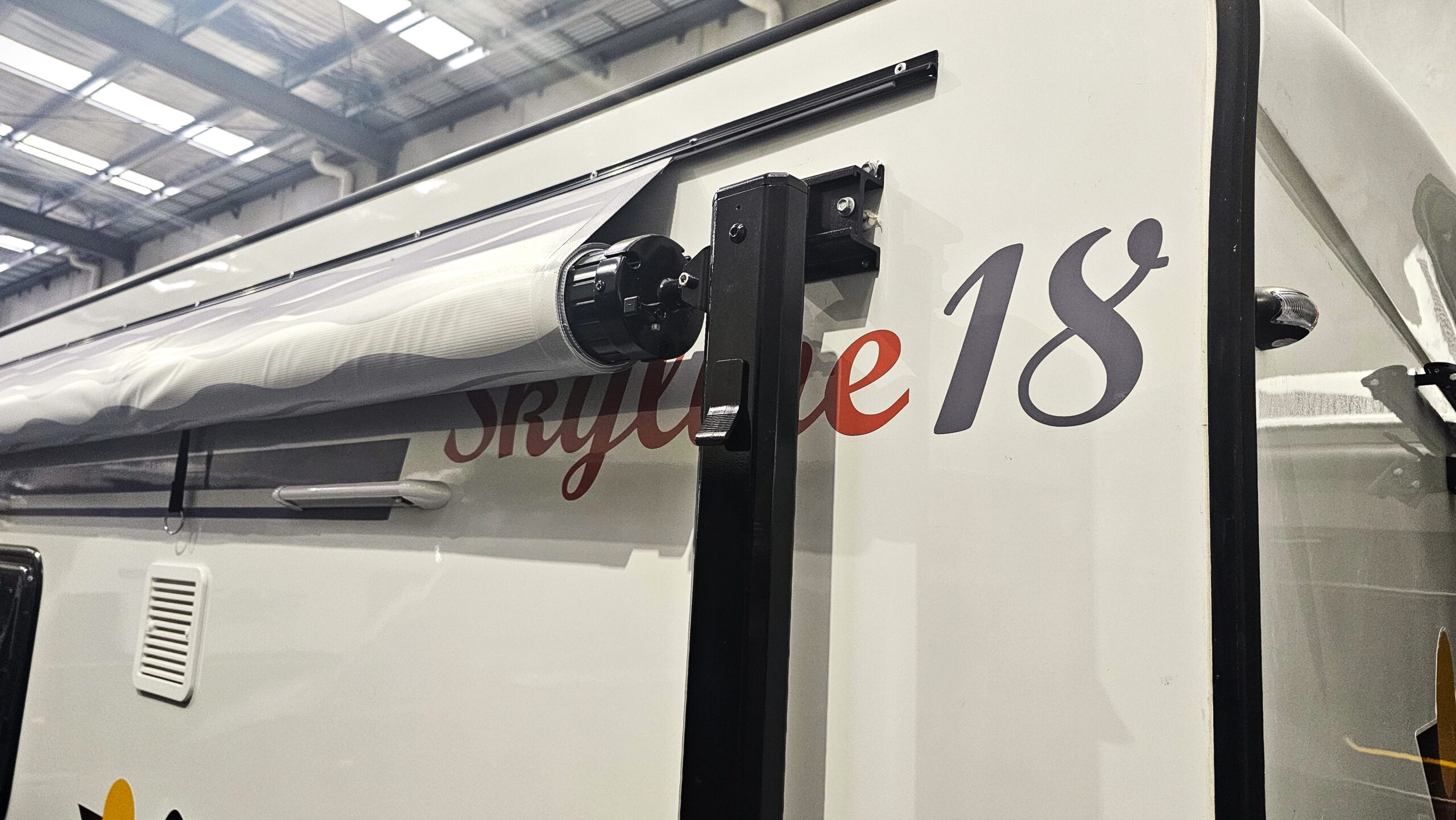

Shade, ready when you are
Open the awning, set down a chair and make the space outside feel like part of camp within minutes.

A clear view when you reverse
A rear camera gives you a clearer view of an unfamiliar site, so backing in does not depend on someone standing behind the van.
Use depends on the selected model, load, tow vehicle and road conditions.
WHAT STAYS WITH YOU
Go further. Come back confident.
One touring system above the wheels and underneath them, ready for the last stretch and the years after it.

01
A true sandwich-panel body
A timberless sandwich-panel wall system pairs a fibreglass outer skin, XPS insulation and aluminium framing – bringing exterior finish, insulation and structural support together in one body system. Heat-resistant gelcoat and resin help the exterior stay composed under long summer sun.

02
A foundation made to go further
An upgraded box-section chassis and single-piece Q550 drawbar carry the loads where they concentrate. Selective lightening keeps unnecessary mass out, while hot-dip galvanising and a black coating protect the structure underneath.

MAKE IT YOURS
Build your own Skyline.
Choose your model, layout, interior colour, battery and options in our build tool, and get a live build price as you go.
LIVING WITH IT
The small stuff you notice every single day.
Small details that make arrival, setup and everyday living easier.

Unlock
One key, less to carry
Every exterior hatch except the water filler works from the same key, so the simple jobs stay simple.

Set up

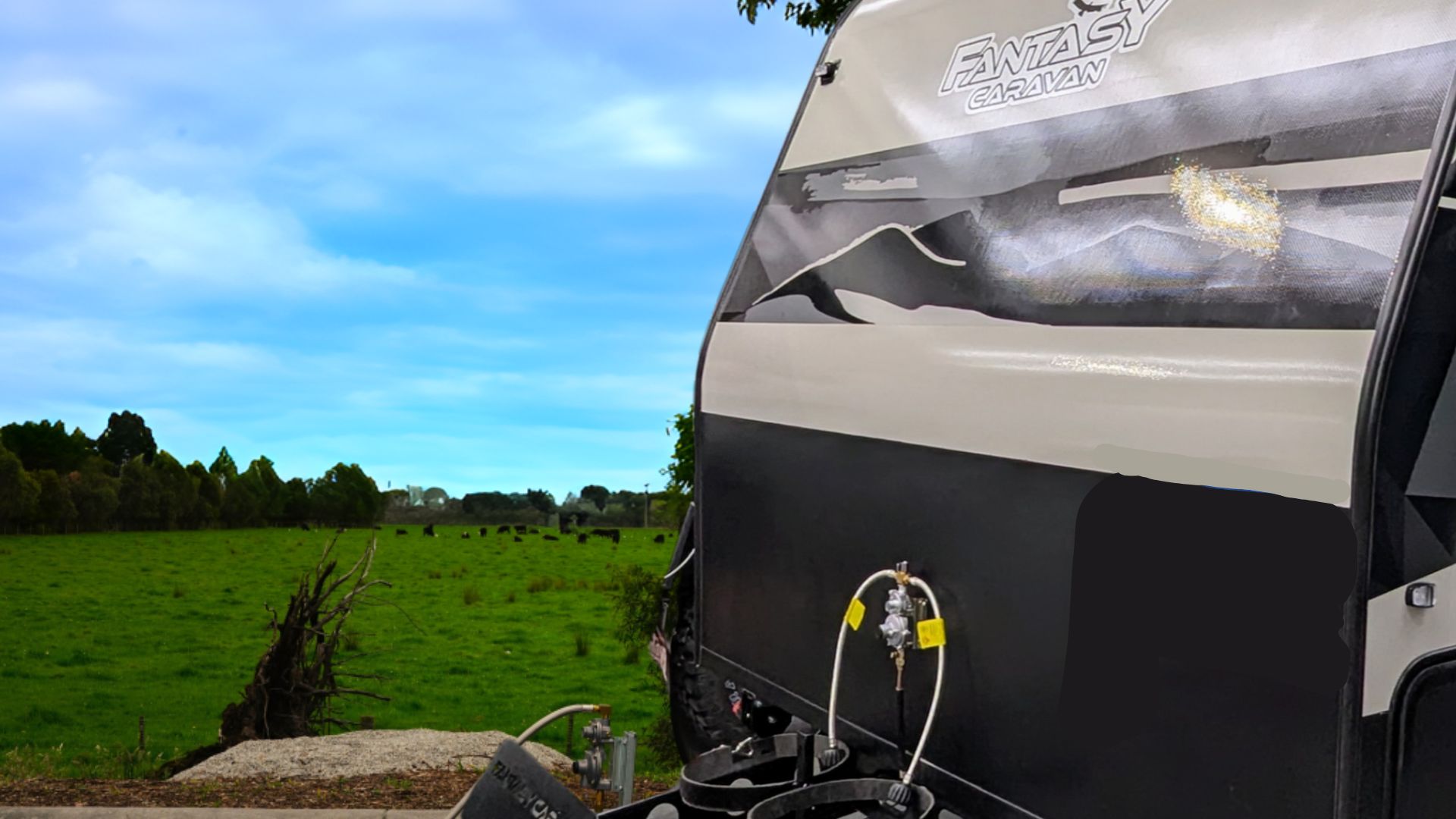

Connections where setup happens
The 15A inlet with RCD, second bayonet gas point and front tap are grouped where setup actually happens – rather than scattered around the van.

Carry

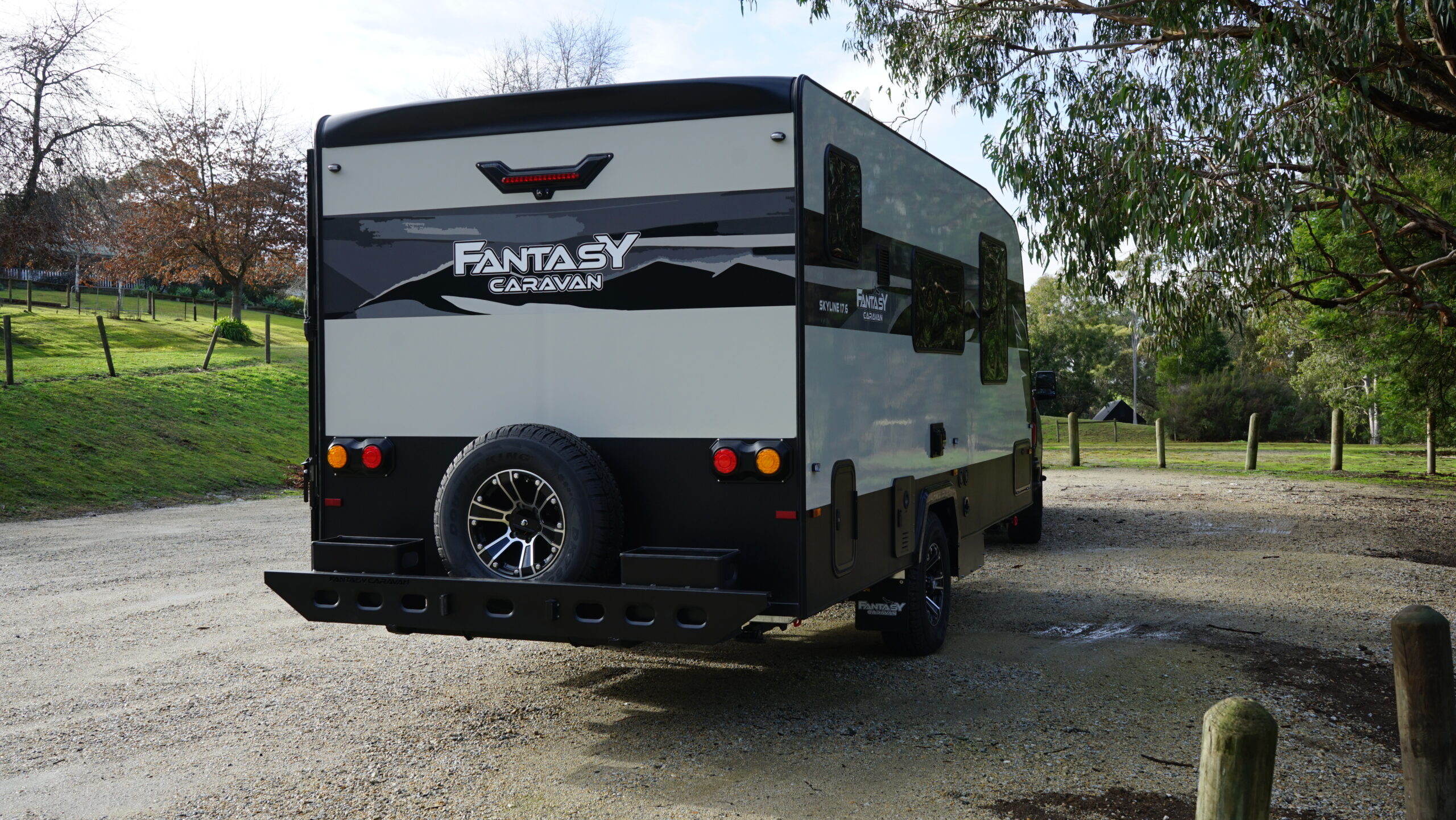

Extra range at the rear

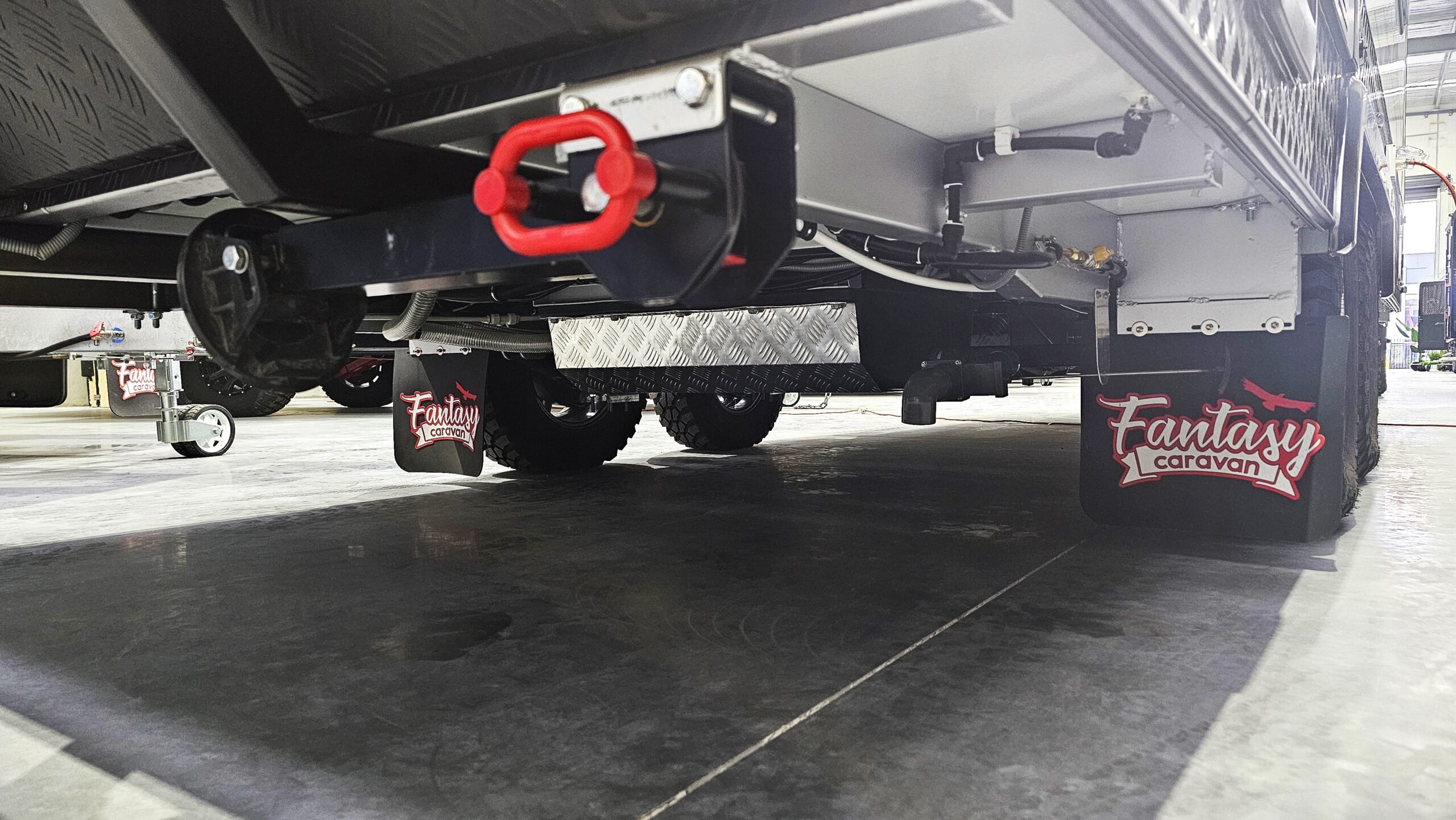

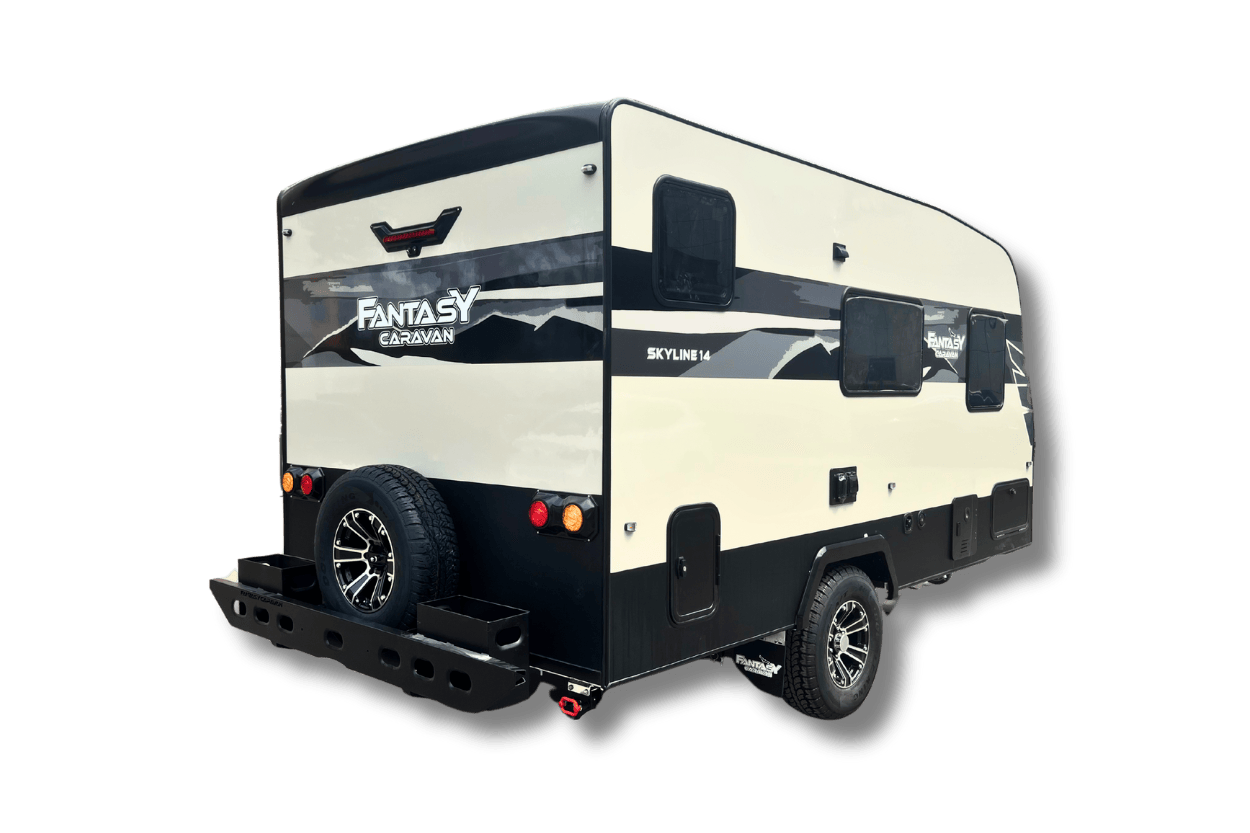

Two rear jerry-can positions on applicable models keep fuel or extra water outside the living space and ready between refills.

Support
Support where the ground is uneven
The 8-inch jockey wheel makes it easier to move, position and support the front on soft or uneven campsite ground.

Settle
Arrive and settle in sooner
The everyday layout keeps the first jobs after arrival simple, so the living space starts working before the evening gets away from you.
BEFORE YOU ASK
Straight answers.
The questions people actually put to us on the showroom floor.
Who is the Skyline actually for?
Couples and families who want a caravan they can live in properly and still take down a gravel road — without buying an expedition rig for the two weekends a year it would matter. It suits first-time full-caravan buyers, people upgrading from an older van, and camper trailer owners who are done with setup.
Is it a semi off-road caravan?
Yes, in the honest sense of the word: sealed roads, maintained gravel access and short-to-medium off-grid stops — not hardcore off-road or expedition use. The difference from an on-road-only caravan shows up in the suspension and tyres, how the underbody copes with stones, and how well the body is sealed against dust and water; a full off-road build goes further again, at a real cost in weight and towing capacity. Skyline is built for the middle deliberately: torsion axle suspension and all-terrain tyres for the corrugations, a sealed composite body for the dust and stone chips. What any individual van handles still depends on the model, the load, the tow vehicle and the road on the day, and we would rather say that here than have you find out somewhere remote.
Will my vehicle tow it?
The shorter Skyline models sit on a 2,500 kg ATM, which keeps them inside the towing capacity of a wider range of vehicles than the 3,000 kg models. Towing capacity on its own does not settle it, though — your combination has to stay legal on three numbers at once: braked towing capacity compared against the van’s ATM (not its Tare, which is the van empty), towball download (the weight pressing down on the ball, which your vehicle and towbar each have their own limit for), and your vehicle’s own GVM and GCM, which is where otherwise legal-looking combinations come unstuck once the family, fuel and gear are loaded. Every model’s page has its exact ATM, Tare, payload and ball weight — bring your tow vehicle details to a viewing and we will check the match properly.
What is the power system, in plain terms?
It is planned as one system: solar and driving charge the battery, one control screen shows what is happening, and the inverter supplies 240V away from a powered site. See Energy & Control for the full picture. Capacity and components vary by model and version.
How is the body built?
Skyline uses a timberless composite wall system, a sealed exterior and an engineered chassis-and-drawbar structure. See What it is made of for the materials, construction logic and what to inspect at a viewing.
What is standard and what costs extra?

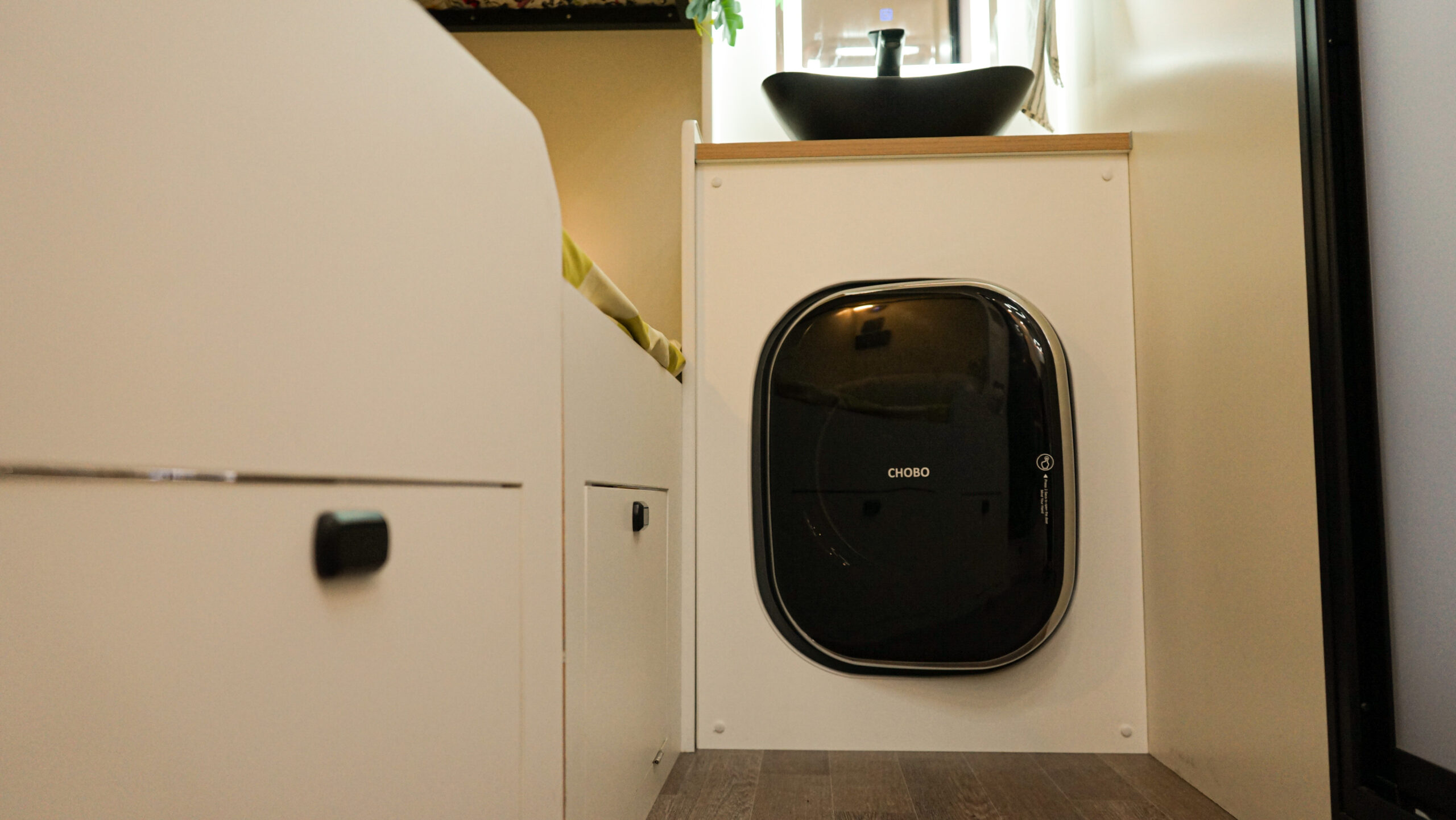

That has to be answered for a specific model and version — a washing machine is standard on most Skyline models — check the current spec for your selected model to confirm whether it’s included. Ask us to confirm the current configuration in writing before you order. It is the single most common source of confusion in this industry and we would rather remove it than inherit it.
How do I know which model is right for us?
Five answers usually get you to two models: who travels, how you want to sleep, whether the bathroom is a priority, what you tow with, and where you plan to go. Bring the tow vehicle details to a viewing and we will work through it properly.
Can I walk on the roof?
No. The roof supports roof-mounted equipment and normal service access, but it is not designed or approved as a walkable surface. Anyone who tells you otherwise about any caravan is doing you no favours.
